To remove

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fuel tank. See FUEL TANK  , TO REMOVE  .
  2. Unplug the connector and disconnect the quick-release coupling from the shut-off valve.

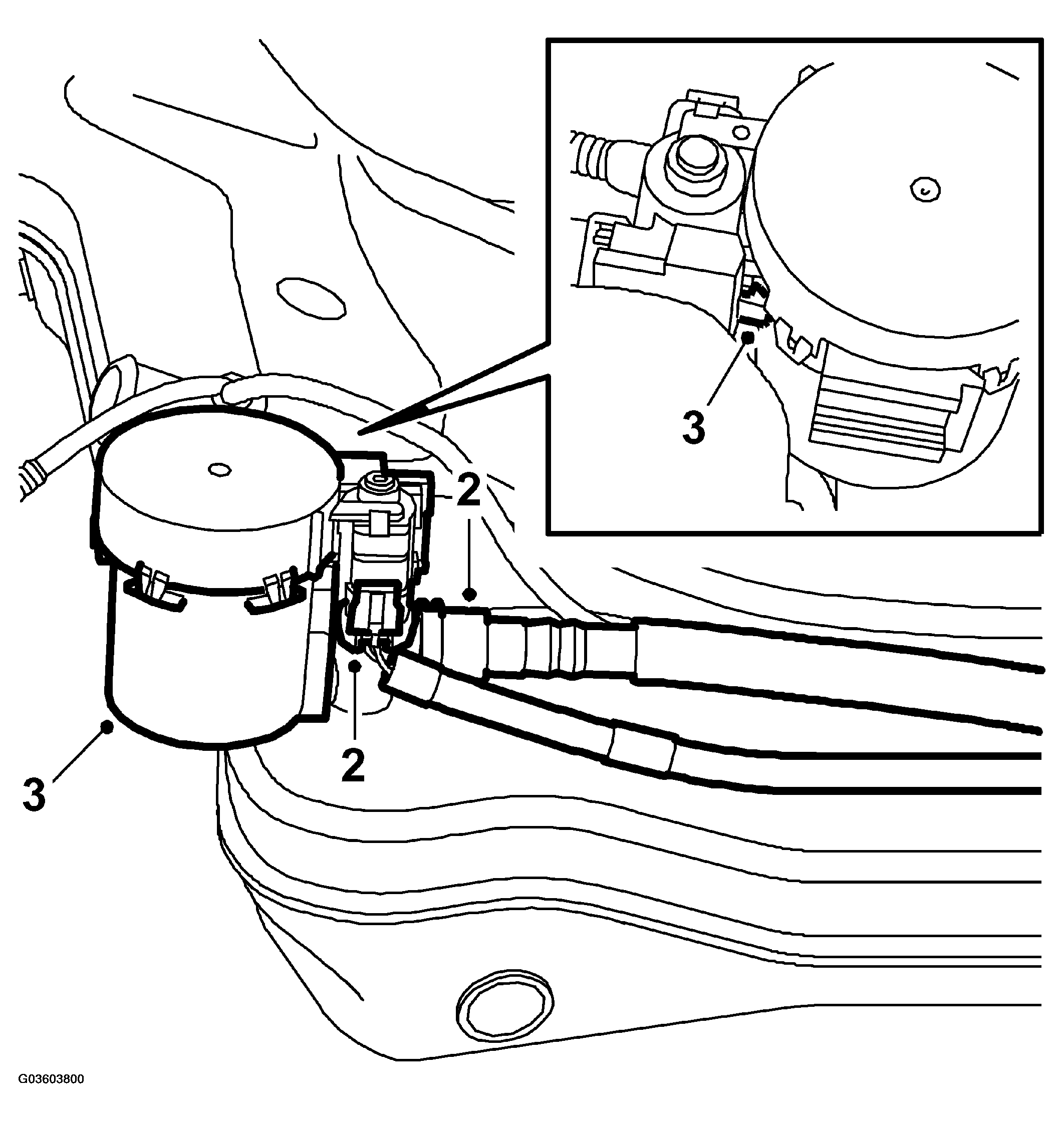

    Fig 1: Disconnecting Quick-Release Coupling From Shut-Off Valve
    G03603800Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Undo the catch and remove the shut-off valve.
