To remove

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fuel tank. See FUEL TANK  , TO REMOVE  .
  2. Disconnect the quick-release couplings from the EVAP emission canister and the purge filter.

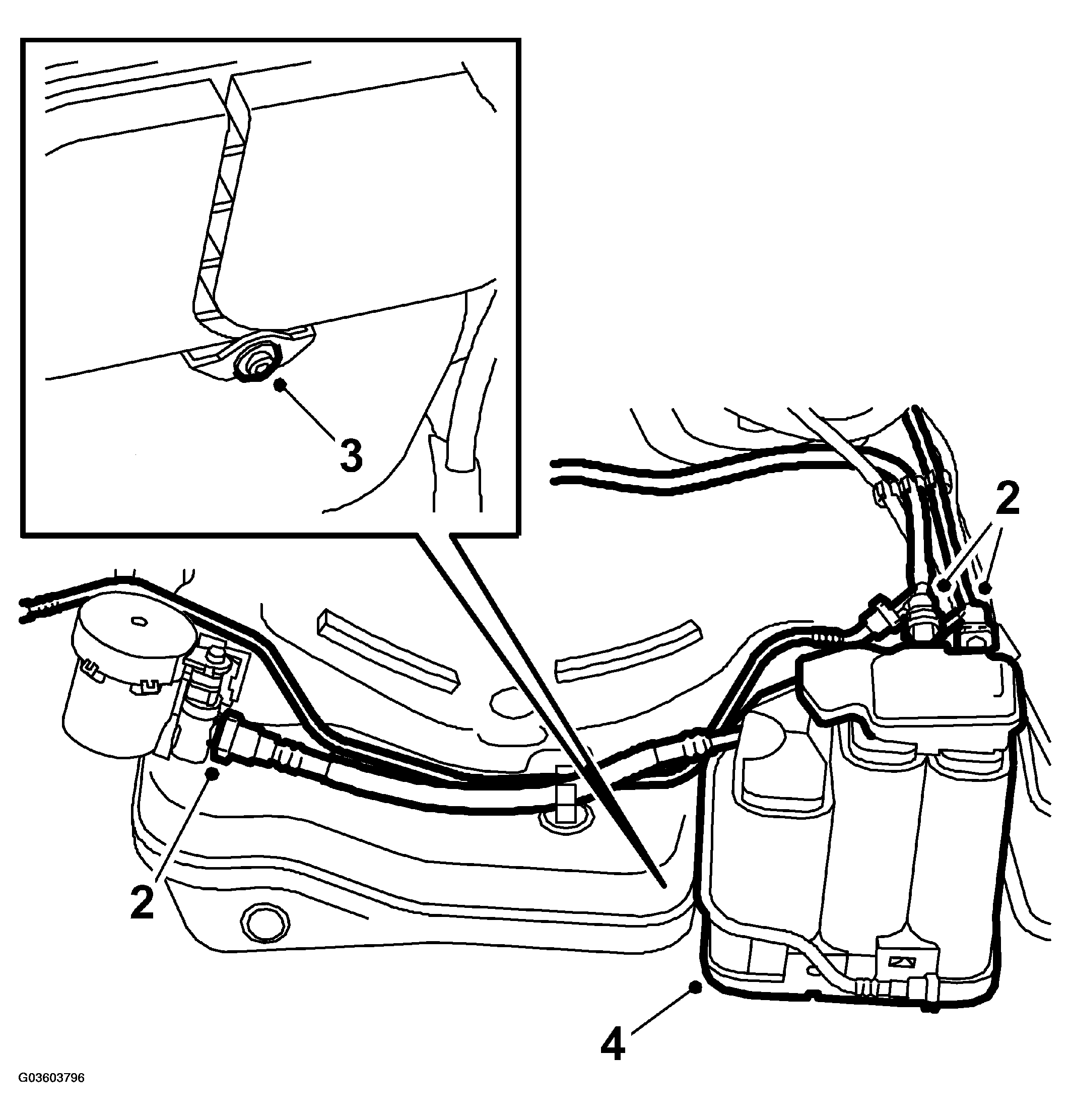

    Fig 1: Removing Fuel Tank
    G03603796Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Remove the bolt securing the EVAP emission canister to the bracket.
  4. Remove the EVAP emission canister from the tank.
