To fit

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit the pressure sensor and plug in the connector.

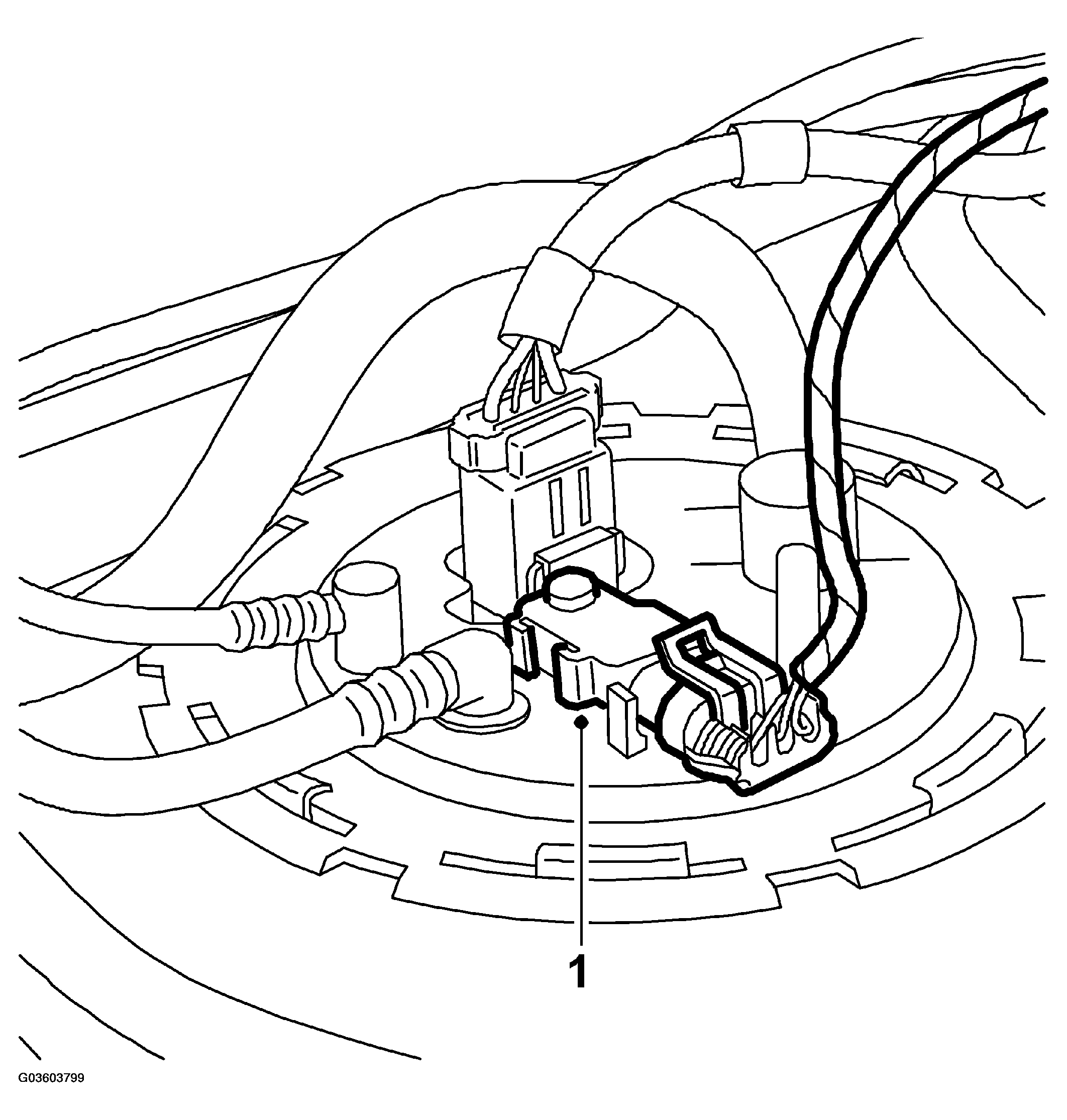

    Fig 1: Fitting Pressure Sensor And Plug In Connector
    G03603799Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fit the fuel tank. See FUEL TANK  , TO FIT  .
