To fit

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit the EVAP emission canister to the tank.

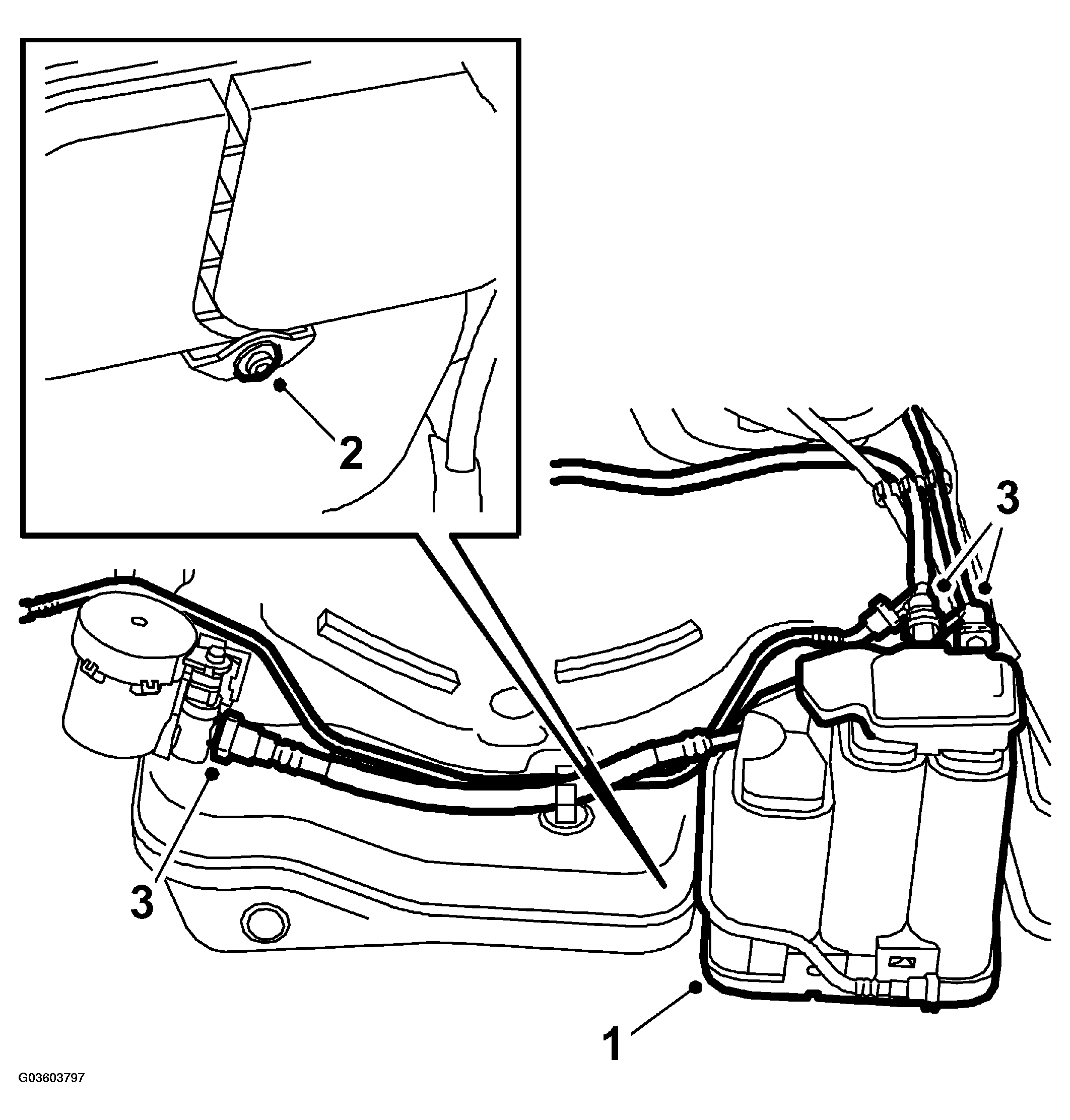

    Fig 1: Removing Bolt Securing EVAP Emission Canister To Bracket
    G03603797Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fit the bolt securing the EVAP emission canister to the bracket.
  3. Connect the quick-release couplings to the EVAP emission canister and the purge filter.
  4. Fit the fuel tank. See FUEL TANK  , TO FIT  .
