To fit

  1. Fit the electronic unit.
  2. Plug in the foils and the connector.
    NOTE: Make sure no cables are pinched.

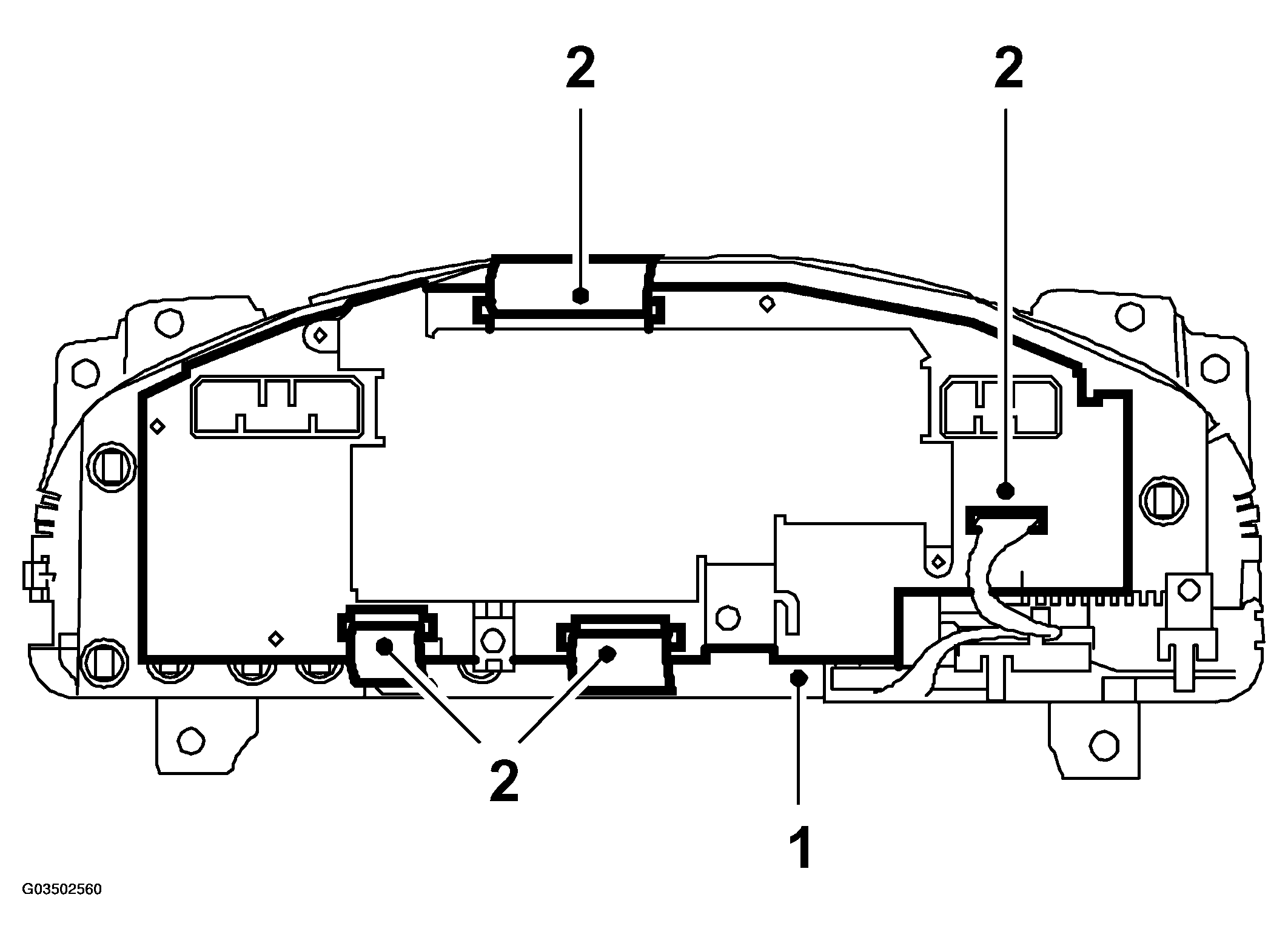

    3. Fig 1: Illustration For Step 1-2
    G03502560Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Fit the electronic unit.
  4. Fit the cover over the electronic unit, eight screws.

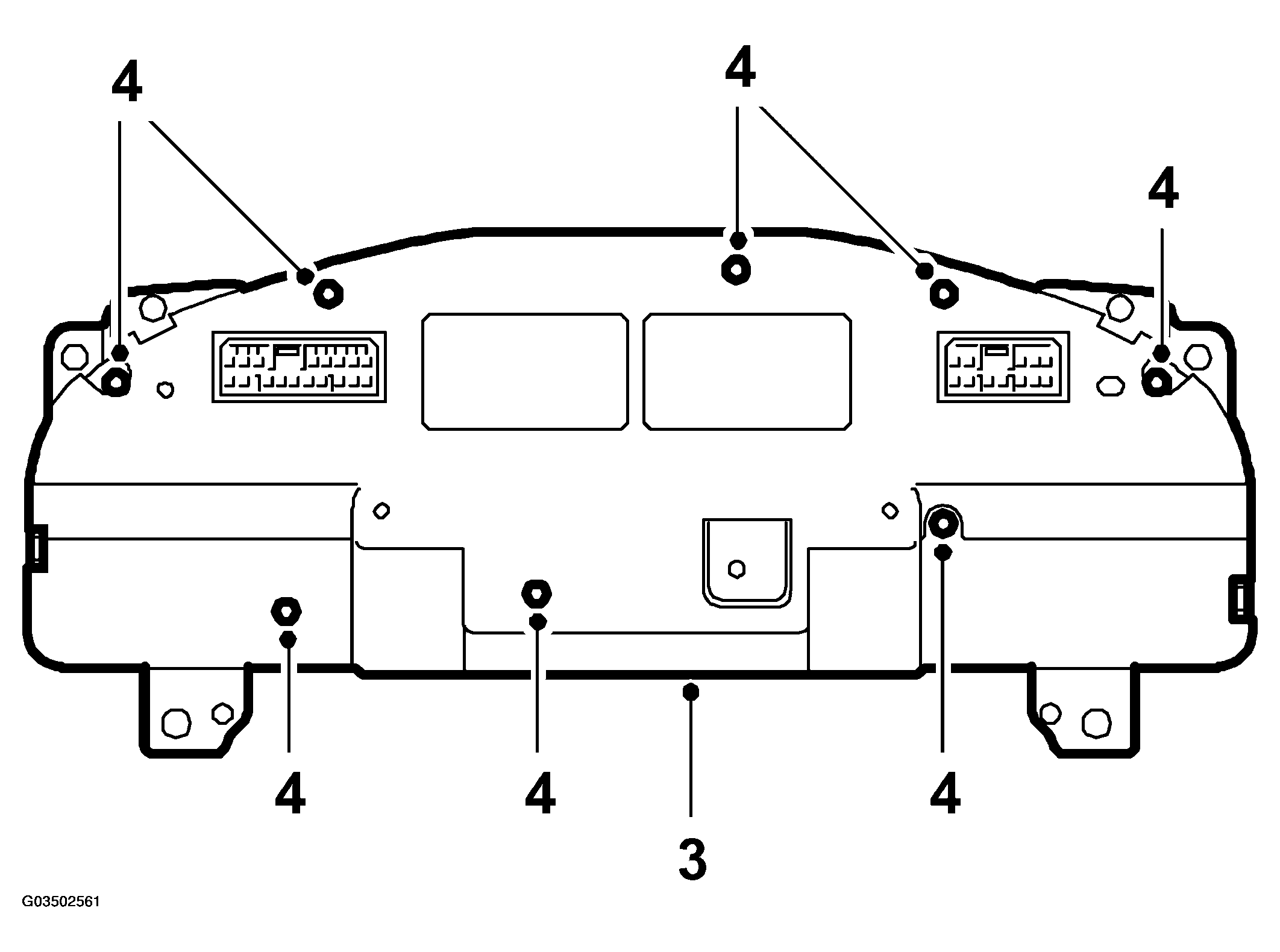

    5. Fig 2: Illustration For Step 3-4
    G03502561Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Fit the main instrument unit, see TO FIT .
