List of components
LIST OF COMPONENTS
| No. | Name, Location Components | Illustration |

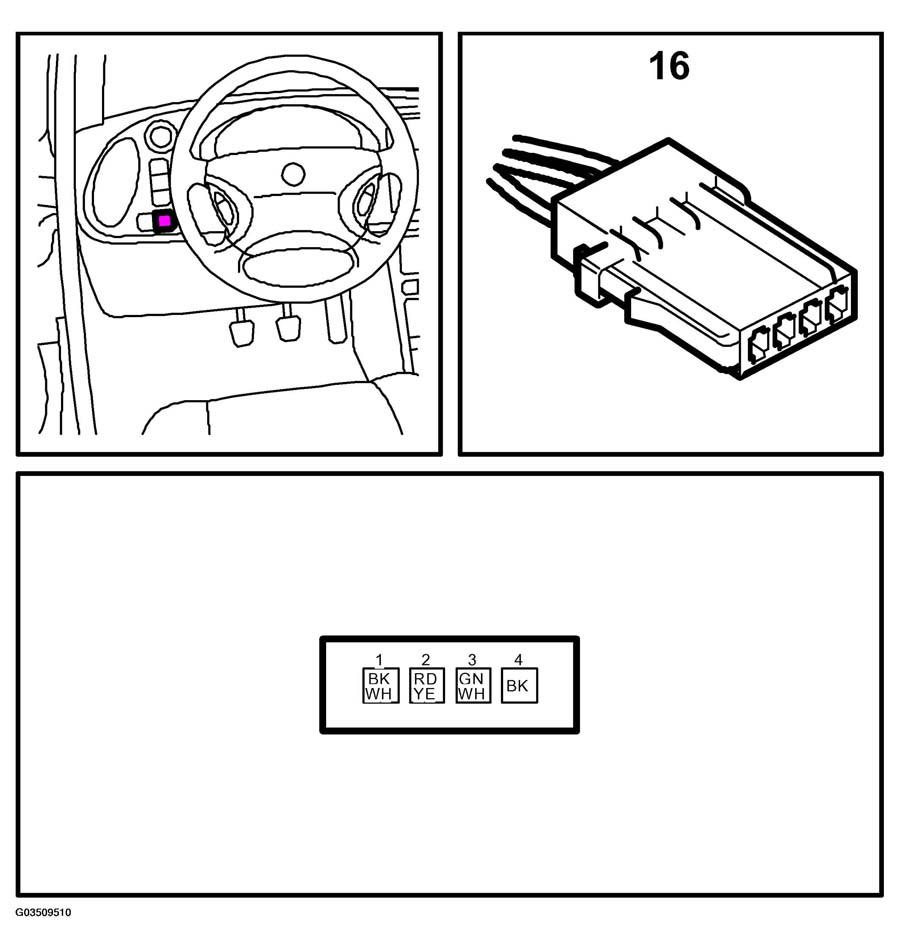

| 16 | Rheostat, instrument lighting, in the switch panel between the steering wheel and the driver's door | Figure |
| 22a | Main fuse board, dashboard, on end of dashboard next to driver's door | FUSE BOARD 22A IN THE DASHBOARD |

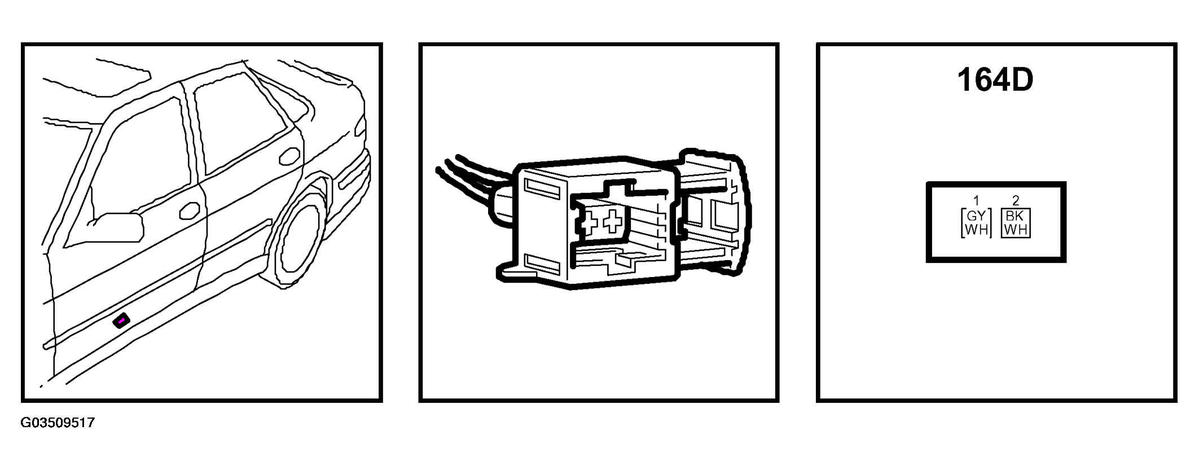

| 164D | Motor, driver's electric window lift, in door | Figure |

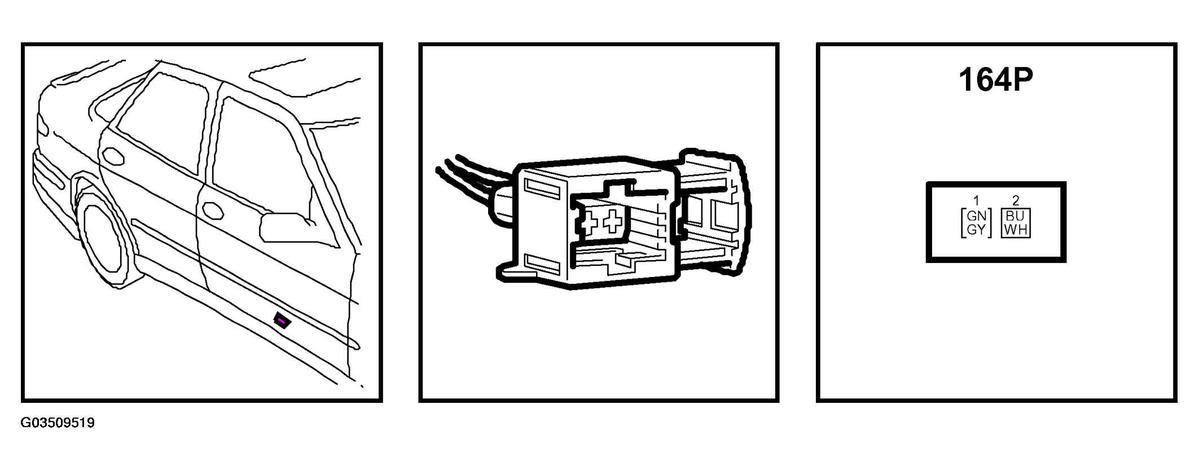

| 164P | Motor, passenger electric window lift, in door | Figure |

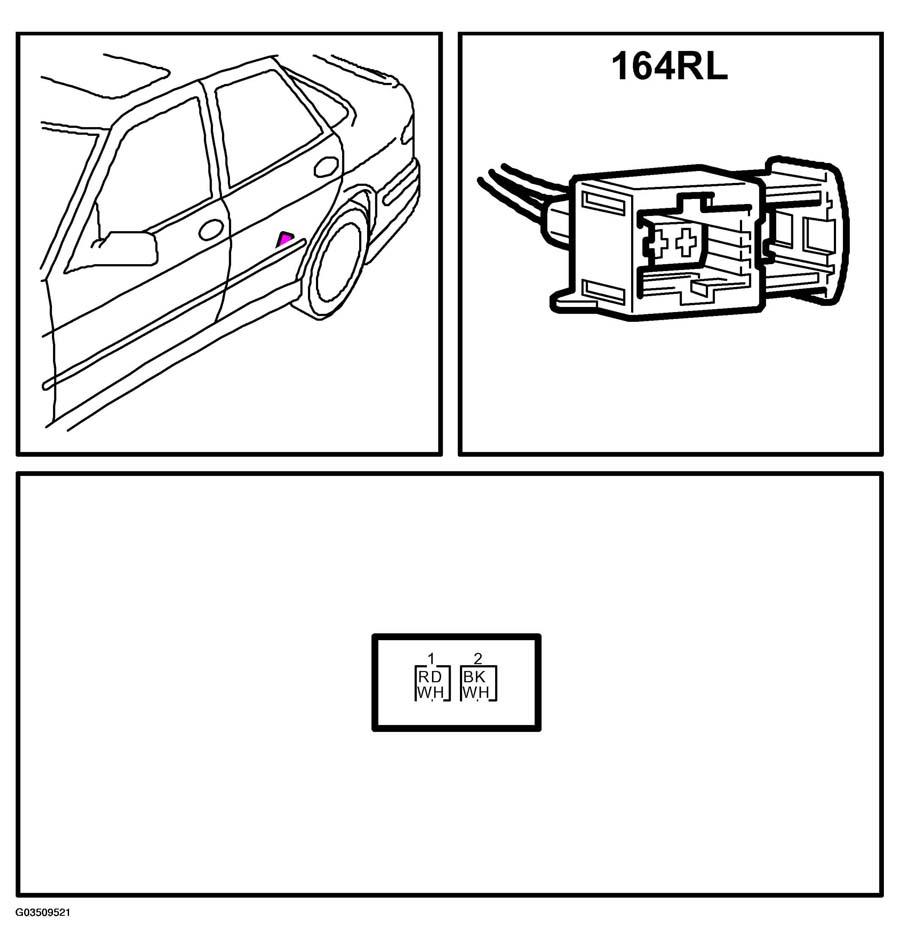

| 164RL | Motor, electric window lift, left rear, in door | Figure |

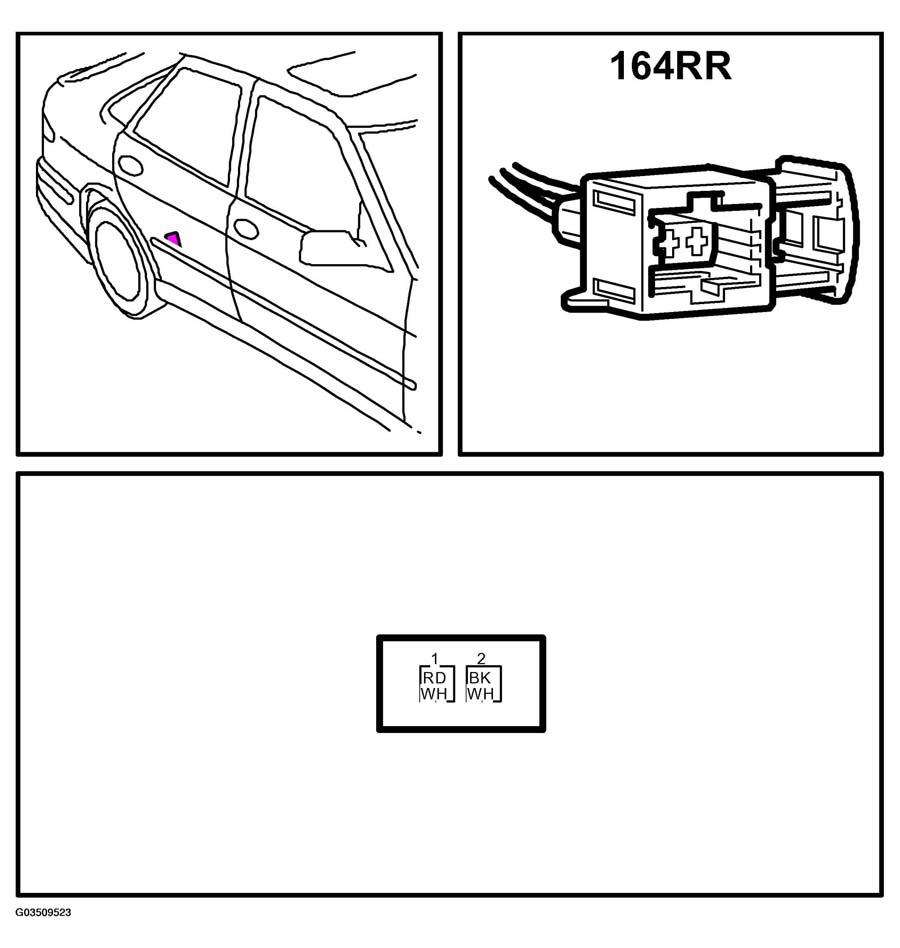

| 164RR | Motor, electric window lift, right rear, in door | Figure |

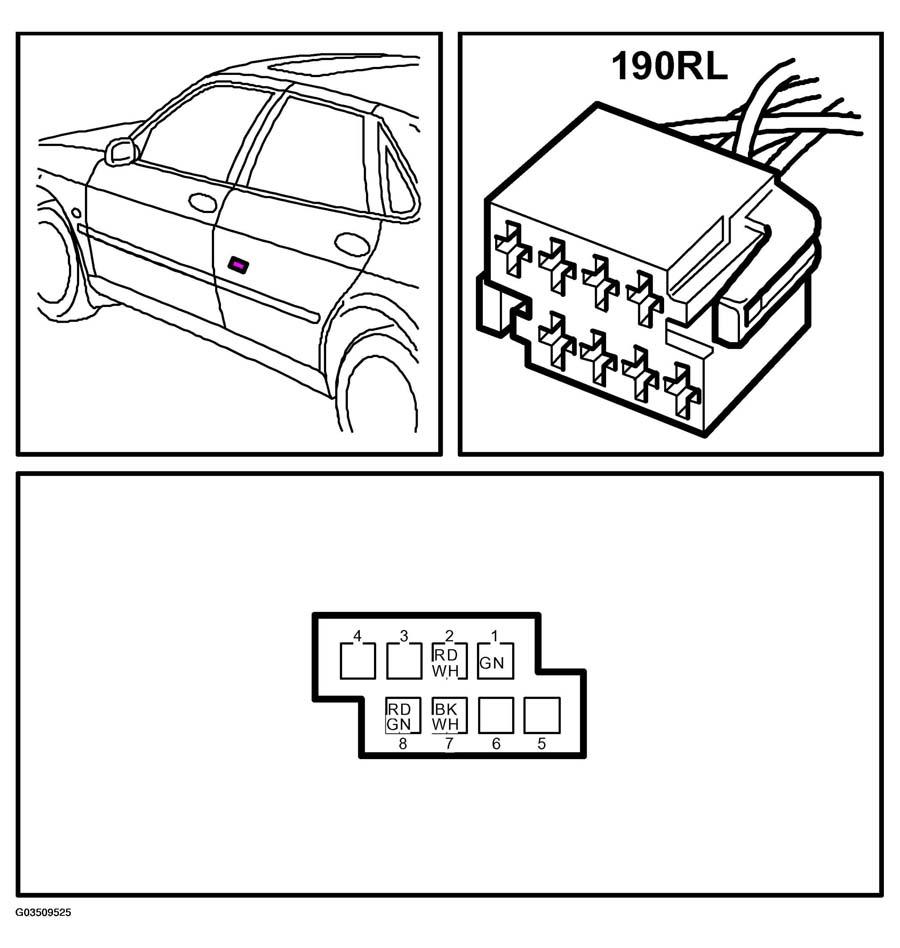

| 190RL | Switch, electric window lift, rear left door, in door | Figure |

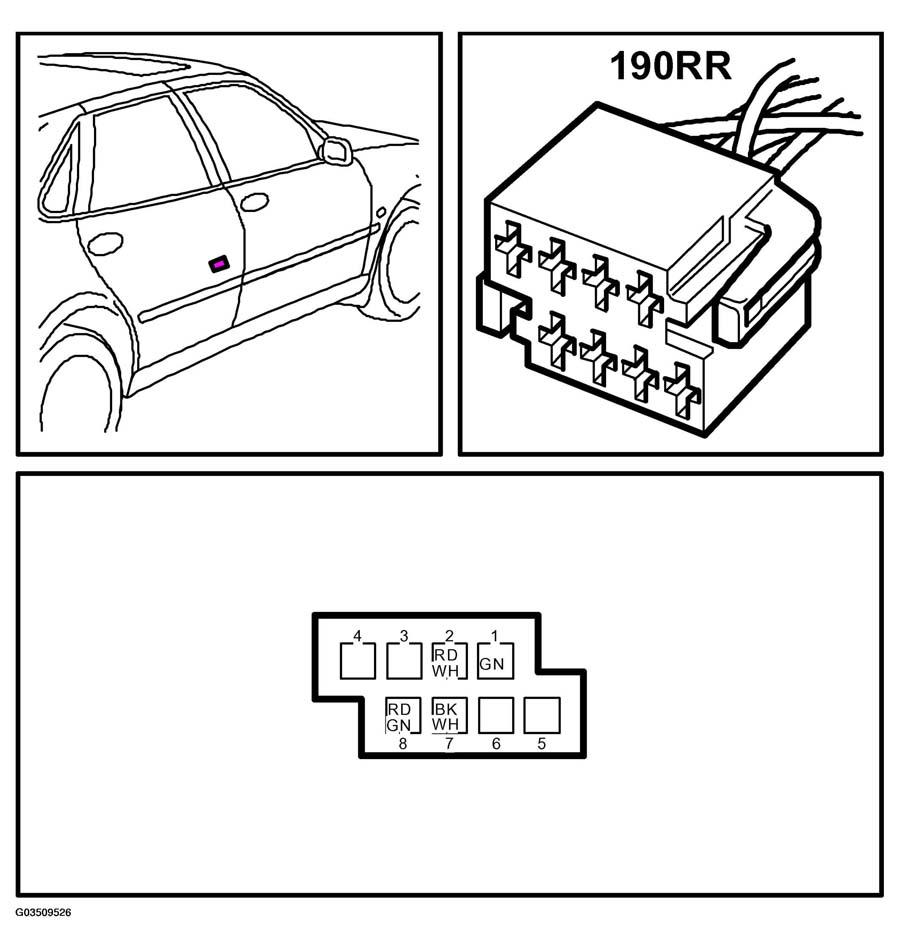

| 190RR | Switch, electric window lift, rear right door, in door | Figure |

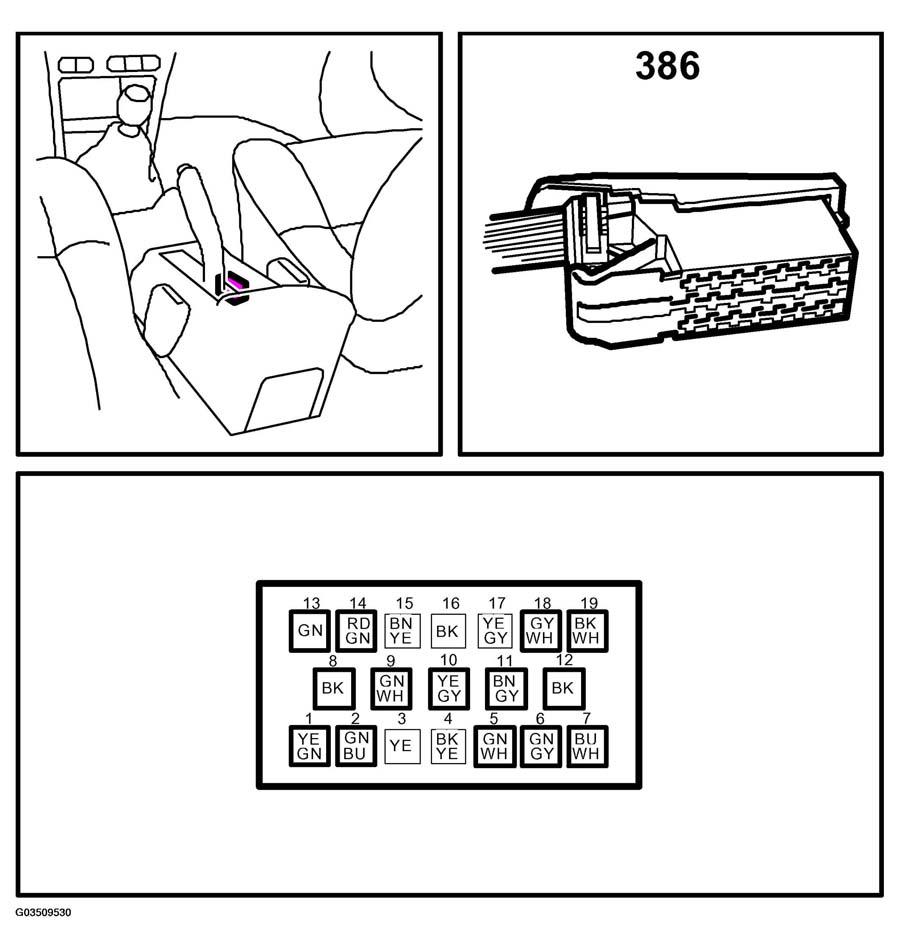

| 386 | Switch panel, electric window lifts/electrically operated sunroof, in floor console between seats | Figure |

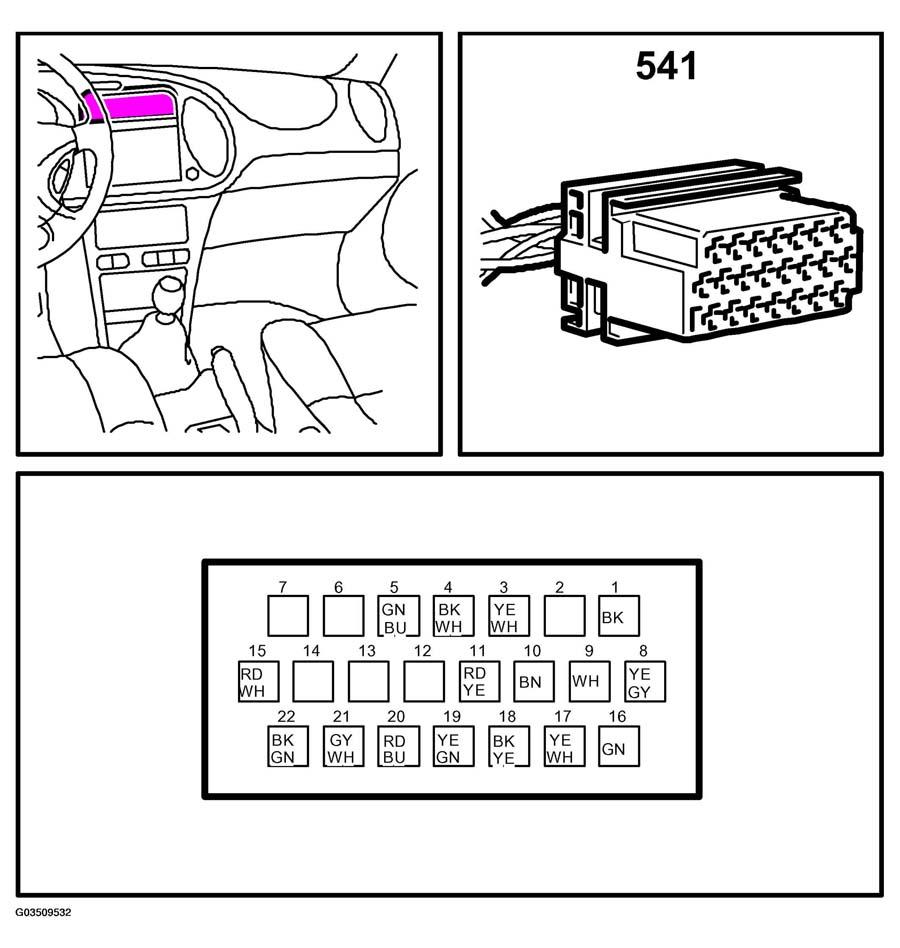

| 541 | SID, in center of dashboard | Figure |

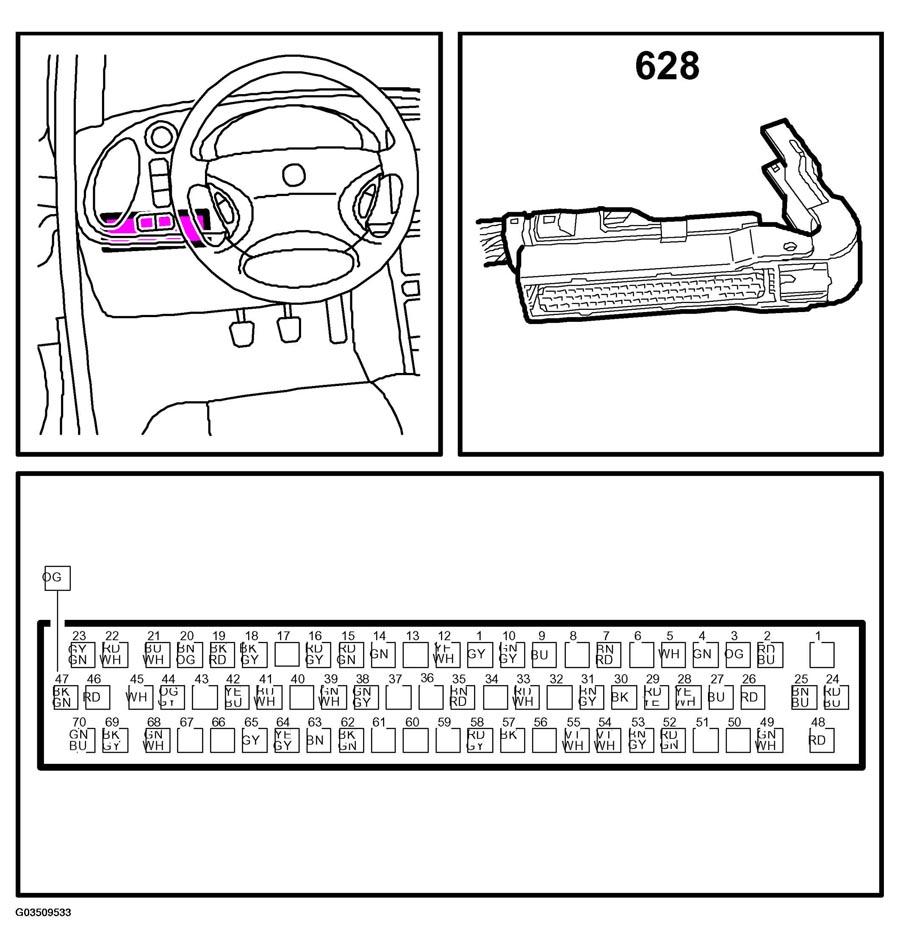

| 628 | Control module, DICE LHD: above dashboard relay box RHD: behind dashboard relay box |
Figure |
| 10-pin connector | ||

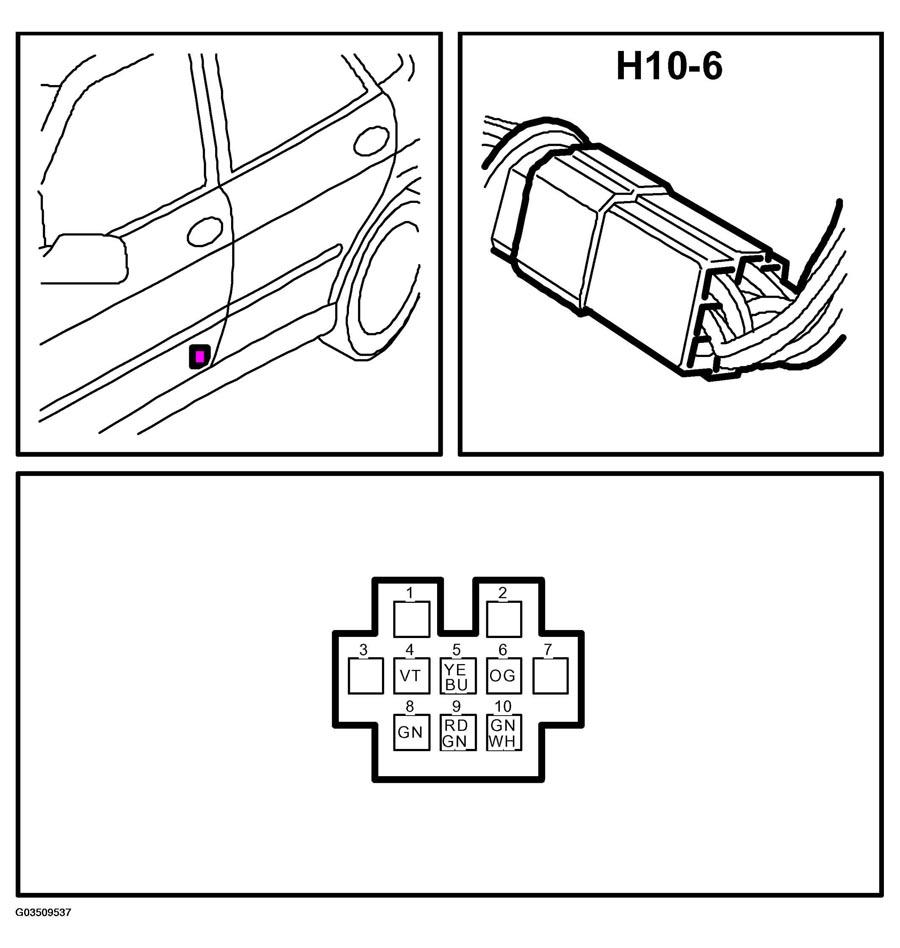

| H10 -6 | In the left-hand B-pillar | Figure |

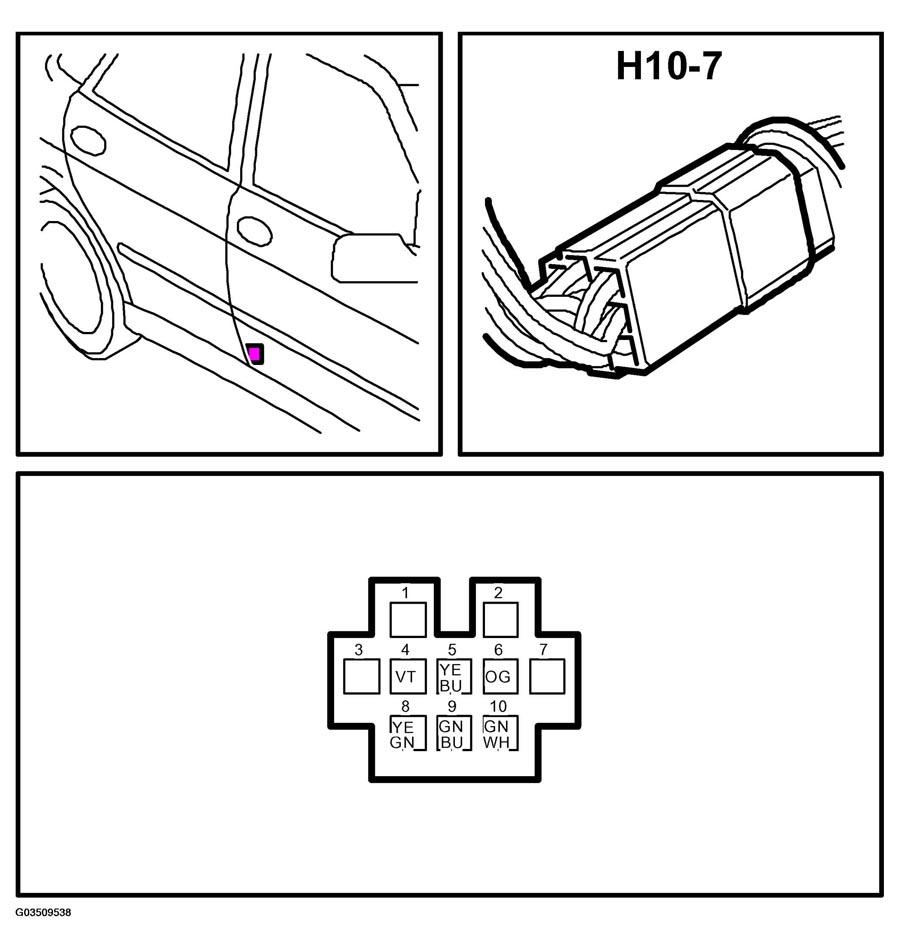

| H10 -7 | In the right-hand B-pillar | Figure |
| 27-pin connector | ||

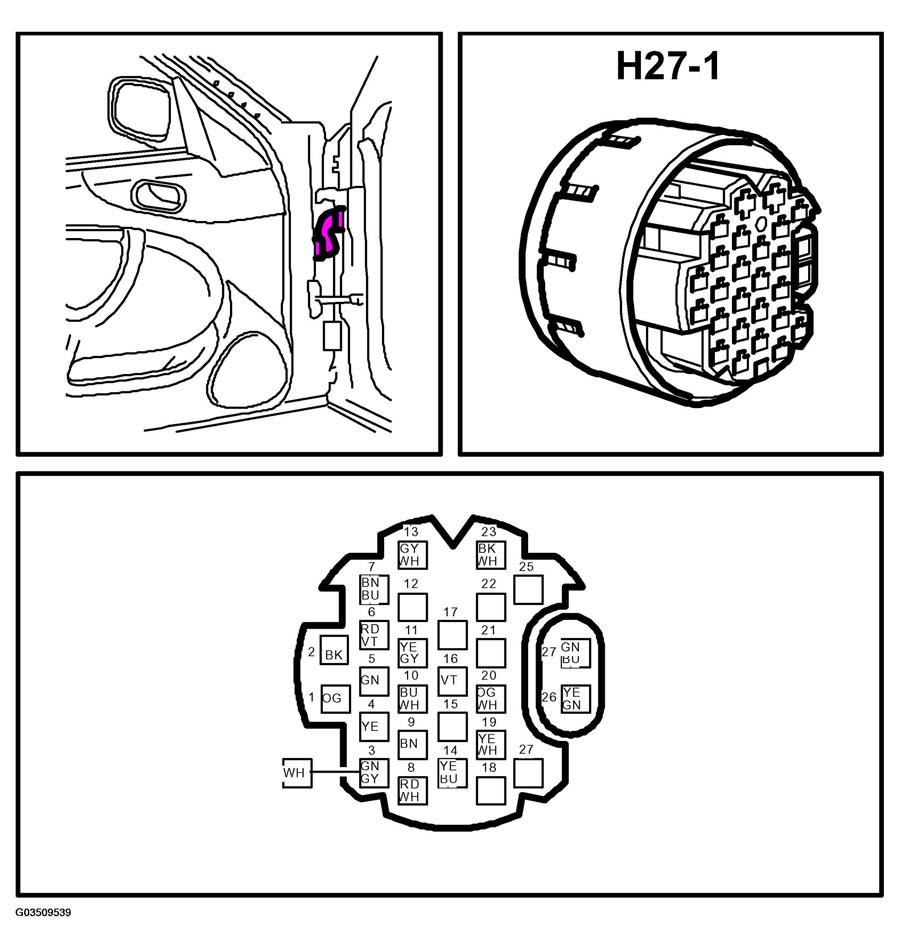

| H27 -1 | Connector driver's door LHD | Figure |

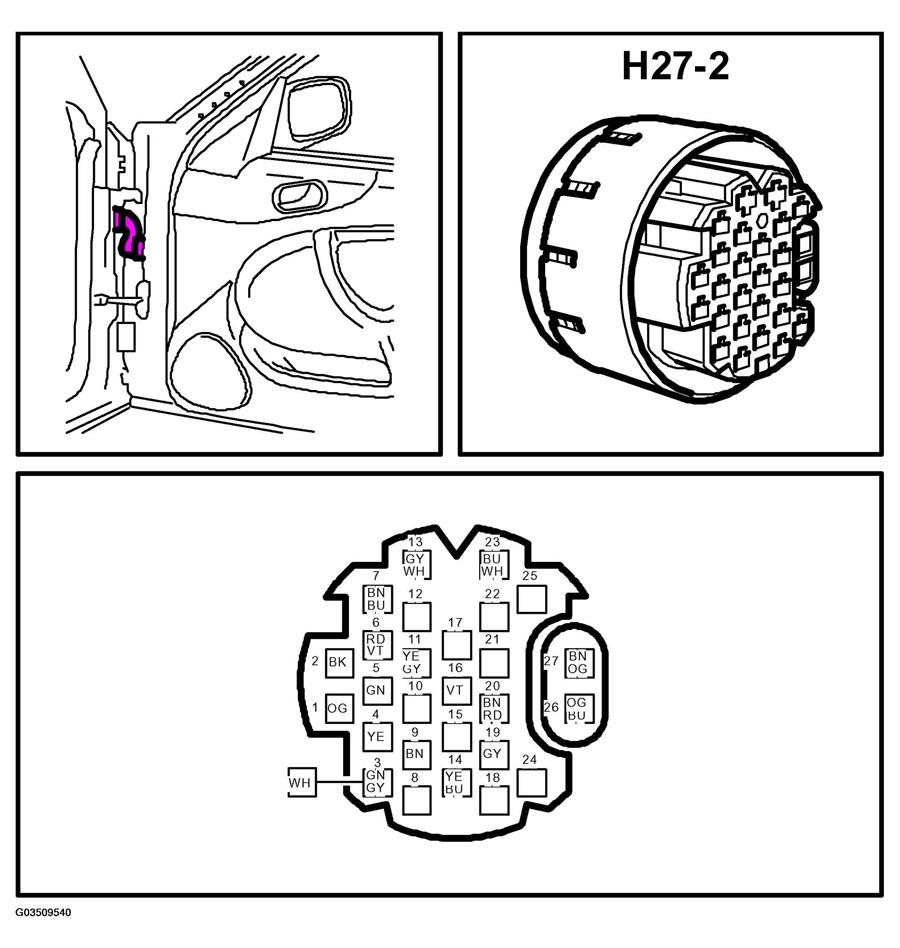

| H27 -2 | Connector passenger door LHD | Figure |

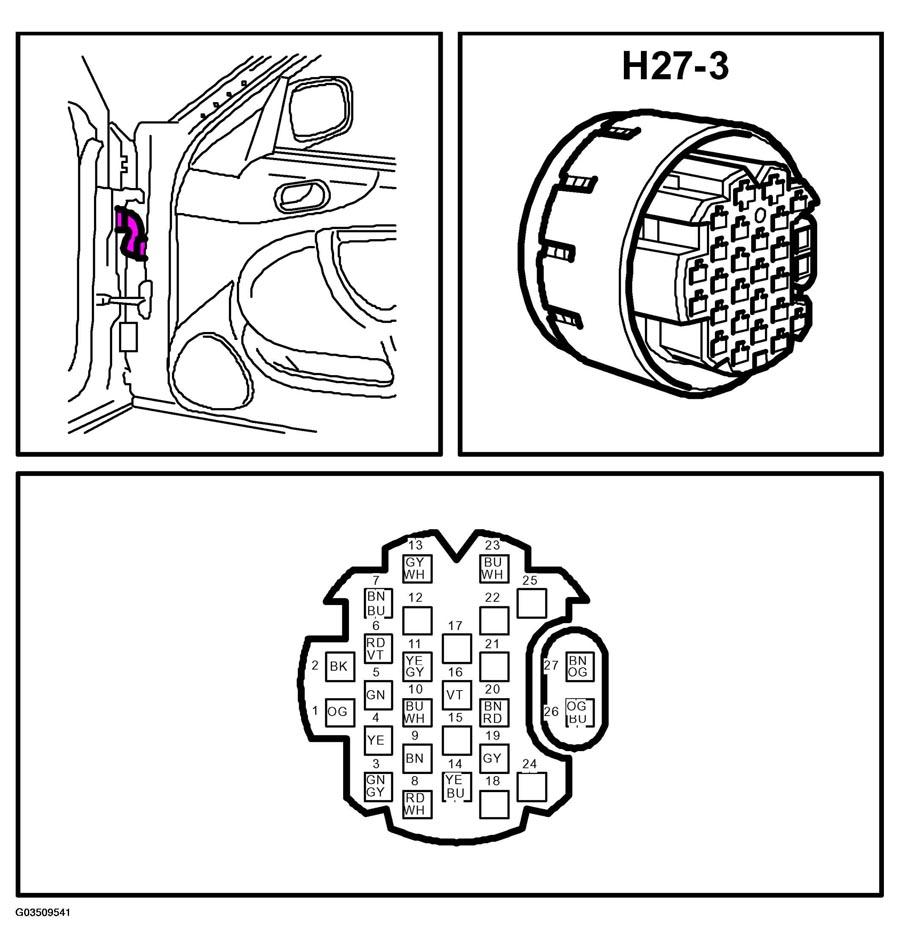

| H27 -3 | Connector driver's door RHD | Figure |

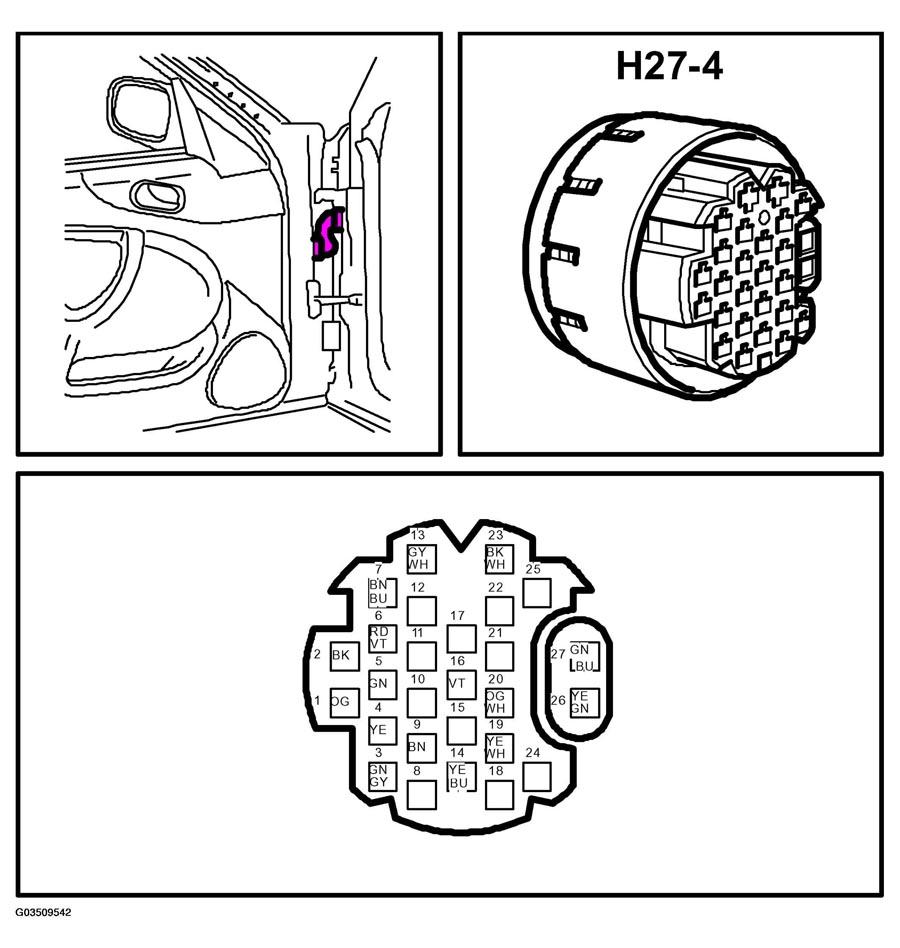

| H27 -4 | Connector passenger door RHD | Figure |
| 33-pin connector | ||

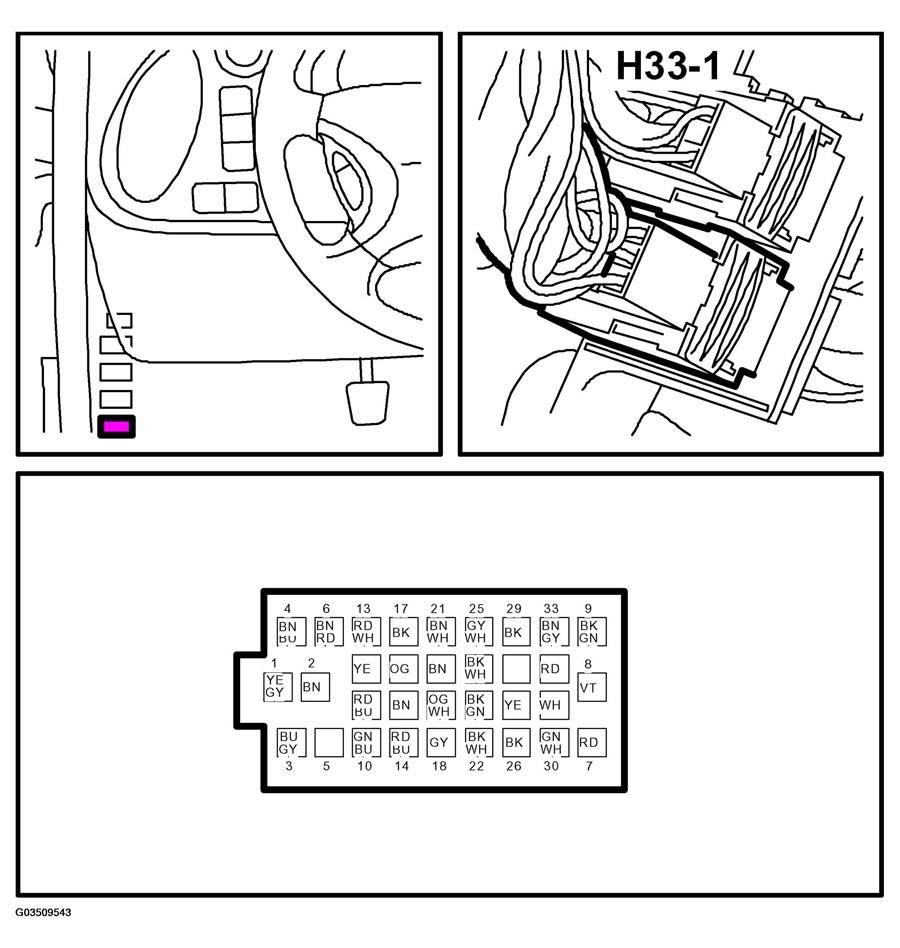

| H33 -1 | Grey connector on console below left A-pillar | Figure |

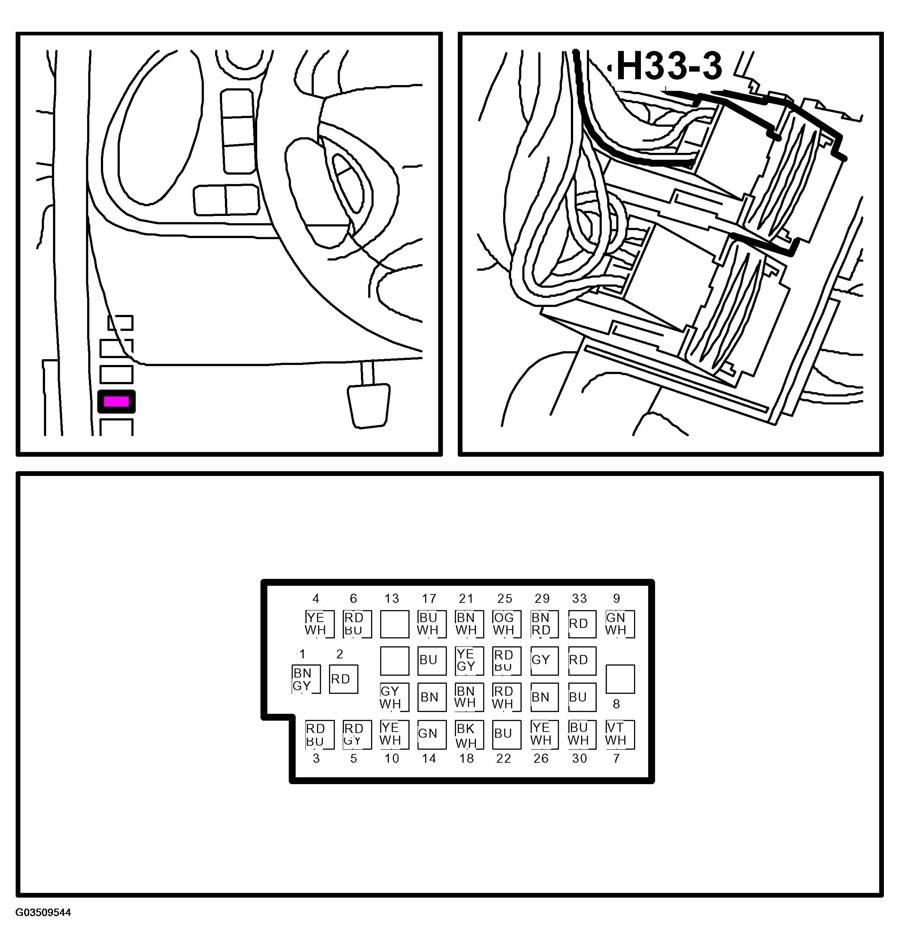

| H33 -3 | Blue connector on console below left A-pillar | Figure |
| Crimped connections | ||

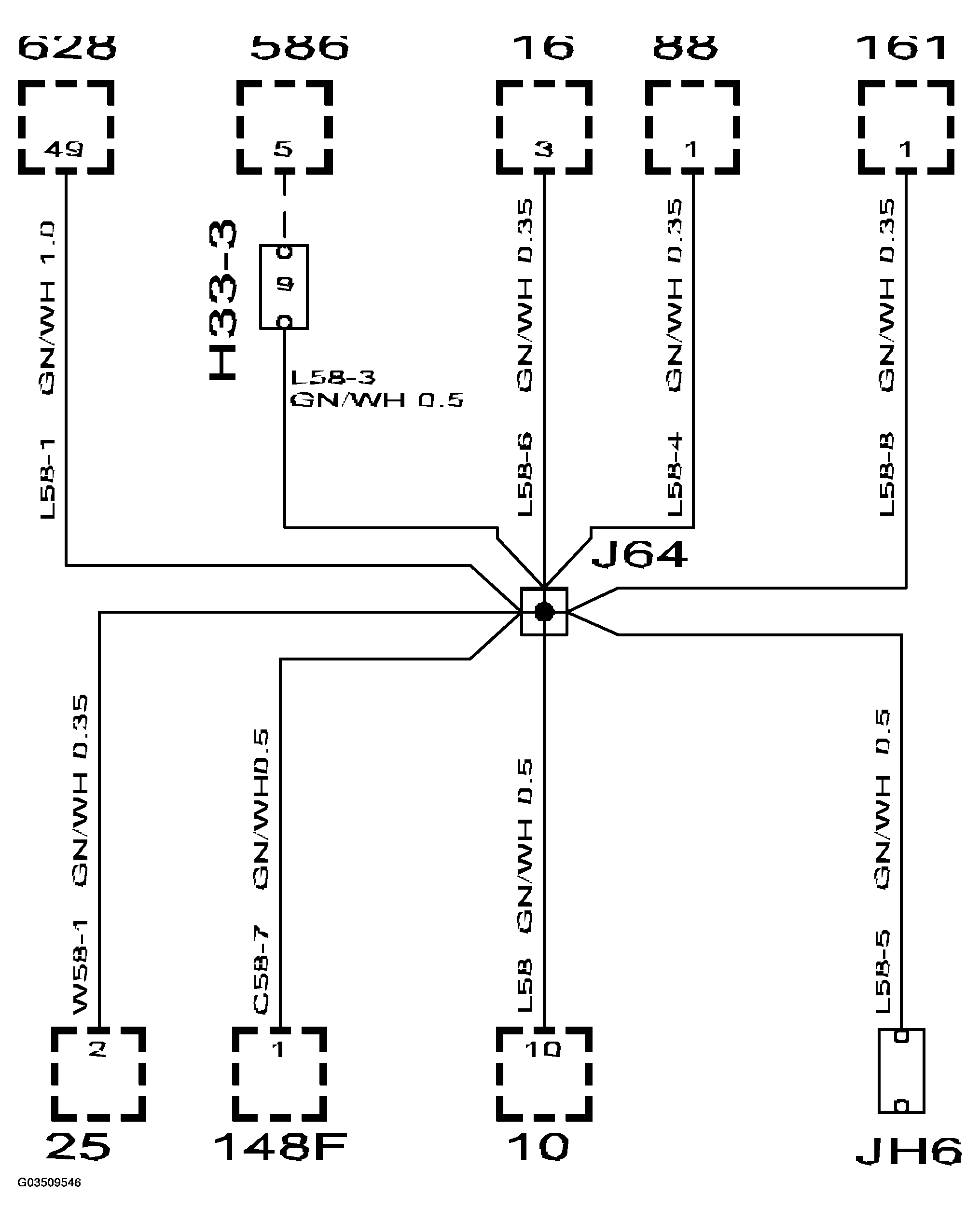

| J64 | LHD:
Approx. 170 mm from branching point light switch towards MIU RHD: Approx. 240 mm from branching control module DICE towards main fuse box |
Figure |
| J112 | Approx. 40 mm from the branching point of left seat towards right seat | Figure |
| Grounding points | ||

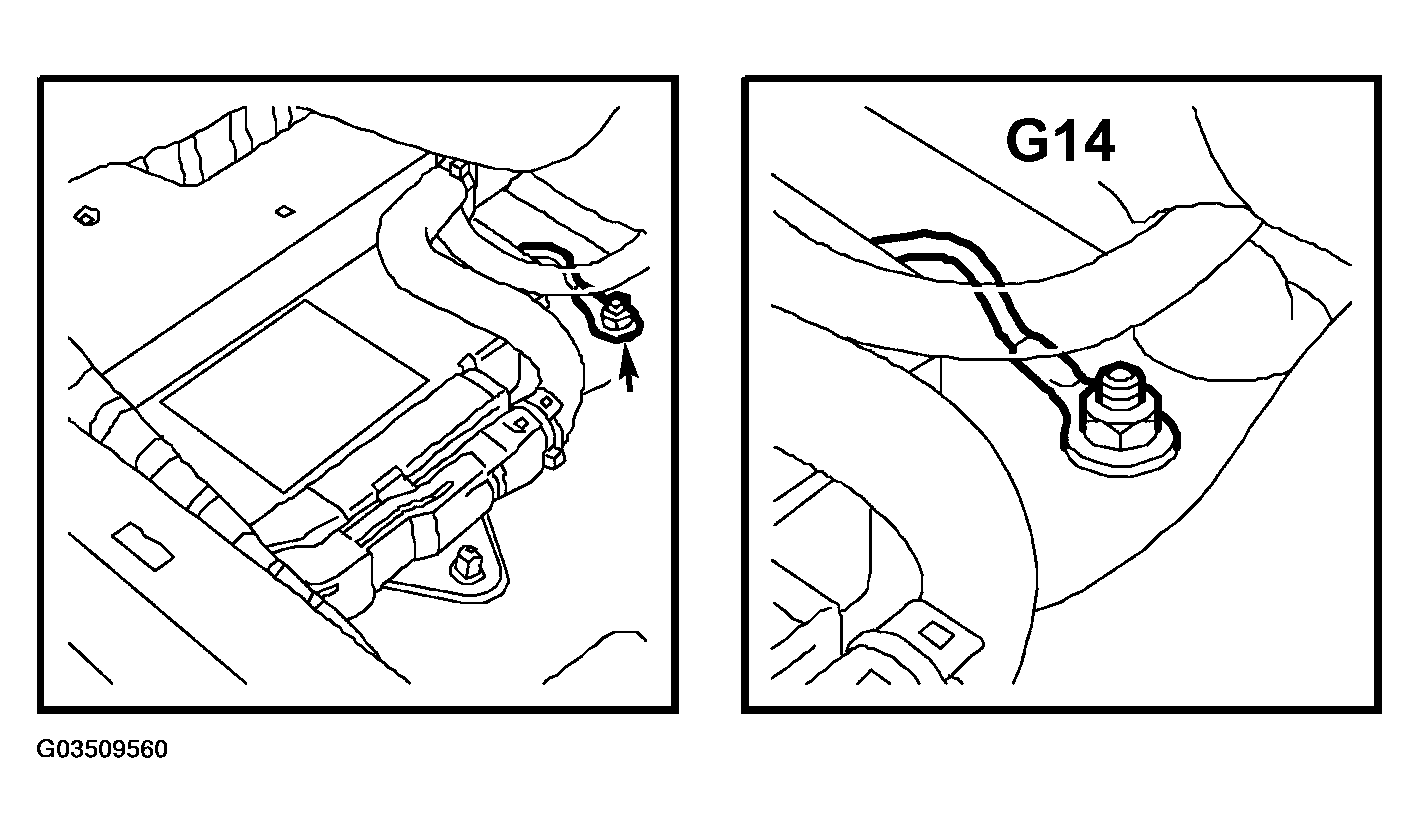

| G14 | Grounding point, front left seat member, under seat | Figure |

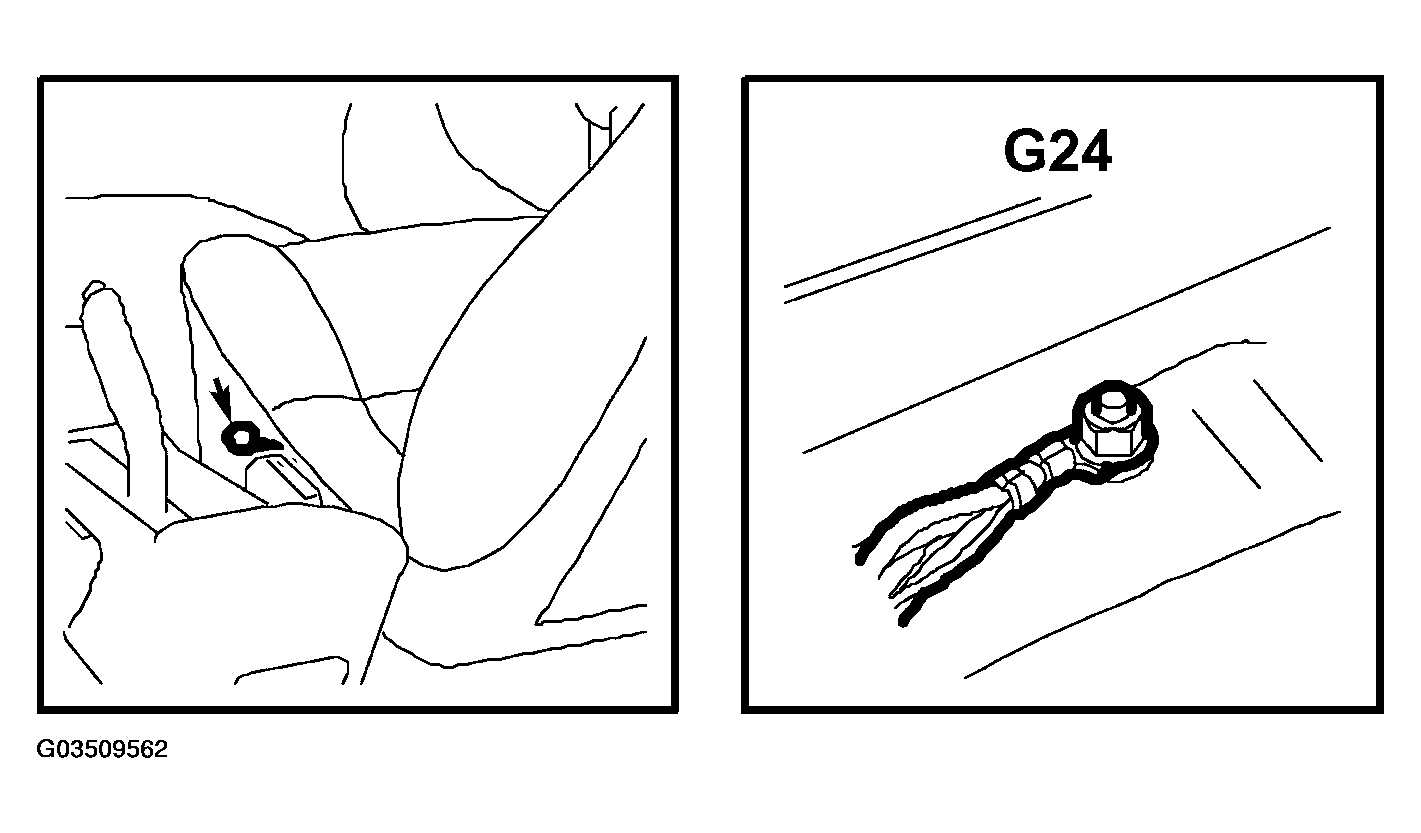

| G24 | Grounding point, front right seat member, under seat | Figure |
