Fuse Board 22A In The Dashboard

Fuse board is located on the end of the dashboard at the driver's door. To locate fuse board and identify fuses, see Fig 1 -Fig 6 .

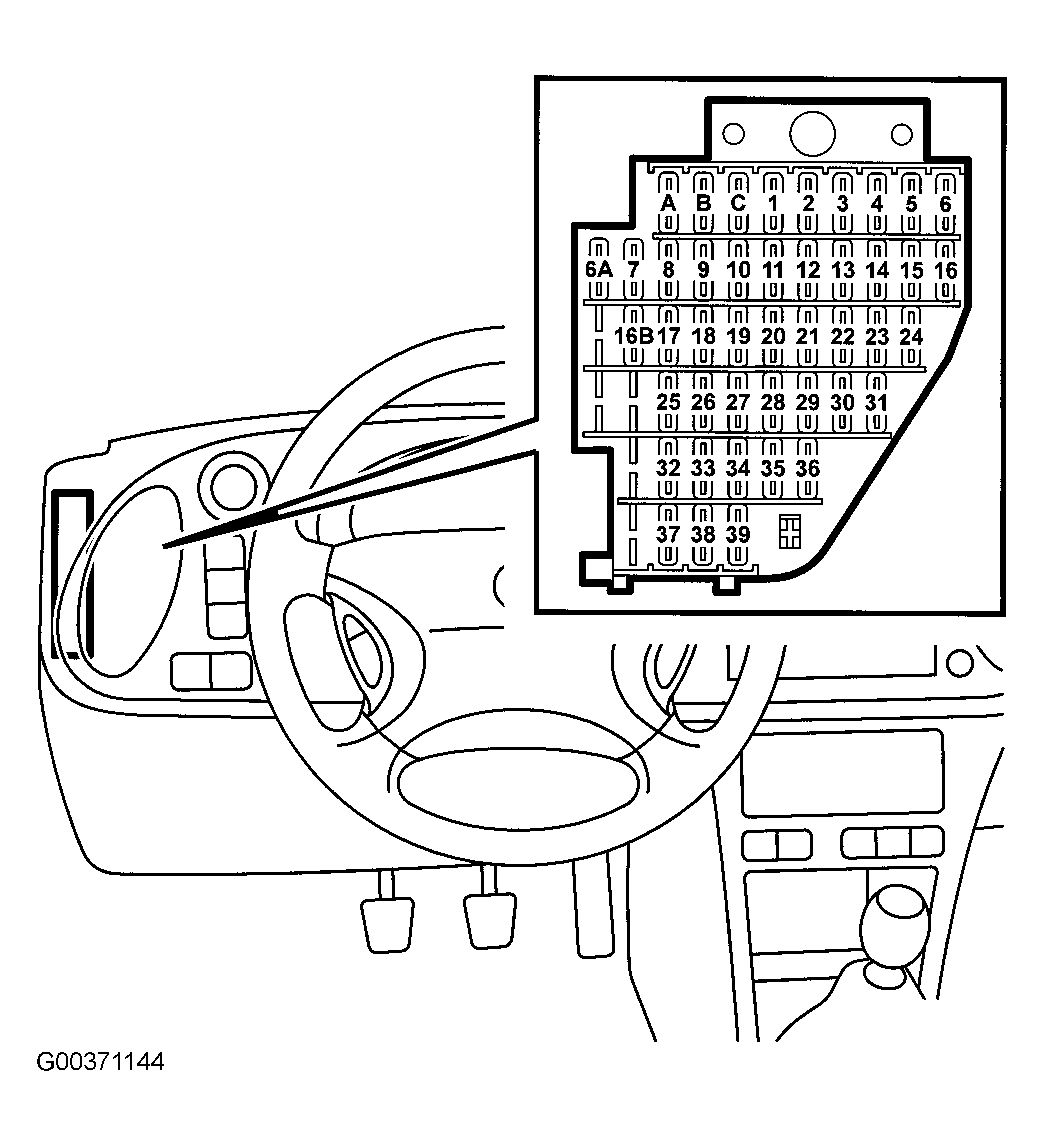

Fig 1: Locating And Identifying Fuse Board 22A

Courtesy of SAAB-SCANIA OF AMERICA, INC.

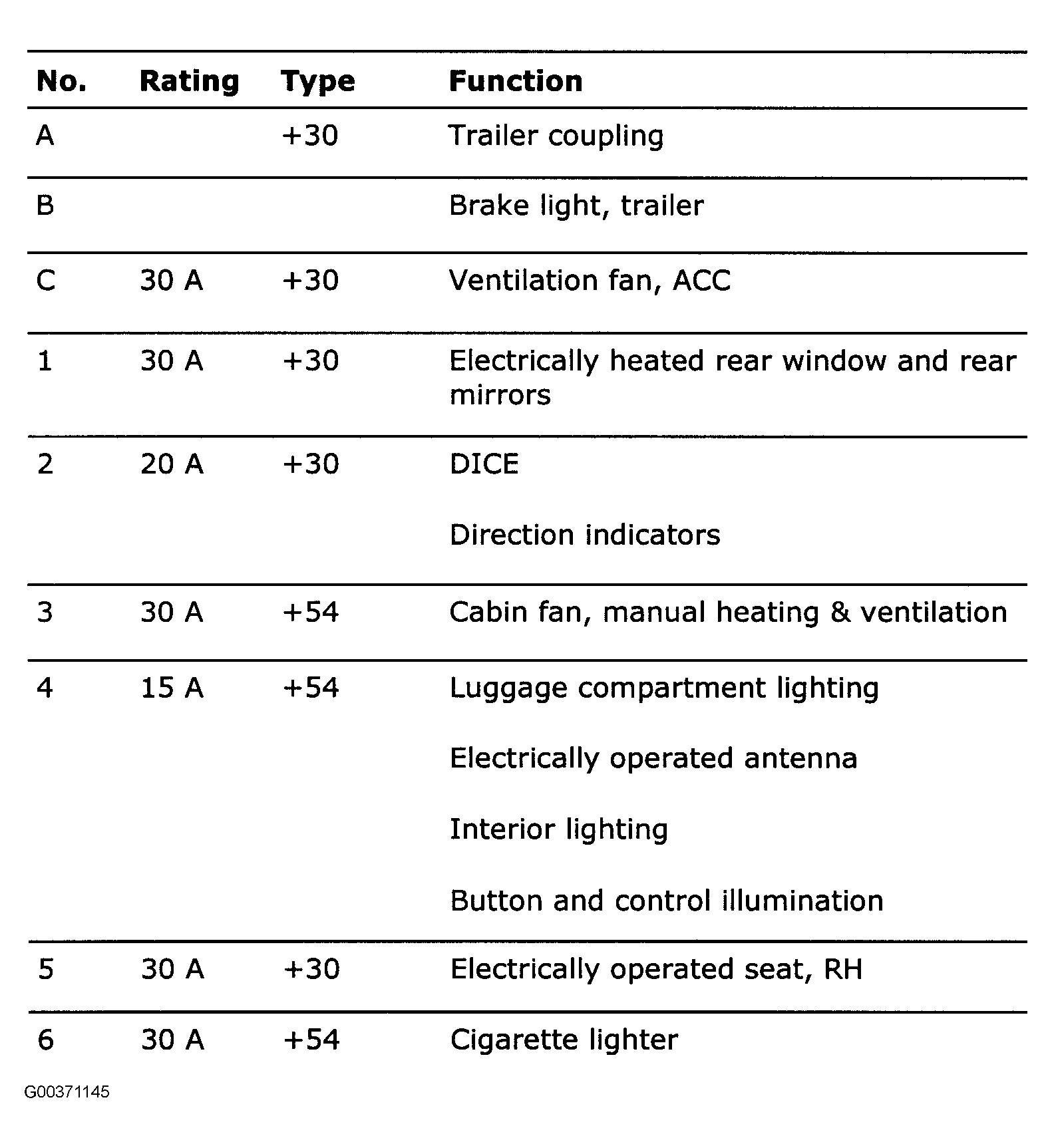

Fig 2: Identifying Fuses A-6 On Fuse Board 22A

Courtesy of SAAB-SCANIA OF AMERICA, INC.

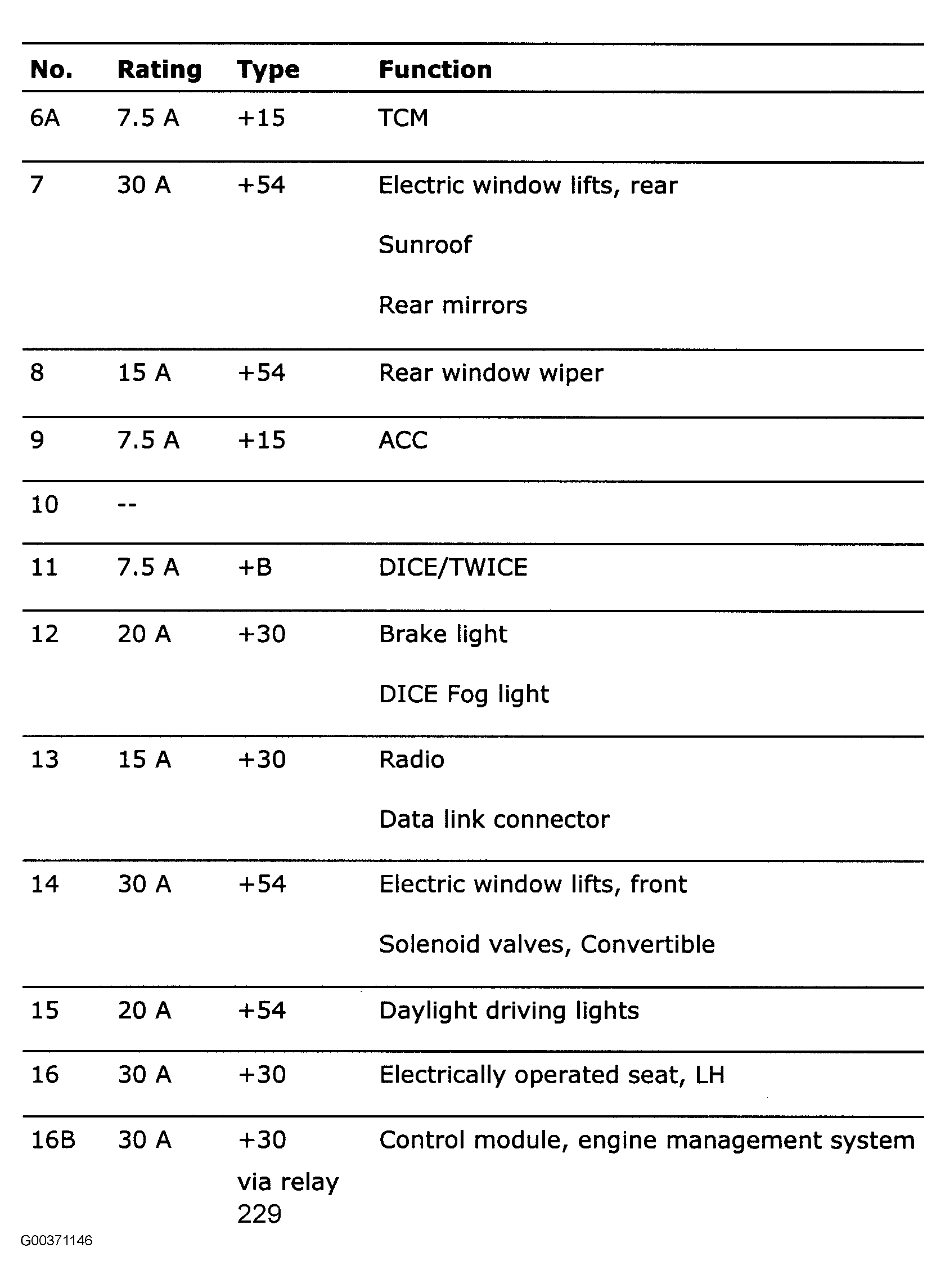

Fig 3: Identifying Fuses 6A-16B On Fuse Board 22A

Courtesy of SAAB-SCANIA OF AMERICA, INC.

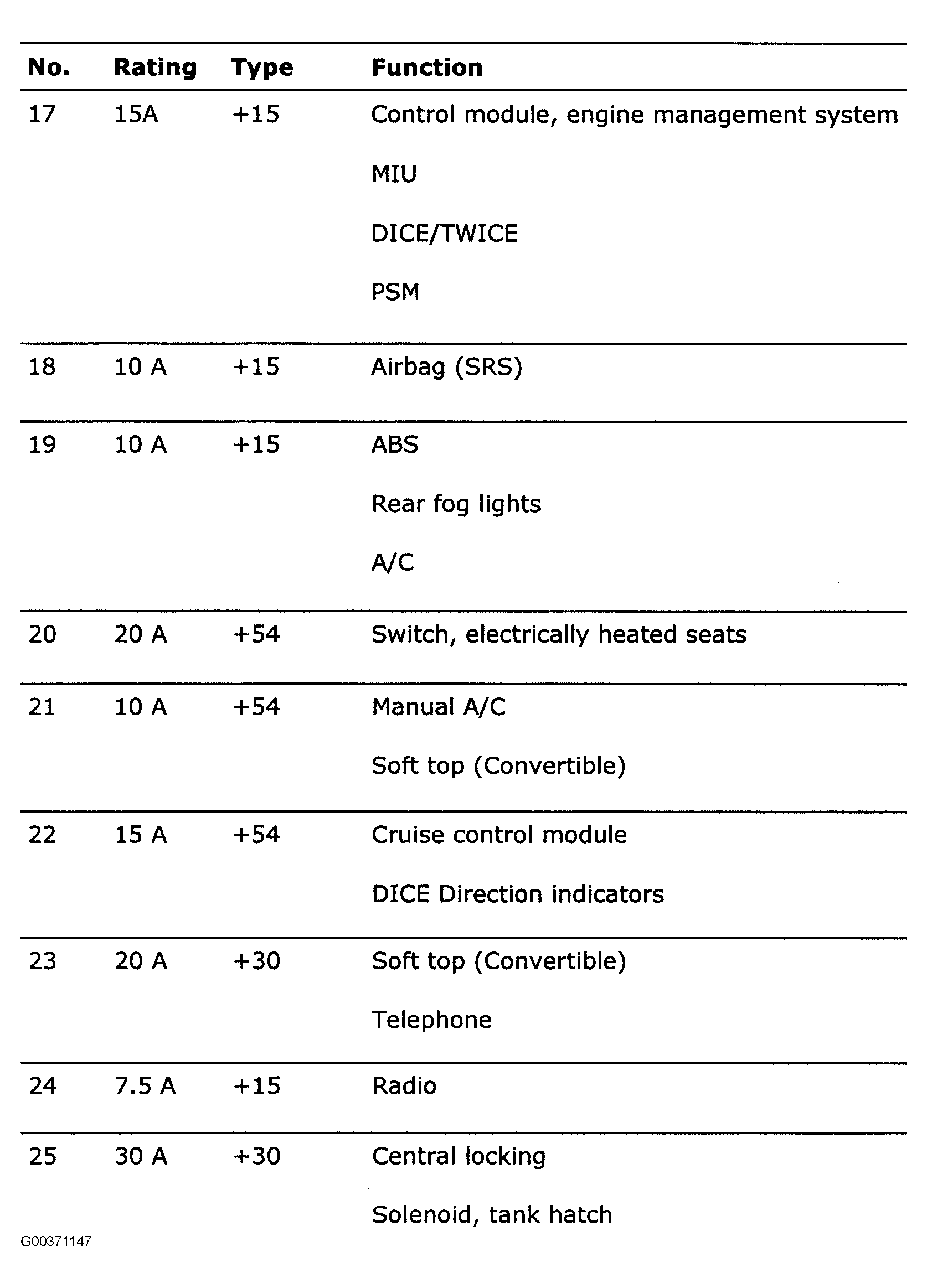

Fig 4: Identifying Fuses 17-25 On Fuse Board 22A

Courtesy of SAAB-SCANIA OF AMERICA, INC.

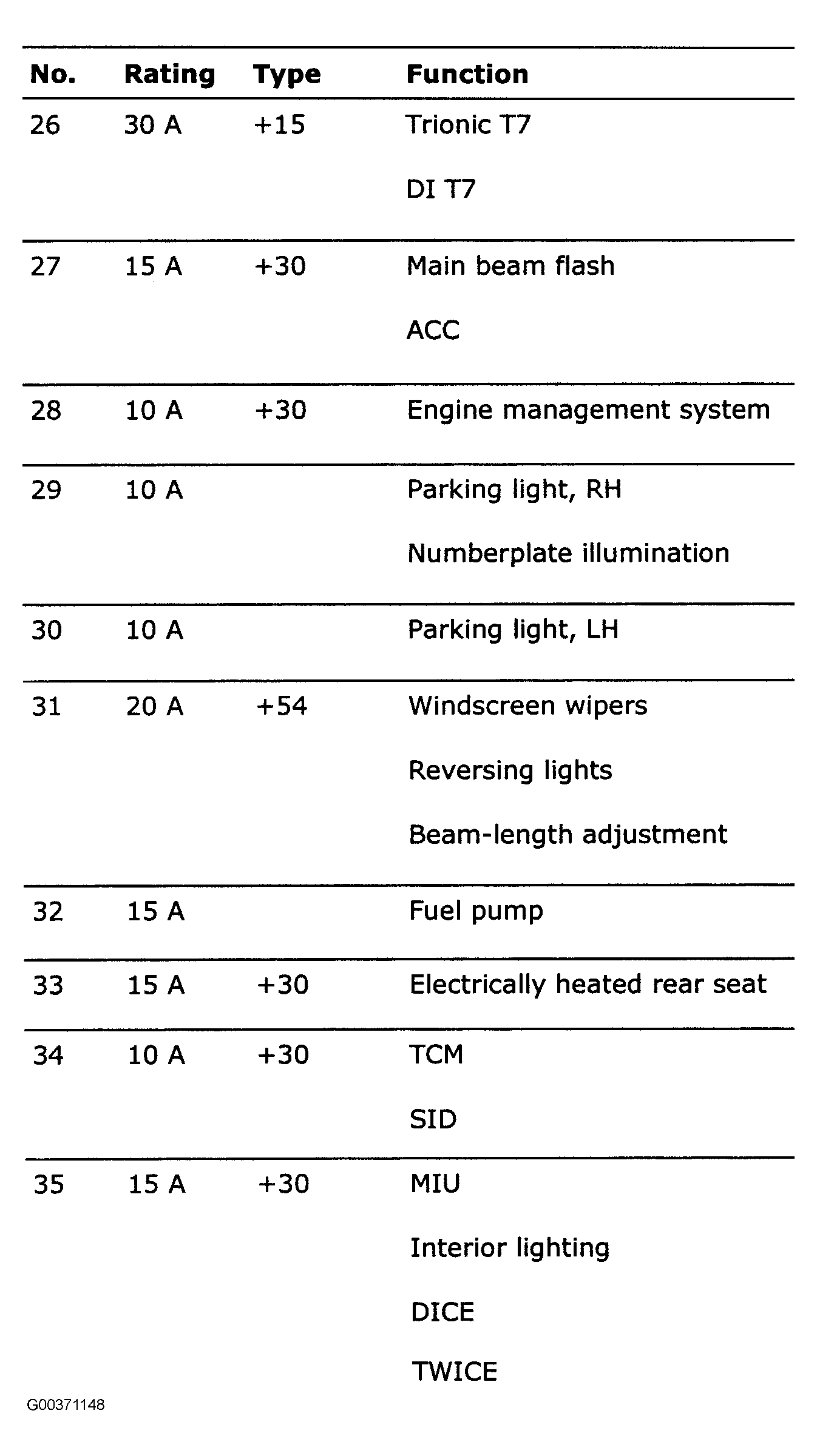

Fig 5: Identifying Fuses 26-35 On Fuse Board 22A

Courtesy of SAAB-SCANIA OF AMERICA, INC.

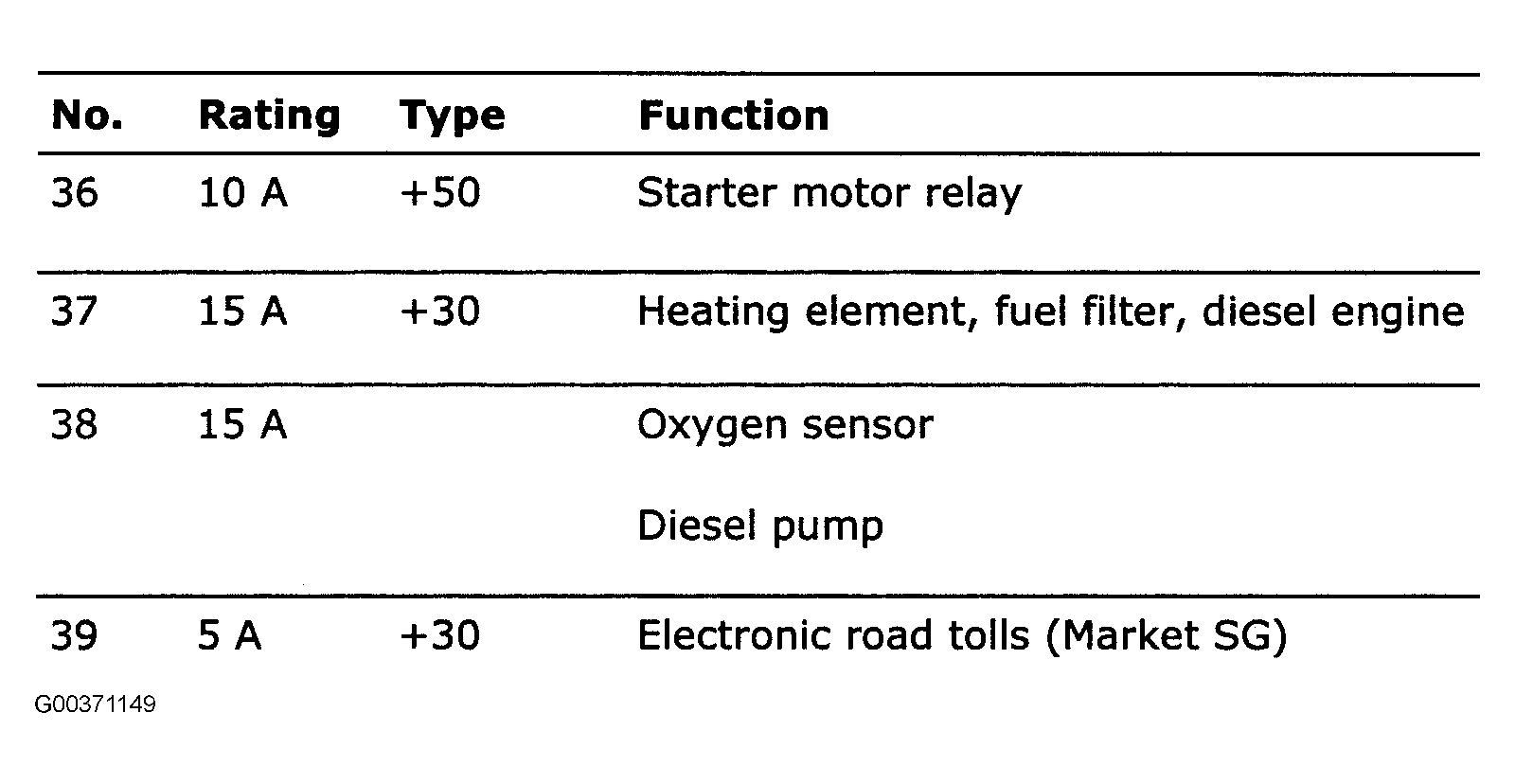

Fig 6: Identifying Fuses 36-39 On Fuse Board 22A

Courtesy of SAAB-SCANIA OF AMERICA, INC.
