B. Additional components on RHD cars

BATTERY GROUNDING COMPONENT CONNECTION SPECIFICATIONS - RHD CARS (G33S)

  Via crimp J90
CRIMP J90, DASHBOARD HARNESS
16 Instrument lighting rheostat
88 Switch, extra fog lights
161 Fog light switch
445 Data link connector, 16-pin CARB
540 Main instrument unit

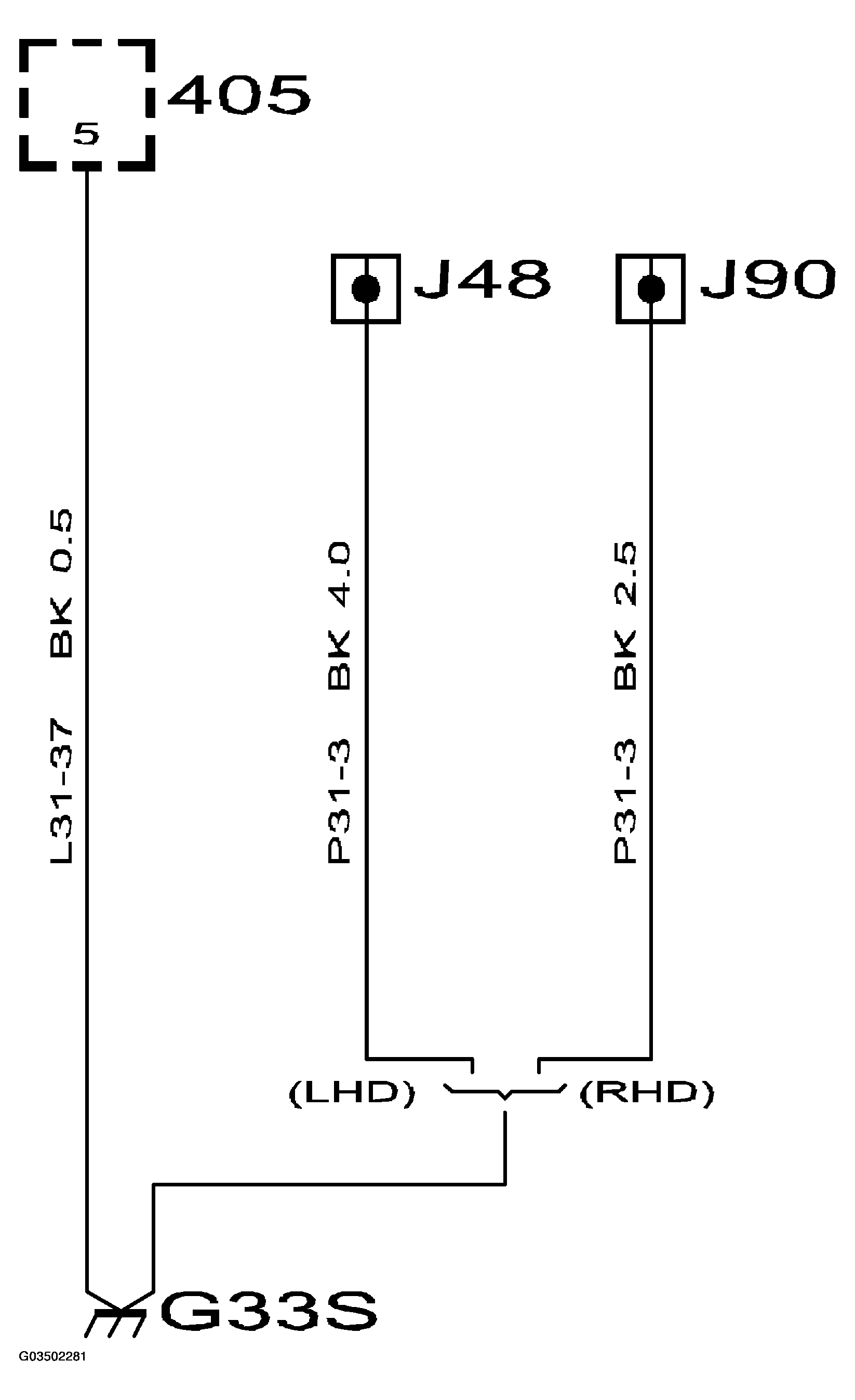

Fig 1: Battery Grounding Connection Diagram (G33S)
G03502281Courtesy of SAAB-SCANIA OF AMERICA, INC.
