Crimp J90, dashboard harness

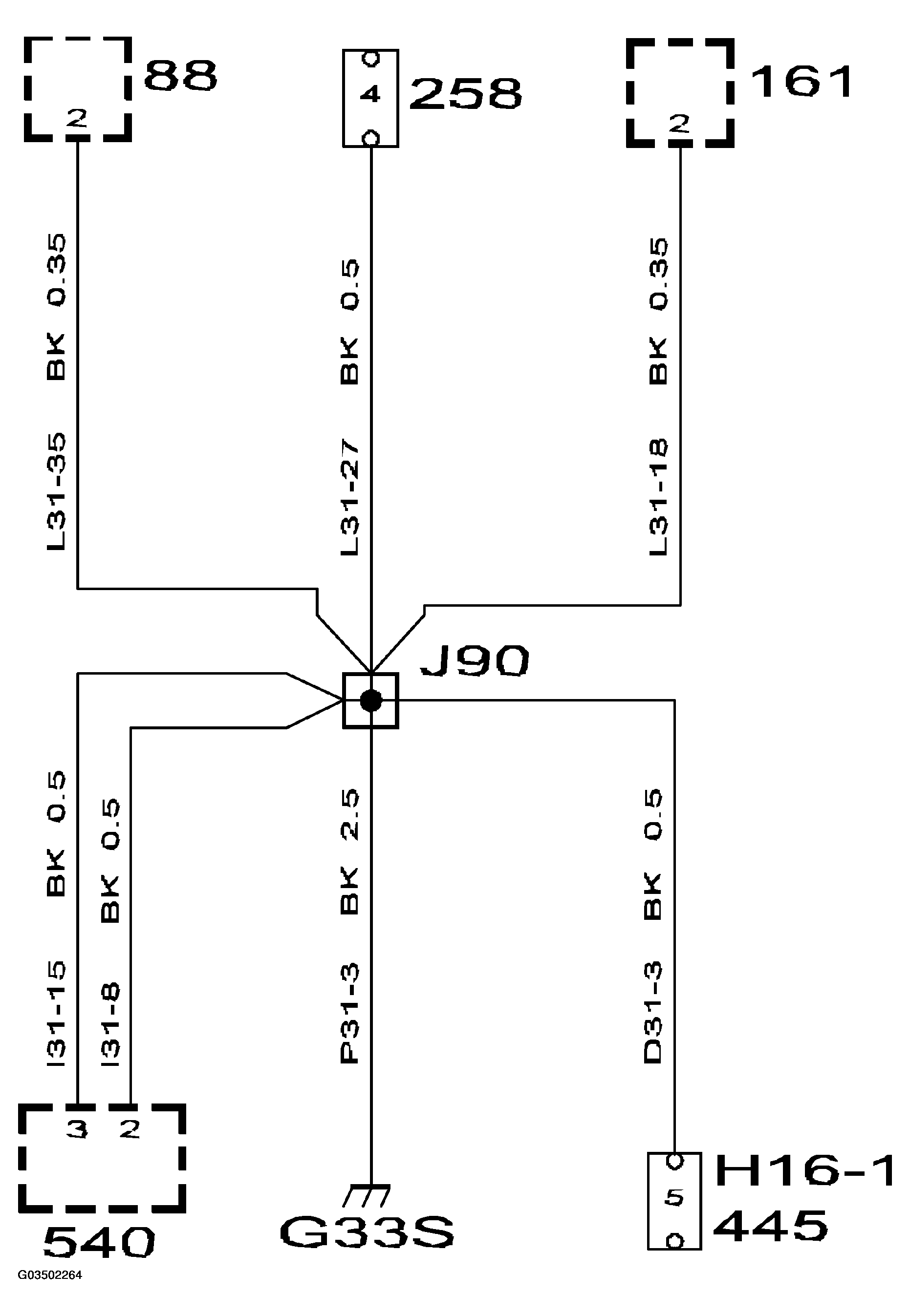

Fig 1: Crimp J90 Dashboard Harness Diagram
G03502264Courtesy of SAAB-SCANIA OF AMERICA, INC.
