Removing 48-Volt Additional Battery

WARNING: This page is about a different variant/trim than selected.
  1. Read and follow work instruction for 48 V vehicle electrical system.

    > 2X00IN WORK INSTRUCTION FOR 48 V VEHICLE ELECTRICAL SYSTEM

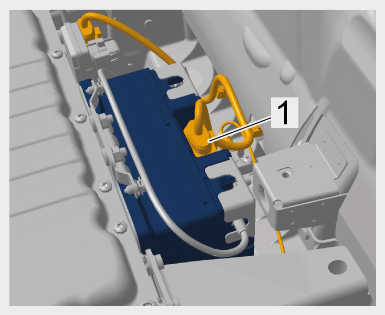

  2. Release and unplug the electrical plug connection -1-  .
    G15242206Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

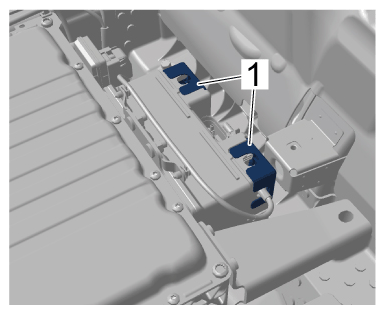

  3. Pull off both terminal caps -1-  on the 48-volt additional battery.
    G15242207Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Terminal caps

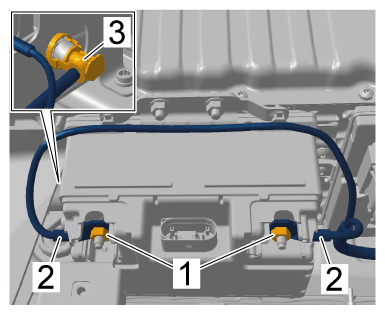

  4. Unscrew fastening nuts -1-  on battery terminals and remove electric lines -2-  .
    G15242208Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening nuts

  5. Release and disconnect vent hose -3-  from 48-volt additional battery.
    G15242209Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Vent hose

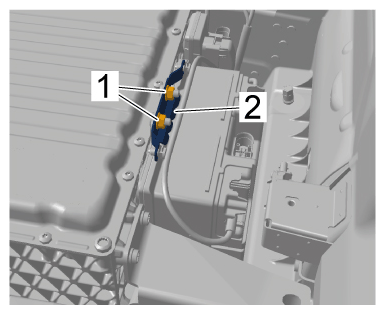

  6. Unscrew fastening nuts -1-  and set battery retaining bracket -2-  with electric lines aside.
    G15242210Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Battery retaining bracket

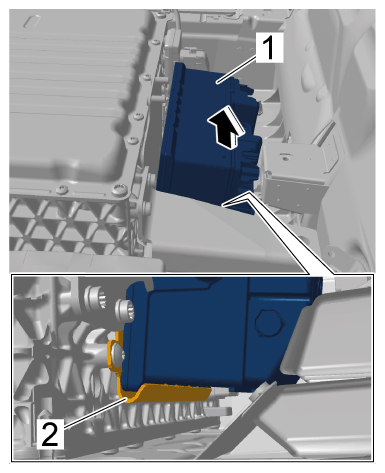

  7. Twist the 48-volt additional battery -1-  and lift it out of the holder -2-  at the bottom -Arrow-  .
    G15242211Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    48-volt additional battery
