Removing Vehicle Electrical System Battery (Lithium-Ion Battery)

Observe specifications for handling 12-volt lithium-ion batteries.

> 2X00IN SPECIFICATIONS FOR HANDLING 12 V/48 V LITHIUM-ION BATTERIES

1. Switch off ignition and keep fansmitter key outside of the transmission range (at least 2 m).
2. Remove terminal covers.
3. Disconnect vehicle electrical system battery.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

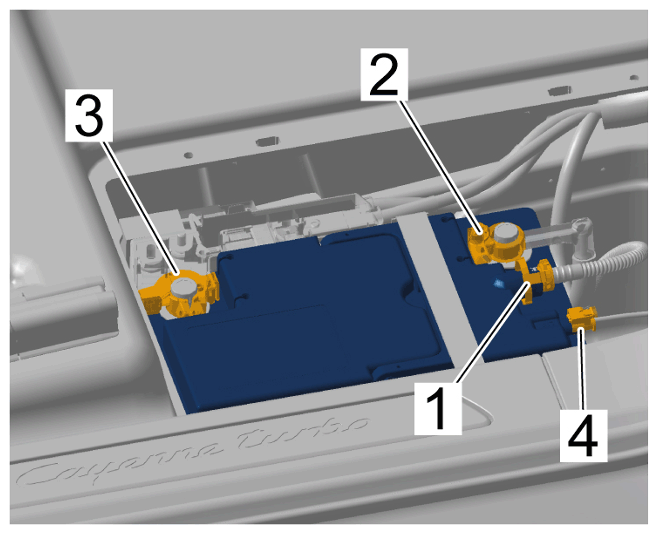

   Battery connections

   1. 3.1  Disconnect degassing hose -1-  from the battery.
   2. 3.2  First disconnect the ground strap -2-  , then the positive cable -3-  and move them aside.
   3. 3.3  Release and disconnect electric plug connection -4-  .
4. Unscrew fastening nuts -1-  and loosen retaining bar -2-  as far as required until the vehicle electrical system battery can be moved.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

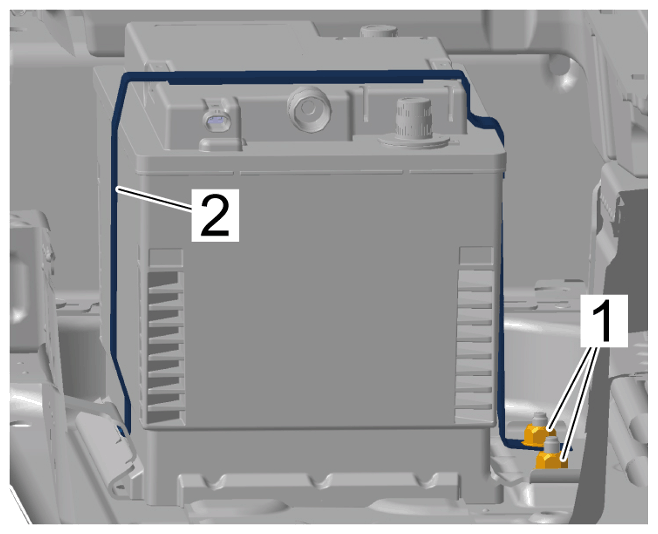

   Fastening nuts on crash panel

5. Push vehicle electrical system battery forward and open the retaining bar fully.
6. Remove holder -1-  and remove vehicle electrical system battery -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

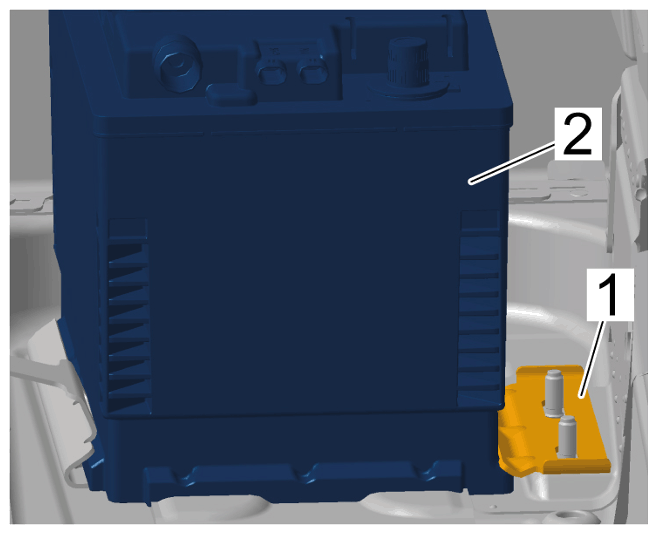

   Crash panel holder
