Measurement 9
- Electric shock
- Short circuit
- Fire
- Explosion
→ Only appropriately trained and authorized persons are permitted to work on high-voltage vehicles and components.
→ Required qualification: High voltage technician or high voltage expert.
→ Observe national requirements and legislation for this work.
→ Always use insulated tools, e.g. > VAS 6883 - Insulated Tool Set when working on these components.
→ Observe general warning notes for working on the high-voltage system.
> 2X00IN GENERAL WARNING NOTES FOR WORKING ON THE HIGH-VOLTAGE SYSTEM
Preliminary work for measurement 9
Remove cover for center underbody at the left.
Refer to the appropriate service information.
Remove protective plate on power electronics.
> 279119 REMOVING AND INSTALLING POWER ELECTRONICS FOR HIGH-VOLTAGE SYSTEM - on "Removing"
Release and disconnect high-voltage line from power electronics to electric A/C compressor.

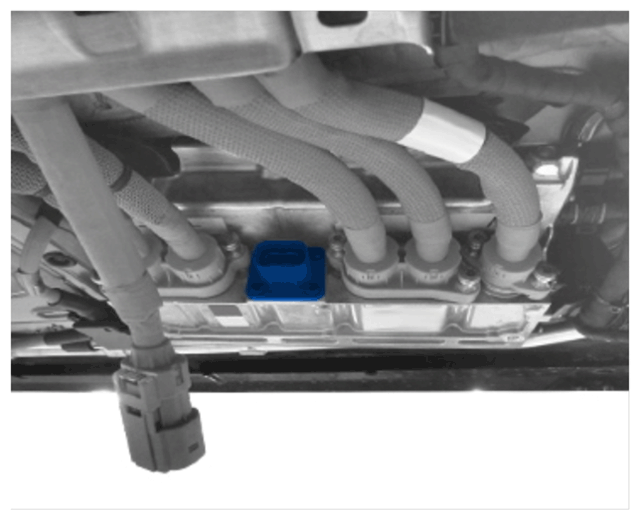

Connection from electric A/C compressor to power electronics
Perform measurement 9.

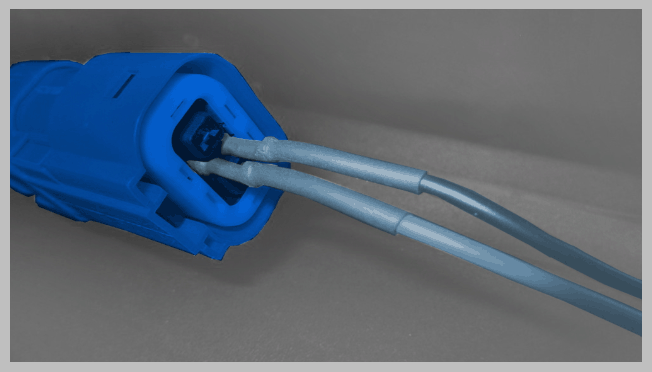

Measurement 9 (shown as an example)
Measure resistance at high-voltage line (from power electronics to electric A/C compressor) pilot line in and pilot line out.
Refer to the wiring diagram for the pin assignment of the connectors
Setpoint value < 0.5 Ohm
Evaluate measured result
If the measured value is within the tolerance range, continue with measurement 9.1 .
If the measured value is outside the tolerance range, replace the high-voltage line.
After carrying out repairs, repeat measurement 9.
Preliminary work for measurement 9.1
Disconnect air-conditioning compressor.
> 873419 REMOVING AND INSTALLING AIR-CONDITIONING COMPRESSOR - on "Removing"
Release and disconnect high-voltage line from electric A/C compressor to power electronics.

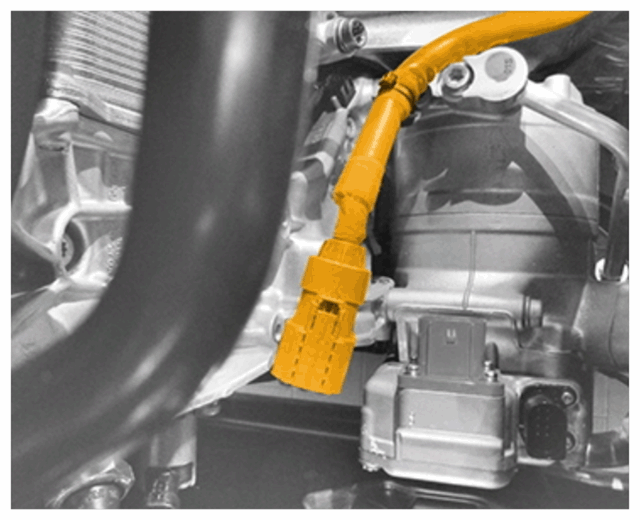

Connection for electric air-conditioning compressor
Perform measurement 9.1.
Measurement 9.1 (shown as an example)
Measure resistance at high-voltage line (from electric A/C compressor to power electronics) pilot line in and pilot line out.
Refer to the wiring diagram for the pin assignment of the connectors
Setpoint value < 0.5 Ohm
Evaluate measured result
If the measured value is within the tolerance range, continue with measurement 10 .
Contact Technical Support.
If the measured value is outside the tolerance range, replace the high-voltage line.
After carrying out repairs, repeat measurement 9.1.
