Measurement 6
- Electric shock
- Short circuit
- Fire
- Explosion
→ Only appropriately trained and authorized persons are permitted to work on high-voltage vehicles and components.
→ Required qualification: High voltage technician or high voltage expert.
→ Observe national requirements and legislation for this work.
→ Always use insulated tools, e.g. > VAS 6883 - Insulated Tool Set when working on these components.
→ Observe general warning notes for working on the high-voltage system.
> 2X00IN GENERAL WARNING NOTES FOR WORKING ON THE HIGH-VOLTAGE SYSTEM
Preliminary work for measurement 6
(Power electronics, electric motor, 3-phase line, traction line)

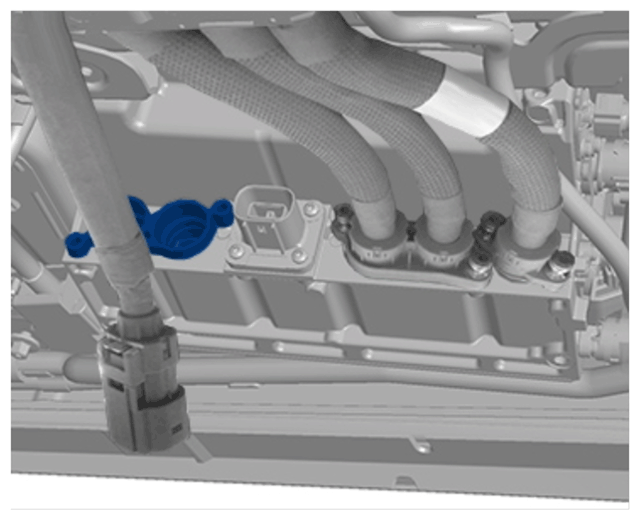

Loosen and disconnect traction line (E-box - power electronics) at the E-box.
High-voltage charger

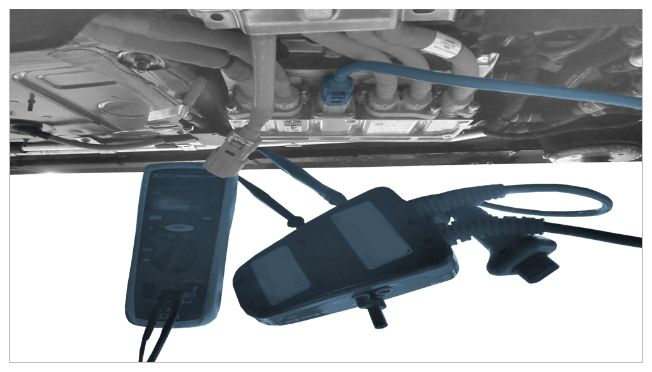

Connect high-voltage test adapter > VAS 6558/9-6 - High-voltage test adapter HVA 280 to the power electronics connection for the electric air-conditioning compressor. Leave the second connection open.
Measurement 6
Perform measurement 6.
Setpoint value > 550 MOhm
Evaluate measured result
If the measured value is within the tolerance range, continue with measurement 6.1
If the measured value is outside of the tolerance range, continue with measurement 6.2
Preliminary work for measurement 6.1
(E-box)
Remove HV battery.
> 270819 REMOVING AND INSTALLING HIGH-VOLTAGE BATTERY - on "Removing"
Remove E-box.
> 270819 REMOVING AND INSTALLING E-BOX - on "Removing"

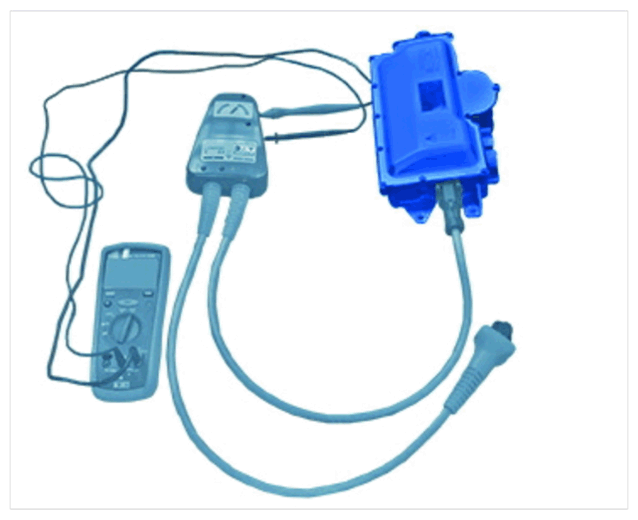

Connect high-voltage test adapter > VAS 6558/9-7 - High-voltage test adapter HVR 40 to the E-box. Leave the second connection open.
Measurement 6.1
Perform measurement 6.1.
Setpoint value > 550 MOhm
Evaluate measured result
If the measured value is within the tolerance range, repeat measurement.
Contact Technical Support.
If the measured value is outside of the tolerance range, replace E-box.
After replacing the E-box, repeat measurement 5.
Preliminary work for measurement 6.2
(Power electronics, electric motor, 3-phase line)
Loosen and disconnect traction line (power electronics to E-box) at the power electronics.

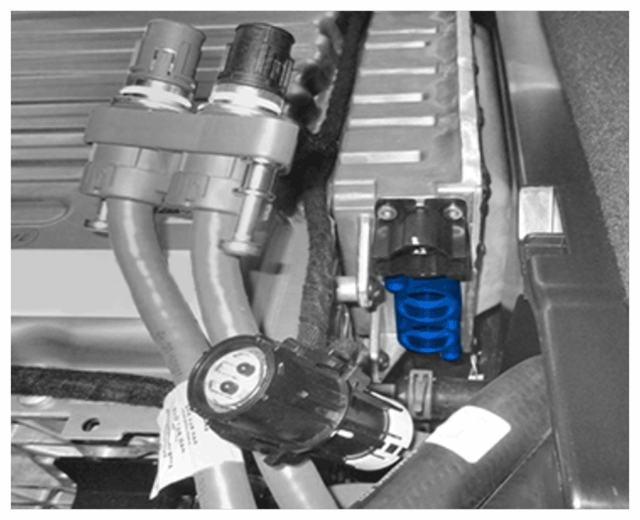

Traction line connection at power electronics

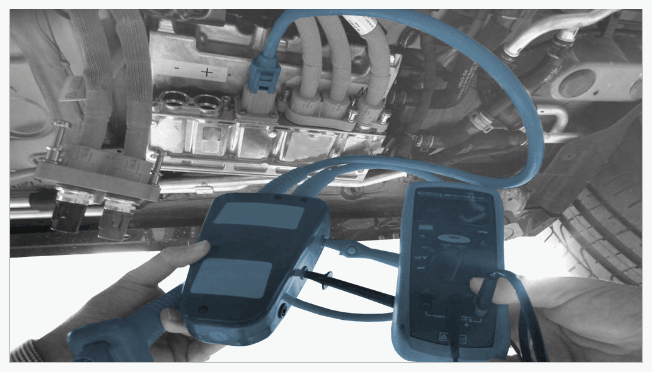

Connect high-voltage test adapter > VAS 6558/9-6 - High-voltage test adapter HVA 280 to the power electronics connection for the electric air-conditioning compressor. Leave the second connection open.
Measurement 6.2
Perform measurement 6.2.
Setpoint value > 550 MOhm
Evaluate measured result.
If the measured value is within the tolerance range, replace the high-voltage line.
After replacing the high-voltage line, repeat measurement 5.
If the measured value is outside of the tolerance range, continue with measurement 7
