WM, 5X00IN41 Gap Dimension: Notes

WARNING: This page is about a different car, the 2021 Porsche Cayenne and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

TECHNICAL VALUES SPECIFICATION

Location	Description	Type	Basic value	Tolerance 1

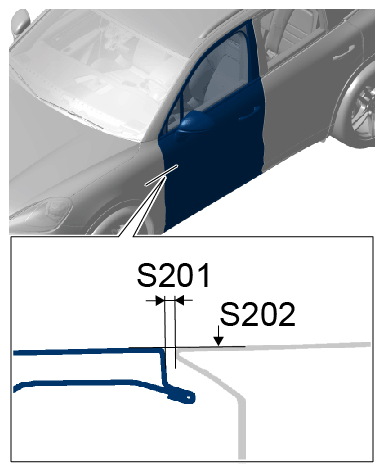

Wing to door (S201)		Gap dimension	3.4 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Wing to door (S202)	Offset	Gap dimension	0 mm	+ 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

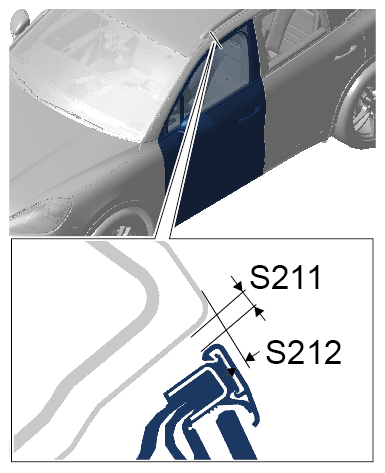

Moulding to side panel (S211)		Gap dimension	4.9 mm	+/- 1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Moulding to side panel (S212)	Offset	Gap dimension	- 0.8 mm	- 2 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

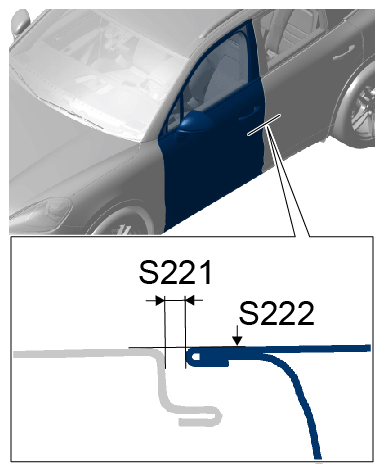

Front door to rear door (S221)		Gap dimension	4.2 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Front door to rear door (S222)	Offset	Gap dimension	0 mm	+ 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

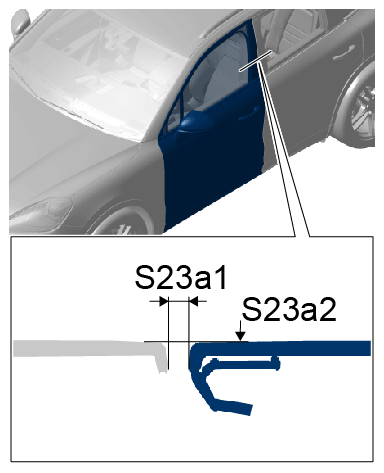

Trim, front to rear (S23a1)		Gap dimension	4.2 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Trim, front to rear (S23a2)	Offset	Gap dimension	0 mm	+ 1.5 mm,- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

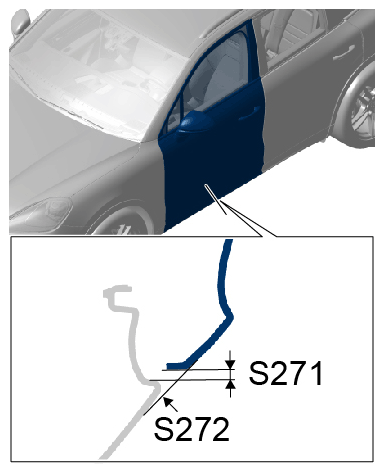

Door sill to door (S271)		Gap dimension	5 mm	+/- 1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Door sill to door (S272)	Offset	Gap dimension	- 3 mm	+/- 1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

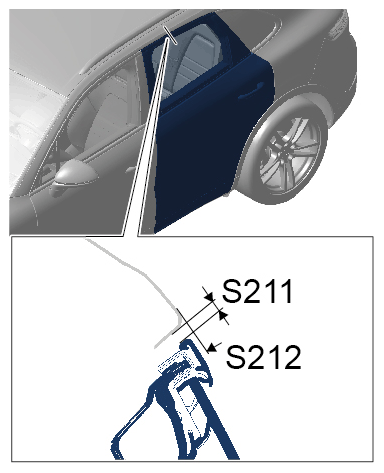

Moulding to side panel (S211)		Gap dimension	4.9 mm	+/- 1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Moulding to side panel (S212)	Offset	Gap dimension	- 0.8 mm	- 2 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Front door to rear door (S221)		Gap dimension	4.2 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Front door to rear door (S222)	Offset	Gap dimension	0 mm	+ 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

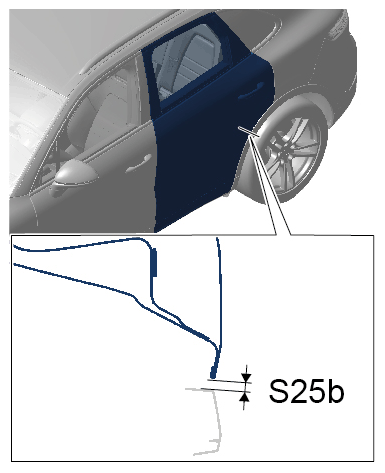

Wheel arch trim to rear door (S25b)		Gap dimension	3.4 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

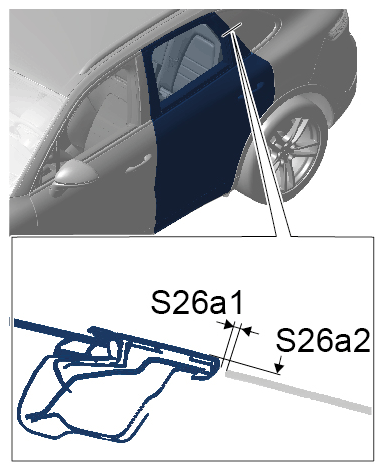

C-pillar cover to rear window (S26a1)		Gap dimension	3.4 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
C-pillar cover to rear window (S26a2)	Offset	Gap dimension	4.2 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

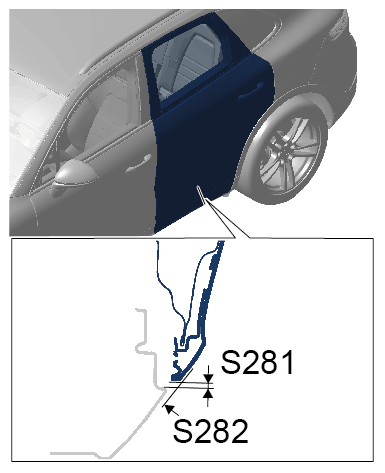

Door sill to door trim panel (S281)		Gap dimension	5 mm	+/- 1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Door sill to door trim panel (S282)	Offset	Gap dimension	- 4.8 mm	+/- 1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

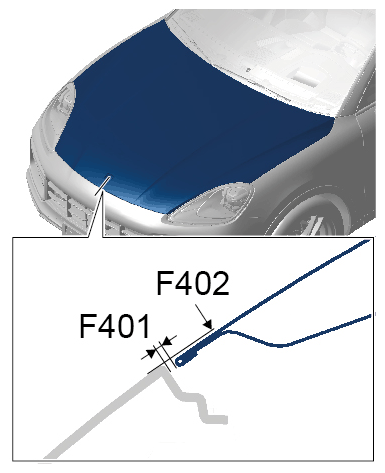

Front apron to front lid (F401)		Gap dimension	2.9 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Front apron to front lid (F402)	Offset	Gap dimension	1 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

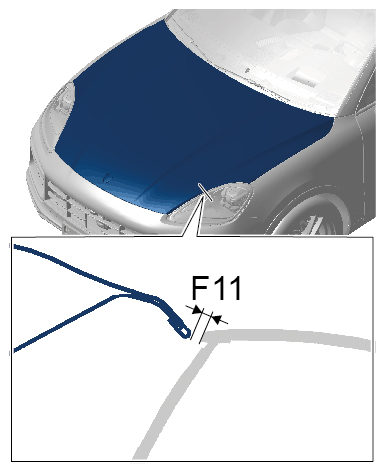

Main headlight to front lid (F11)		Gap dimension	2.9 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

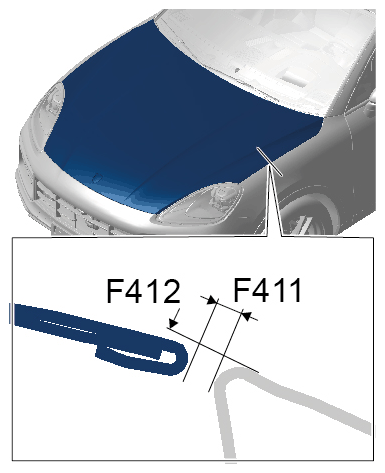

Front lid to wing (F411)		Gap dimension	2.9 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Front lid to wing (F412)	Offset	Gap dimension	0.3 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

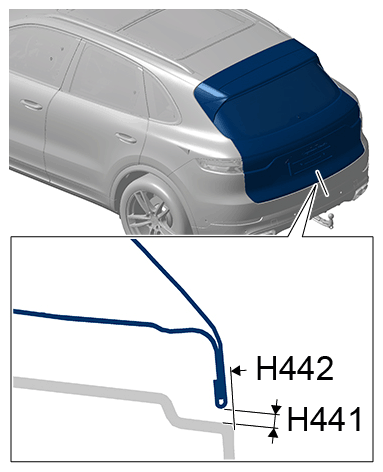

Rear lid to rear apron (H441)		Gap dimension	4 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Rear lid to rear apron (H442)	Offset	Gap dimension	1 mm	+ 1.4 mm,- 1.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

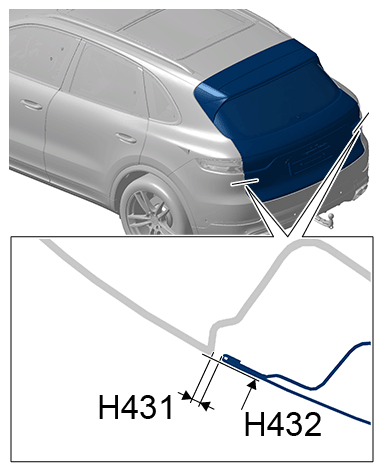

Rear lid to rear apron, side (H431)		Gap dimension	3.5 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Rear lid to rear apron, side (H432)	Offset	Gap dimension	0.7 mm	+ 0.6 mm,- 1.1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

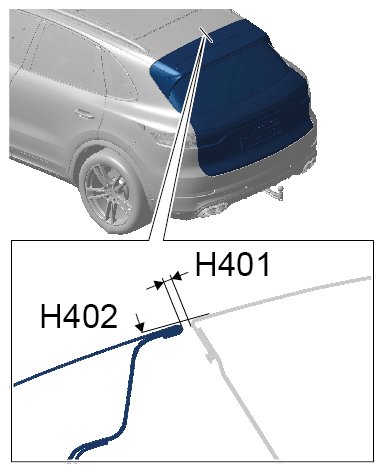

Rear lid to roof (H401)		Gap dimension	5.5 mm	+ 1.5 mm,- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Rear lid to roof (H402)	Offset	Gap dimension	- 1.2 mm	+ 1 mm,- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Roof spoiler centre trim to roof (H40)	Gap	Gap dimension	5.5 mm	+ 1.5 mm,- 0.5 mm
Roof spoiler centre trim to roof (H40)	Offset	Gap dimension	- 1.2 mm	+ 1.5 mm,- 0.5 mm
Rear apron to rear lid - side (H43_0)	Gap	Gap dimension	3.5 mm	+ 1 mm,- 1 mm
Rear apron to rear lid - side (H43_0)	Offset	Gap dimension	0.2 mm	+ 0.8 mm,- 0.8 mm
Rear apron to rear lid - side (H43_1)	Gap	Gap dimension	3.5 mm	+ 1 mm,- 1 mm
Rear apron to rear lid - side (H43_1)	Offset	Gap dimension	0.6 mm	+ 0.6 mm,- 1.1 mm
Rear apron to rear lid - bottom - handle strip (H44_1)	Gap	Gap dimension	4 mm	+ 1 mm,- 1 mm
Rear apron to rear lid, bottom (H44_2)	Gap	Gap dimension	4 mm	+ 1 mm,- 1 mm
Rear apron to rear lid, bottom (H44_2)	Offset	Gap dimension	0 mm	+ 1 mm,- 1 mm
Rear apron to rear lid, bottom (H44_3)	Gap	Gap dimension	4 mm	+ 1 mm,- 1 mm
Rear apron to rear lid, bottom (H44_3)	Offset	Gap dimension	0 mm	+ 1 mm,- 1 mm
Rear window to side panel (H51)	Gap	Gap dimension	3.5 mm	+ 1.5 mm,- 0.1 mm
Cover on window extension to rear window	Gap	Gap dimension	3.5 mm	+ 1.5 mm,- 0.5 mm
Cover on window extension to rear window	Toughened safety glass offset	Gap dimension	2.1 mm	+ 1.2 mm,- 1.2 mm
Cover on window extension to rear window	Laminated safety glass offset	Gap dimension	1 mm	+ 1.2 mm,- 1.2 mm
Rear spoiler to side panel (H72_1)	Top - Gap	Gap dimension	4.5 mm	+ 1 mm,- 1 mm
Rear spoiler to side panel (H72_1)	Top - Offset	Gap dimension	- 0.5 mm	+ 0.5 mm,- 0.8 mm
Rear spoiler to side panel (H72_1)	Bottom - Gap	Gap dimension	4.5 mm	+ 0.7 mm,- 0.7 mm
Rear spoiler to side panel (H72_1)	Bottom - Offset	Gap dimension	0 mm	+ 0.3 mm,- 1 mm
Rear spoiler to side panel (H72_2)	Gap	Gap dimension	5 mm	+ 0.7 mm,- 0.7 mm
Rear spoiler to side panel (H72_2)	Offset	Gap dimension	- 0.7 mm	+ 0.7 mm,- 0.7 mm
Fin to roof spoiler (HP258_1)	Gap	Gap dimension	4.7 mm	+ 1.5 mm,- 0.5 mm
Fin to roof spoiler (HP258_1)	Offset	Gap dimension	0.4 mm	+ 0.5 mm,- 0.5 mm
Fin to roof spoiler (HP258_2)	Gap	Gap dimension	5.2 mm	+ i.5 mm,- 0.5 mm
Fin to roof spoiler (HP258_2)	Offset	Gap dimension	0.6 mm	+ 0.5 mm,- 0.5 mm
Fin to roof spoiler (HP258_3)	Gap	Gap dimension	5.1 mm	+ 1.5 mm,- 0.5 mm
Fin to roof spoiler (HP258_3)	Offset	Gap dimension	0.3 mm	+ 0.5 mm,- 0.5 mm
Fin to roof spoiler (HP258_4)	Gap	Gap dimension	4.7 mm	+ 1.5 mm,- 0.5 mm
Fin to roof spoiler (HP258_4)	Offset	Gap dimension	0 mm	+ 0.5 mm,- 0.5 mm
Fin to side panel (HP260)	Gap	Gap dimension	3.5 mm
Fin to roof (HP261_1)	Gap	Gap dimension	2.5 mm	+ 0.5 mm,- 0.5 mm
Trim strip on rear side window to side pant! (S55_0)	Gap	Gap dimension	6 mm	+ 1 mm,- 1 mm
Trim strip on rear side window to side panel (S55_0)	Offset	Gap dimension	- 1.6 mm	+ 1 mm,- 1 mm
Trim strip on rear side window to side panel (S55_1)	Gap	Gap dimension	6.5 mm	+ 0.8 mm,- 0.8 mm
Trim strip on rear side window to side panel (S55_2)	Gap	Gap dimension	0.8 mm	+ 0.5 mm,- 0.5 mm
