Underbody Covers

WARNING: This page is about a different car, the 2021 Porsche Cayenne and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value
Fastening screw for rear underbody cover, left	Item 2	Tightening torque	3 (2 ftlb.) Nm

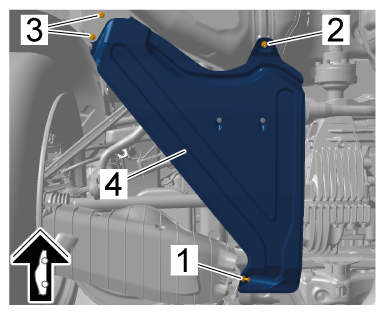

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on rear underbody cover, left
Nut for rear underbody cover, right	Item 2	Tightening torque	2 (1.5 ftlb.) Nm

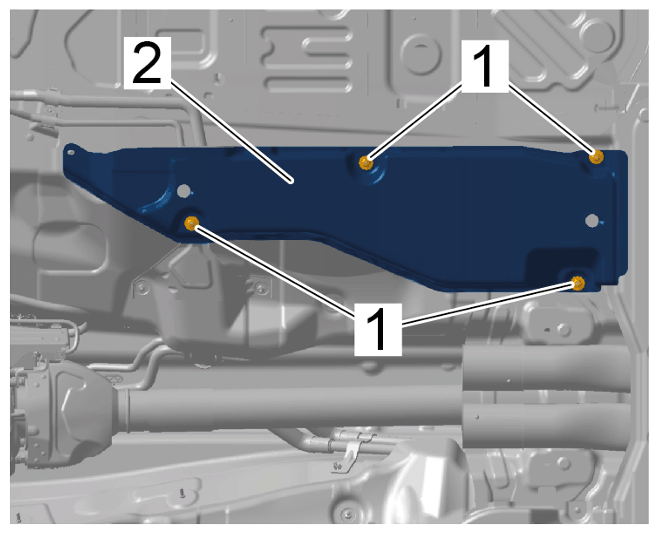

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for rear cover, right
Screw for rear underbody cover, right	Item 3	Tightening torque	2 (1.5 ftlb.) Nm

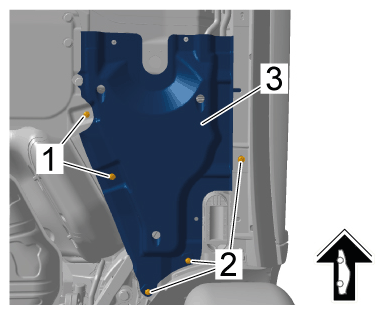

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on rear underbody cover, right
Nut for rear underbody cover	Item 2	Tightening torque	2 (1.5 ftlb.) Nm

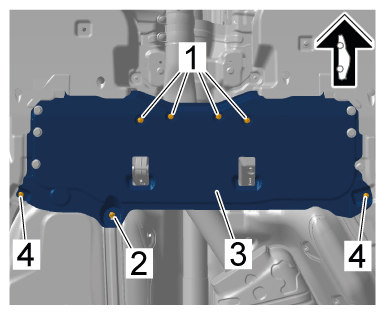

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear underbody cover, centre
Screws for rear underbody cover	Item 4	Tightening torque	3 (2 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear underbody cover, centre
Rear underbody cover to bumper	Item 1	Tightening torque	3 (2 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on rear underbody cover, left
Tunnel cover, left	Item 1	Tightening torque	2 (1.5 ftlb.) Nm

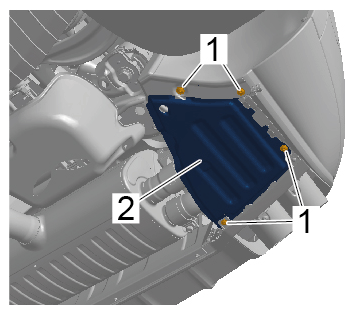

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Underbody cover, left
