Rear Lid

WARNING: This page is about a different car, the 2021 Porsche Cayenne and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Location	Descriptior	Type	Basic value

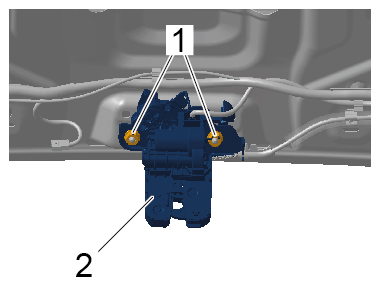

Rear lock upper part to rear lid	Item 1	Tightening torque	21 (16 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts
Rear lock lower part to rear lock carrier	Item 1	Tightening torque	21 (16 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts

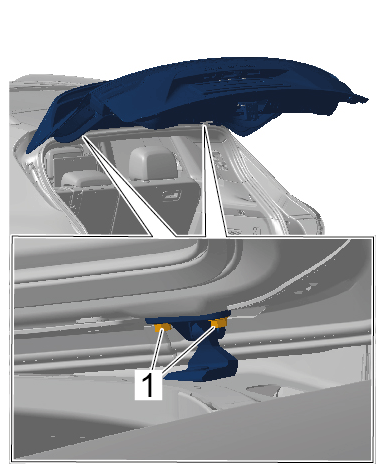

Rear lid to lid hinge	Item 1	Tightening torque	12 (9 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws

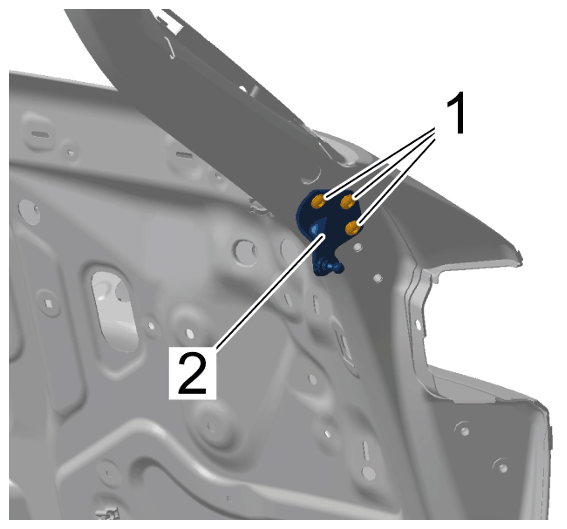

Rear lid hinge to bodyshell	Item 1	Tightening torque	23 (17 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening nut

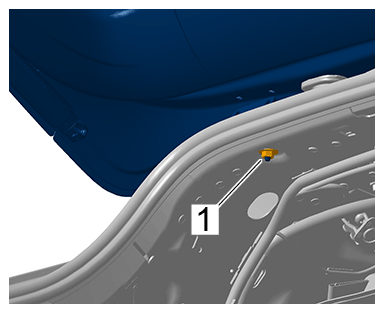

Fastening screws for ball joint	Item 1	Tightening torque	10 (7.5 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screw for ball joint

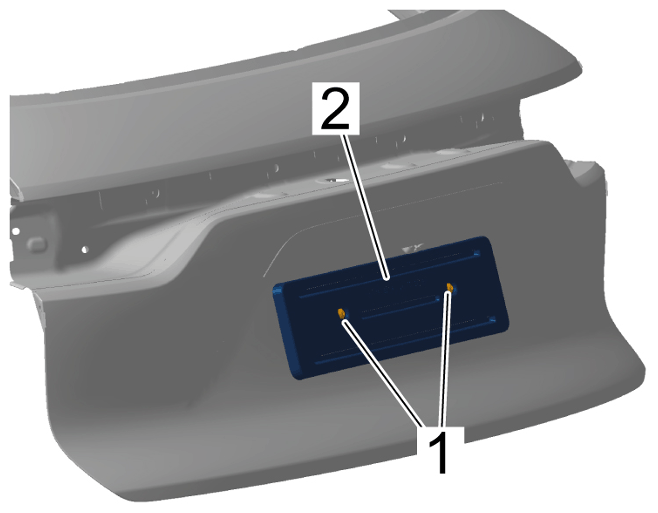

Fastening screws for number plate cover	Item 1	Tightening torque	4 (3 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Number plate cover

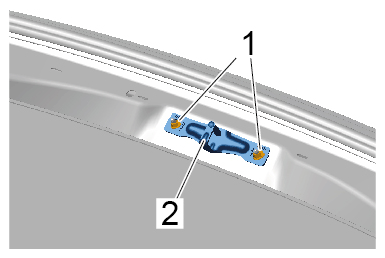

Guide wedge to rear lid	Item 1	Tightening torque	6 (4.5 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws
