Rear Lid (Coupe)

WARNING: This page is about a different car, the 2021 Porsche Cayenne and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on rear lid

1	Rear lid
2	> Tightening torque 12 f9 ftlb.l Nm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear lid hinge

1	Rear lid hinge
2	> Tightening torque 23 (17 ftlb.) Nm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for guide wedge

1	> Tightening torque 6 f4.5 ftlb.) Nm
2	Guide wedge

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Ball hitch

1	Ball hitch
2	>Tightening torque 10 (7.5 ftlb.) Nm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Number plate cover

1	> Tightening torque 4 (3 ftlb.) Nm
2	Number plate cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Upper part of lid lock, rear

1	Upper part of lid lock, rear
2	Cover section for anti-theft protection
3	Electric plug connection
4	>Tightening torque 30 (22 ftlb.) Nm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lower part of rear lid lock

1	>Tightening torque21 (l6 ftlb.) Nm
2	Lower part of rear lid lock

Location	Description	Type	Basic value	Tolerance

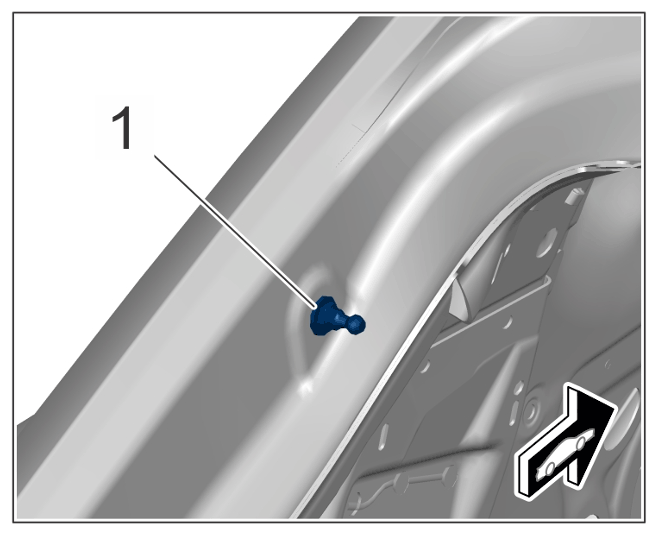

Ball joint for actuating cylinder to body	Item 1/Tighten again after a waiting time of 5 minutes	Tightening torque	25 (19 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Ball joint
