Rear Door

WARNING: This page is about a different car, the 2021 Porsche Cayenne and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value

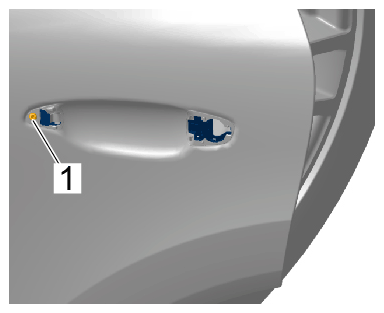

Screw securing door handle (inner part) to bodyshell	Item 1	Tightening torque	1.5 (1 ftlb.) Nm

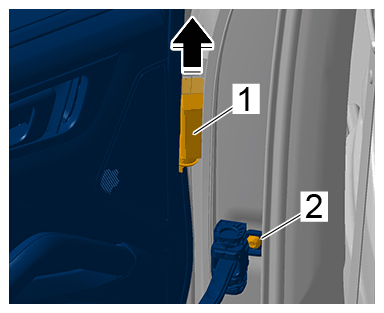

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw on door handle (inner part)

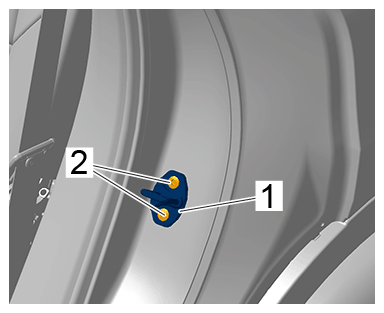

Lock peg to bodyshell	Item 2	Tightening torque	25 (19 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear striker pin (lock peg)
Door arrester to bodyshell	Item 1	Tightening torque	33 (24 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Electric plug connection

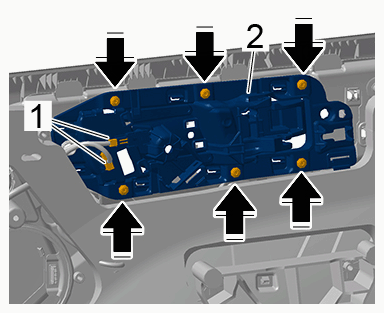

Door opener to door panel	Arrows	Tightening torque	2.8 (2.1 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Electric plug connections

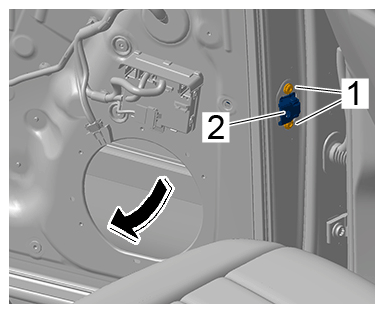

Door arrester to door	Item 1	Tightening torque	8 (6 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws for door arrester
Door hinge	Item 1	Tightening torque	27 (20 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws for door hinge

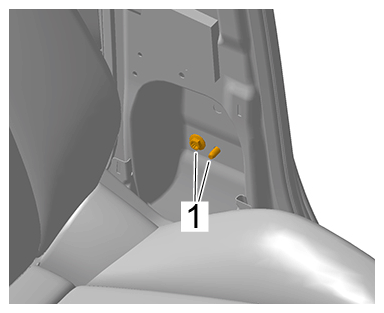

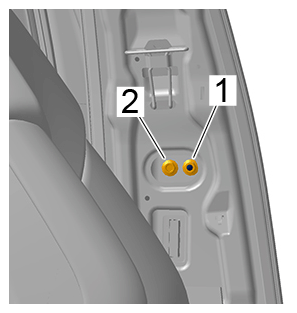

Door hinges to bodyshell	Items 1 and 2	Tightening torque	32 (24 ftlb.) Nm + 45°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening nut
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws

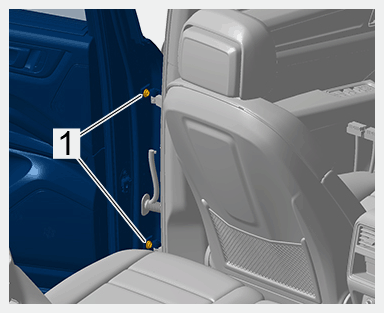

Fastening screws securing door hinges to door	Item 1	Tightening torque	50 (37 ftlb.) Nm

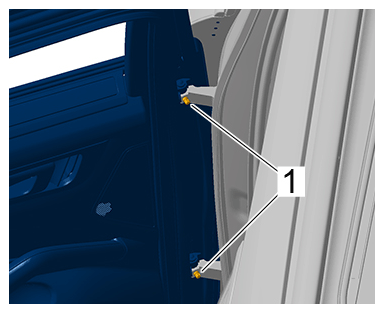

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws for door hinge (door side)

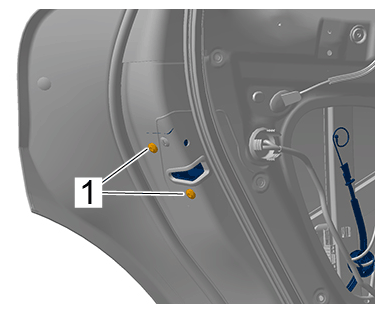

Door lock to door	Item 1	Tightening torque	19 (14 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws
