Headlight Mounting

WARNING: This page is about a different car, the 2021 Porsche Cayenne and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Location Description Type Basic va lue Tolerance
Fastening screws for headlight mounting Item 2 Tightening torque 6 (4.5 ftlb.) Nm

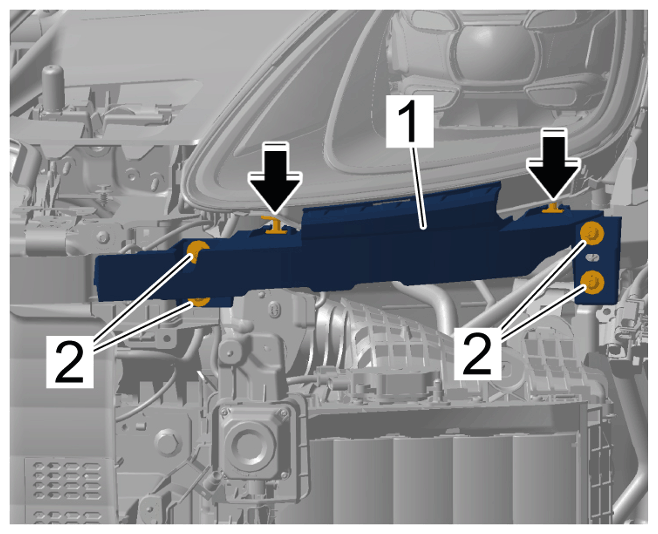

G14346401Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Headlight mounting
