Front Wheel Housing Liner

WARNING: This page is about a different car, the 2021 Porsche Cayenne and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value

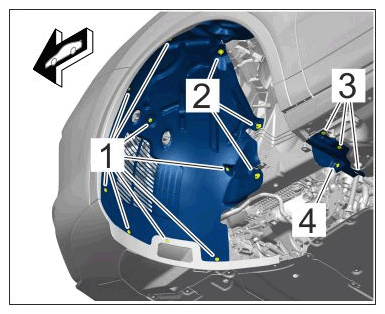

Screws securing front wheel housing liner to front end	Item 1 (screws)	Tightening torque	2.0 (1.5 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
Nuts securing front wheel housing liner to front end	Item 2	Tightening torque	2.5 (1.75 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts

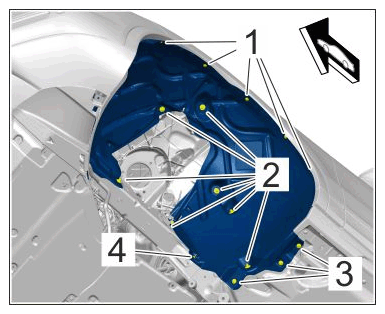

Screws securing front wheel housing liner to underbody	Item 3	Tightening torque	3.0 (2.0 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts

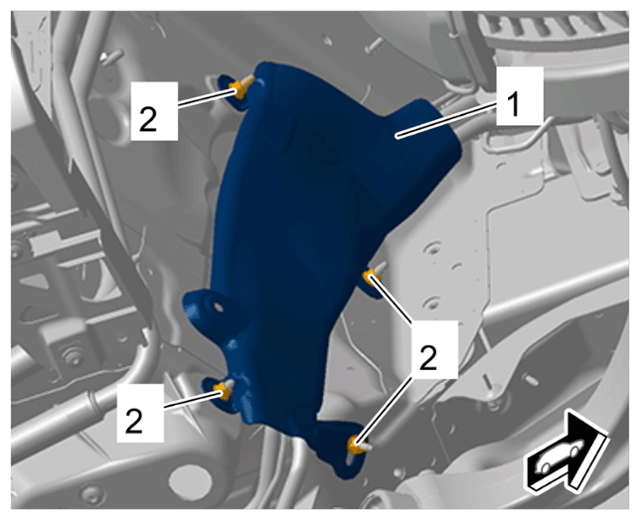

Cover for fuel line at front right wheel housing	Item 2	Tightening torque	4.5 (3.25 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Cover on fuel line, front right
