Front Door

WARNING: This page is about a different car, the 2021 Porsche Cayenne and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value

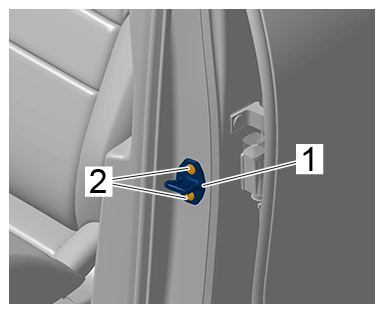

Lock peg to bodyshell	Item 2	Tightening torque	25 (19 ftlb.) Nm

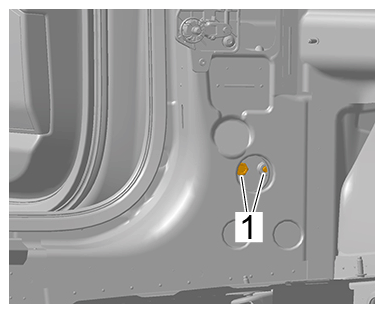

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Lock peg (striker pin)
Screw for door handle (inner part)	Item 1	Tightening torque	1.5 (1 ftlb.) Nm

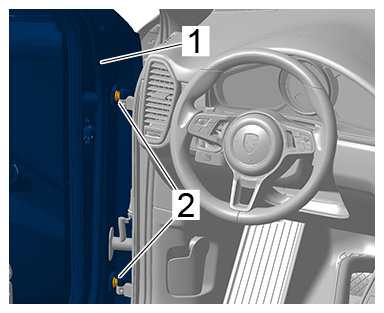

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw for door handle

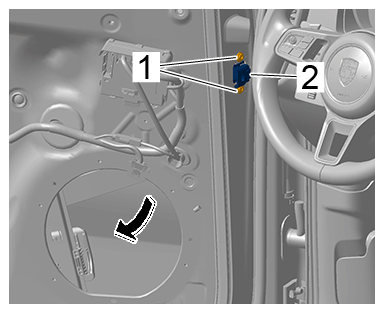

Adjusting screw for door handle in service position	Item 2	Tightening torque	3.5 (2.6 ftlb.) Nm

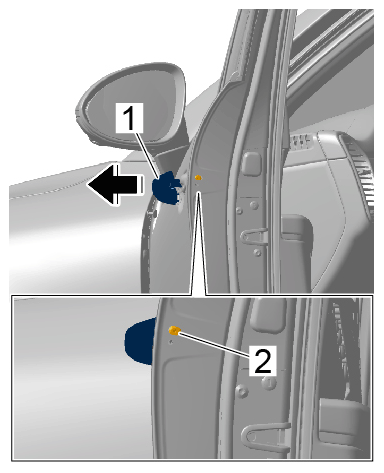

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Door handle in service position
Screw on door handle	Item 1	Tightening torque	2.5 (1.9 ftlb.) Nm

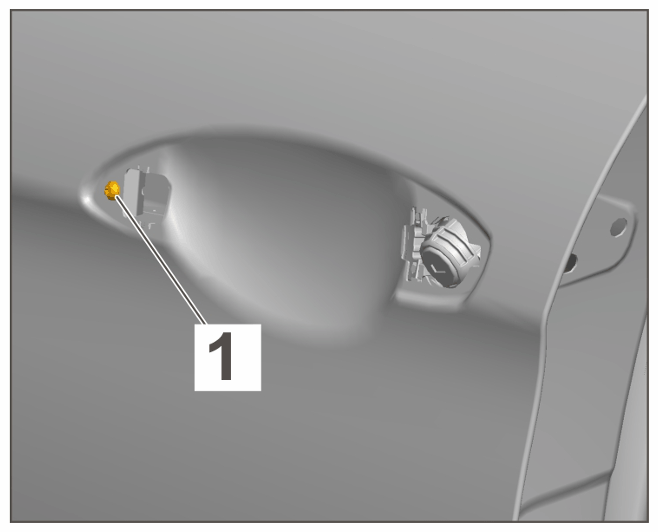

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw

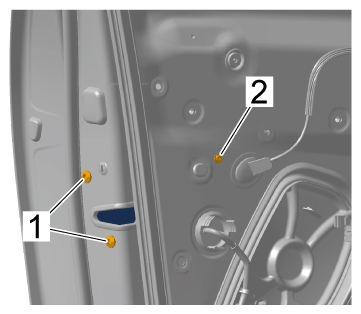

Door lock to door	Item 1	Tightening torque	19 (14 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Door lock
Fastening anti-theft protection cover to door	Item 2	Tightening torque	3.5 (2.6 ftlb.) Nm

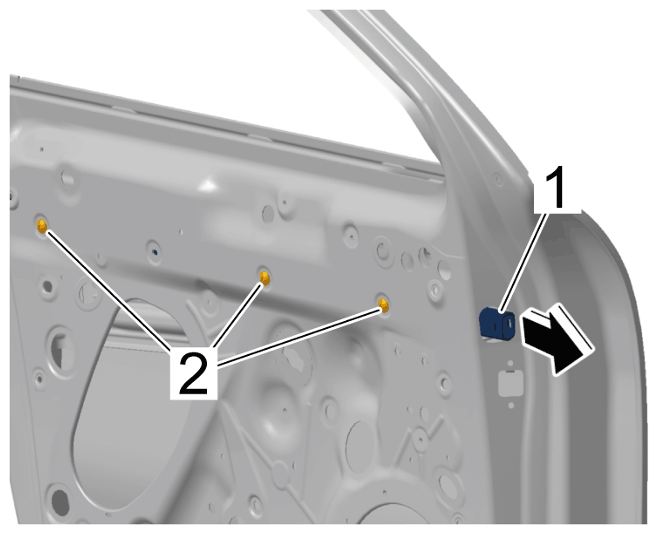

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Door lock

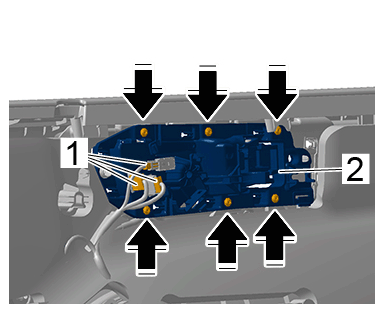

Door opener to door panel	Arrows	Tightening torque	2.8 (2.1 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

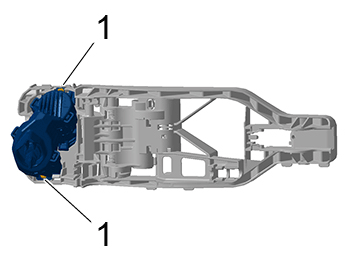

Lock cylinder to door handle inner part	Item 1	Tightening torque	0 (0 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
Door arrester to bodyshell	Item 1	Tightening torque	33 (24 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

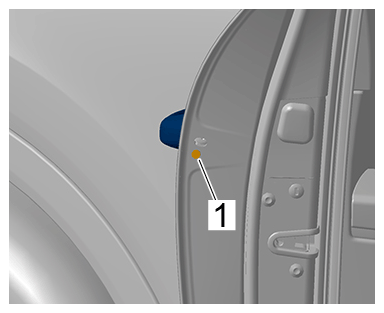

Door arrester to door	Item 1	Tightening torque	8 (6 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw securing door arrester to door

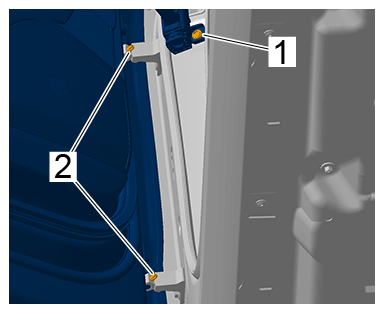

Door hinge	Item 2	Tightening torque	27 (20 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

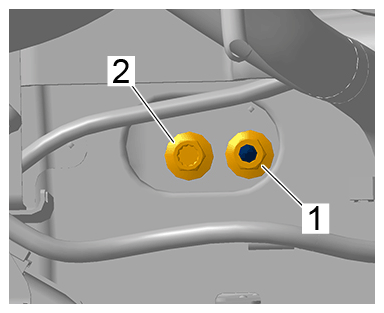

Door hinges to bodyshell	Items 1 and 2	Tightening torque	32 (24 ftlb.) Nm + 45°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Top nut
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Bottom nut
Screws securing door hinges to door	Item 1	Tightening torque	50 (37 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Door hinge
Screws securing guide rail to door	Item 1	Tightening torque	8 (6 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Guide rail
