Closing Aid Motor
WARNING: This page is about a different car, the 2021 Porsche Cayenne and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
| Location |
Description |
Type |
Basic value |
Tolerance |
| Screws for rear closing aid motor |
Item 1 |
Tightening torque |
2.6 (1.8 ftlb.) Nm |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.

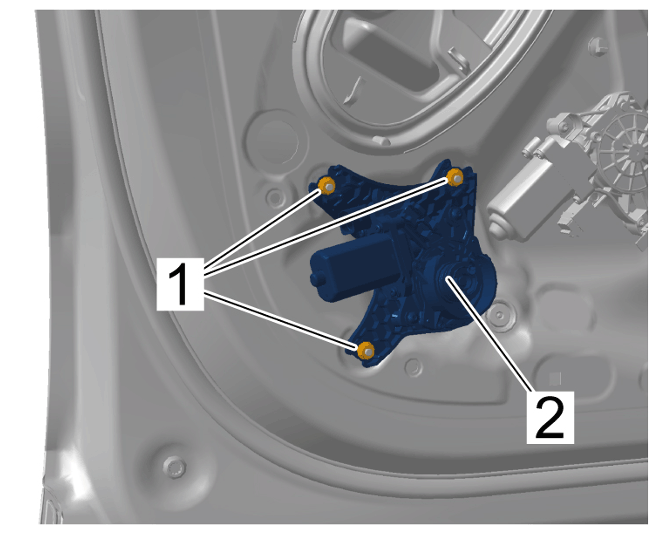

Fastening screws for closing aid motor |
|
|
|
|
| Front closing aid motor to front door |
Item 1 |
Tightening torque |
7.5 (5.5 ftlb.) Nm |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Nuts |
|
|
|
|
