WM, 5X00IN40 Technical Values: Notes

WARNING: This page is about a different car, the 2021 Porsche Cayenne and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

TECHNICAL VALUES SPECIFICATION

Location Description Type Basic value Tolerance 1 Tolerance 2

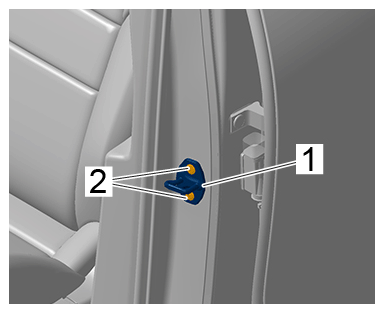

Lock peg to bodyshell Item 2 Tightening torque 25 (19ftlb.) Nm
G14346203Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lock peg (striker pin)

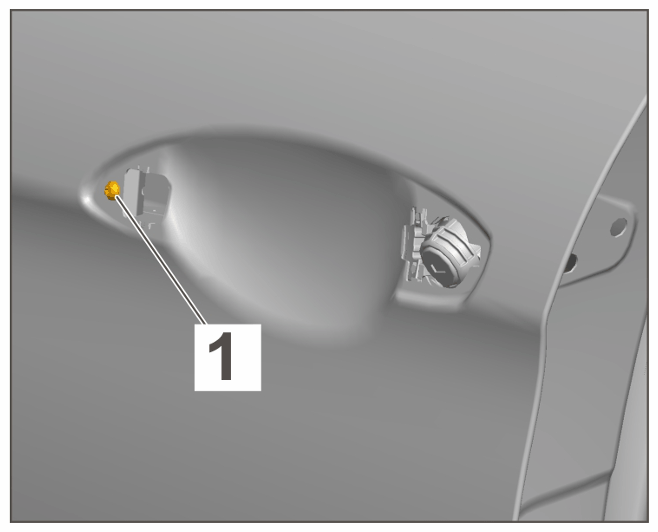

Screw for door handle (inner part) Item 1 Tightening torque 1.5 (1 ftlb.) Nm
G14346204Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw for door handle

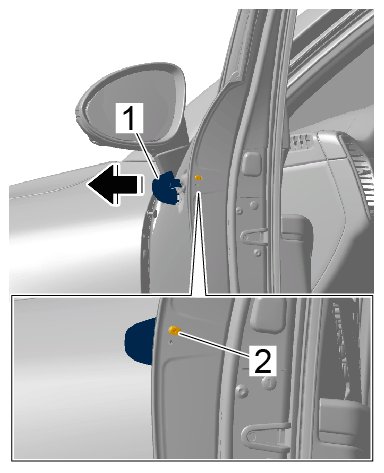

Adjusting screw for door handle in service position Item 2 Tightening torque 3.5 (2.6 ftlb.) Nm
G14346205Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Door handle in service position

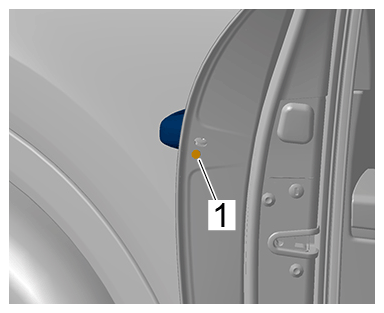

Screw on door handle Item 1 Tightening torque 2.5 (1.9 ftlb.) Nm
G14346206Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw
Door lock to door Item 1 Tightening torque 19 (14 ftlb.) Nm
G14346207Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Door lock

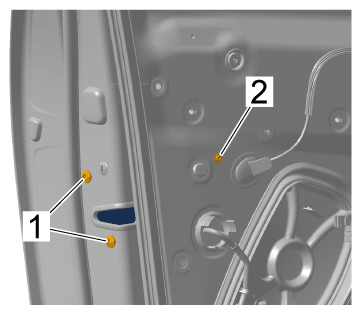

Fastening anti-theft protection cover to door Item 2 Tightening torque 3.5 (2.6 ftlb.) Nm
G14346208Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Door lock

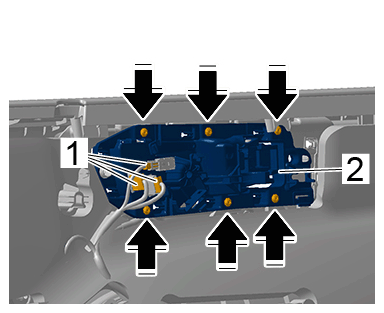

Door opener to door par el Arrows Tightening torque 2.8 (2.1 ftlb.) Nm
G14346209Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

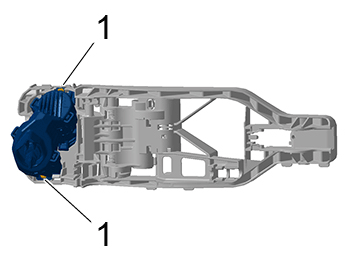

Lock cylinder to door handle inner part Item 1 Tightening torque 0 (0 ftlb.) Nm
G14346210Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

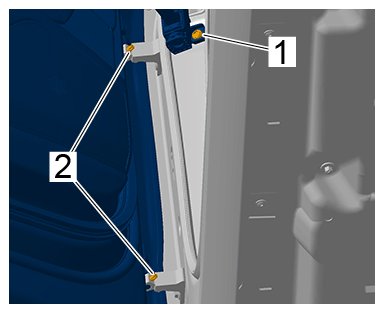

Door arrester to bodyshell Item 1 Tightening torque 33 (24 ftlb.) Nm
G14346211Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

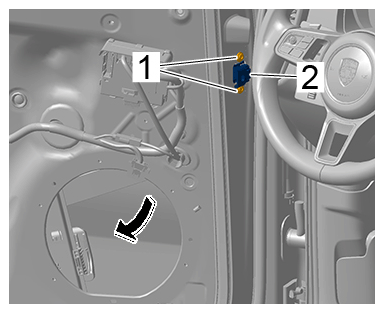

Door arrester to door Item 1 Tightening torque 8 (6 ftlb.) Nm
G14346212Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw securing door arrester to door
Door hinge Item 2 Tightening torque 27 (20 ftlb.) Nm
G14346213Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

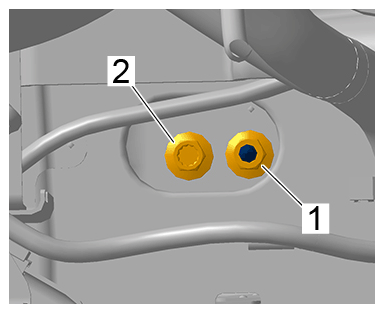

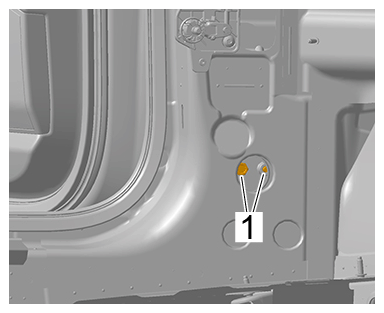

Door hinges to bodyshell Items 1 and 2 Tightening torque 32 (24 ftlb.) Nm<br/>+ 45 °
G14346214Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Top nut
G14346215Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bottom nut

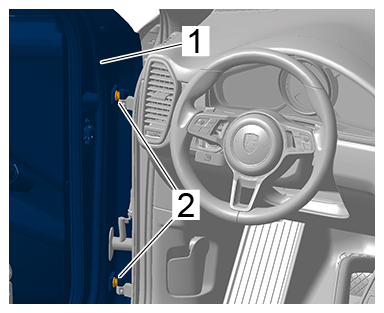

Screws securing door hinges to door Item 1 Tightening torque 50 (37 ftlb.) Nm
G14346216Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Door hinge

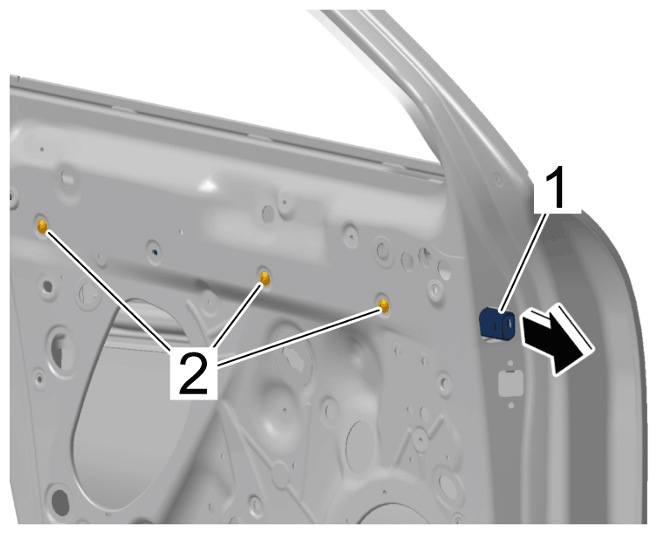

Screws securing guide rail to door Item 1 Tightening torque 8 (6 ftlb.) Nm
G14346217Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Guide rail

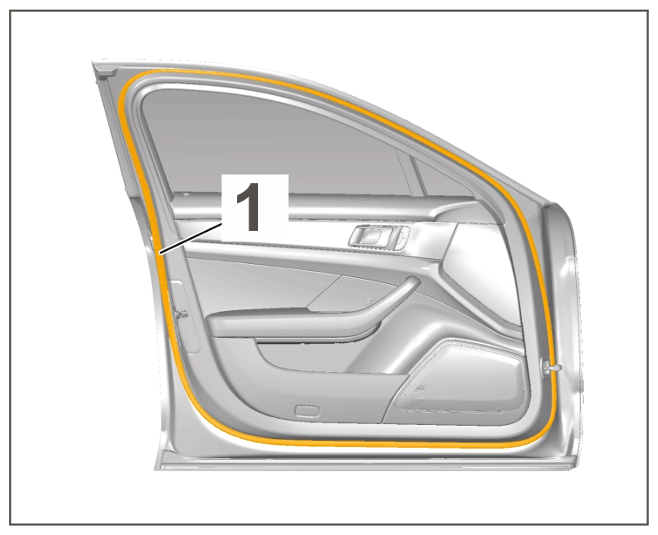

Contact force on bonding area on door   Contact force 50 N
G14346218Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bonding area on door

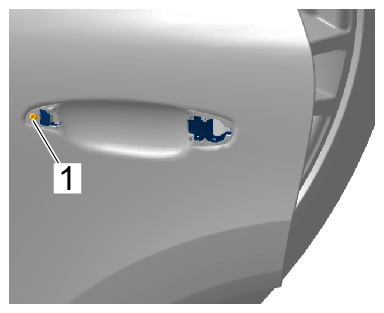

Screw securing door handle (inner part) to bodyshell Item 1 Tightening torque 1.5 (1 ftlb.) Nm
G14346219Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw on door handle (inner part)

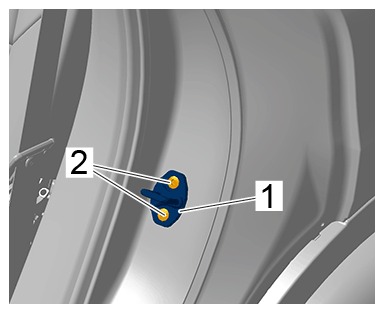

Lock peg to bodyshell Item 2 Tightening torque 25 (19 ftlb.) Nm
G14346220Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear striker pin (lock peg)

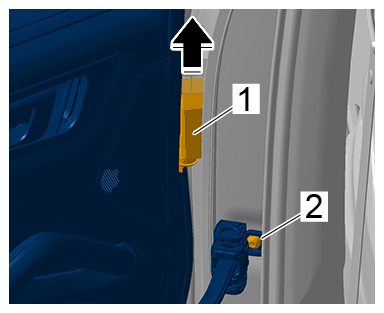

Door arrester to bodyshell Item 1 Tightening torque 33 (24 ftlb.) Nm
G14346221Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection

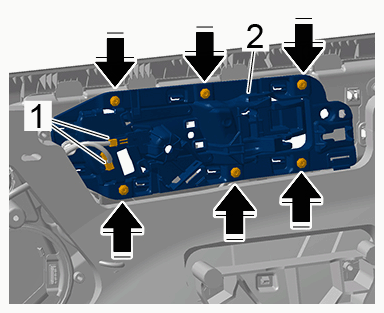

Door opener to door panel Arrows Tightening torque 2.8 (2.1 ftlb.) Nm
G14346222Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connections

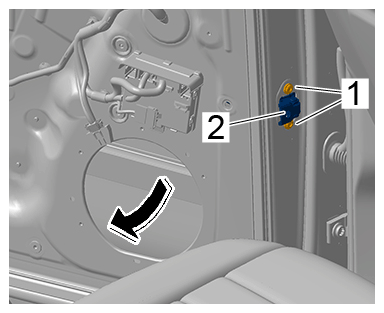

Door arrester to door Item 1 Tightening torque 8 (6 ftlb.) Nm
G14346223Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws for door arrester

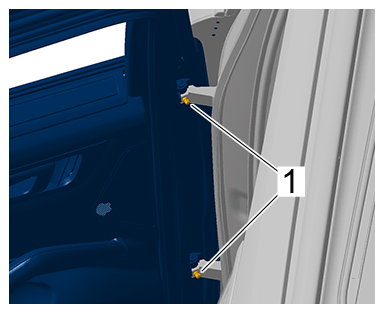

Door hinge Item 1 Tightening torque 27 (20 ftlb.) Nm
G14346224Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws for door hinge

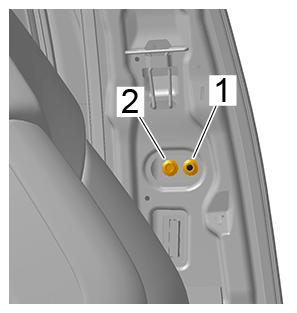

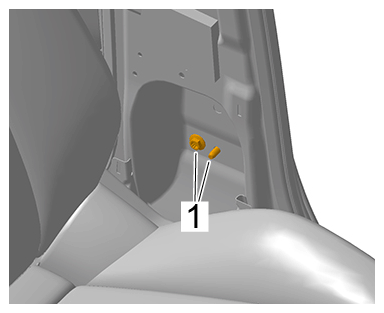

Door hinges to bodyshell Items 1 and 2 Tightening torque 32 (24 ftlb.) Nm<br/>+ 45 °
G14346225Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening nut
G14346226Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws

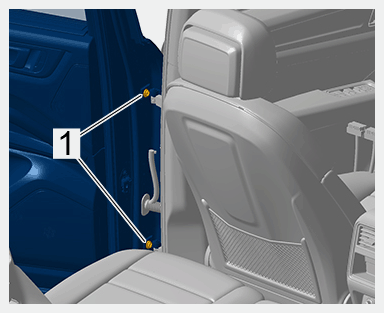

Fastening screws securing door hinges to door Item 1 Tightening torque 50 (37 ftlb.) Nm
G14346227Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws for door hinge (door side)

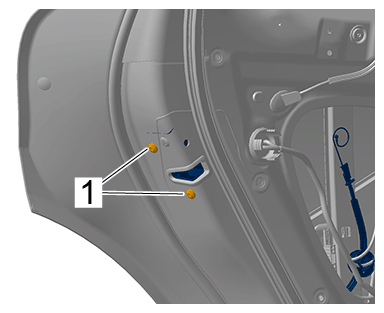

Door lock to door Item 1 Tightening torque 19 (14 ftlb.) Nm
G14346228Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws
Contact force for bonding outer seal for rear door   Contact force 50 N

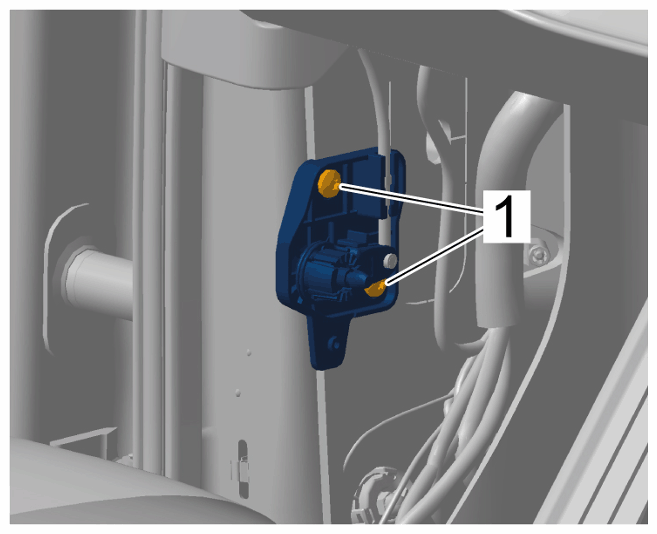

Fastening screws for front lid release Item 1 Tightening torque 2 (1.5 ftlb.) Nm
G14346229Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws

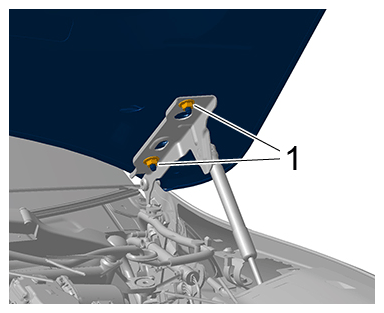

Lid to lid hinge Item 1 Tightening torque 24 (18 ftlb.) Nm
G14346230Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts

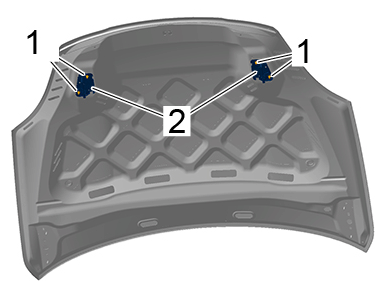

Upper part of lid lock to lid Item 1 Tightening torque 8 (6 ftlb.) Nm
G14346231Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Upper part of lid lock

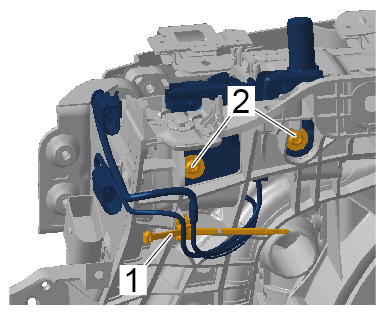

Lower part of lock to lock carrier Item 2 Tightening torque 11 (8 ftlb.) Nm
G14346232Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws

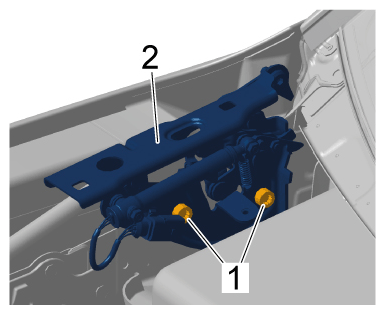

Front lid hinge to bodyshell Item 1 Tightening torque 21 (16 ftlb.) Nm
G14346233Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front lid hinge

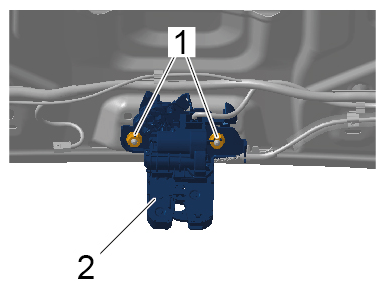

Rear lock upper part to rear lid Item 1 Tightening torque 21 (16 ftlb.) Nm
G14346234Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts

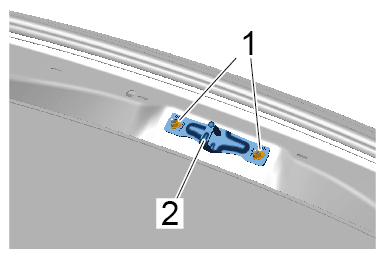

Rear lock lower part to rear lock carrier Item 1 Tightening torque 21 (16 ftlb.) Nm
G14346235Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts

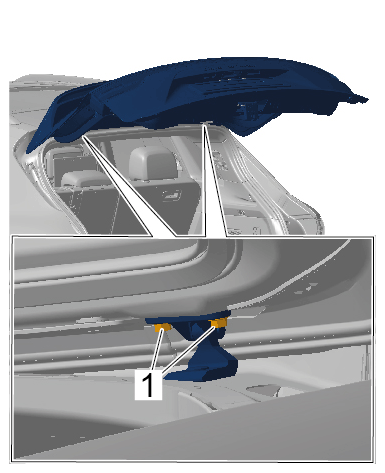

Rear lid to lid hinge Item 1 Tightening torque 12 (9 ftlb.) Nm
G14346236Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws

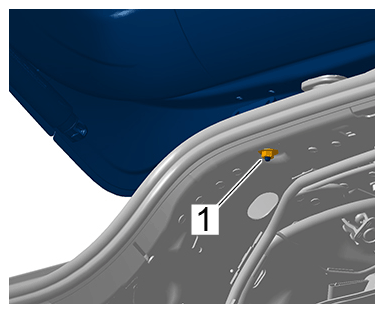

Rear lid hinge to bodyshell Item 1 Tightening torque 23 (17 ftlb.) Nm
G14346237Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening nut

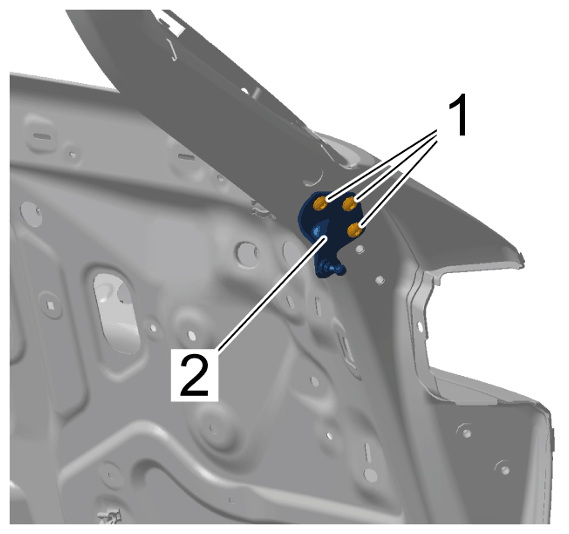

Fastening screws for ball joint Item 1 Tightening torque 10 (7.5 ftlb.) Nm
G14346238Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screw for ball joint

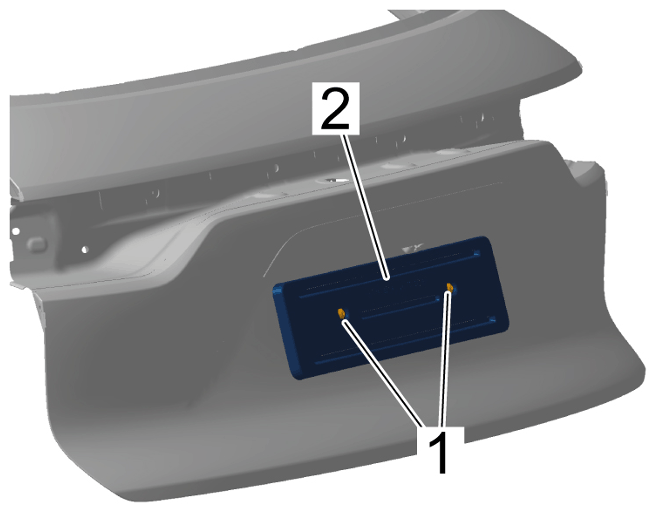

Fastening screws for number plate cover Item 1 Tightening torque 4 (3 ftlb.) Nm
G14346239Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Number plate cover

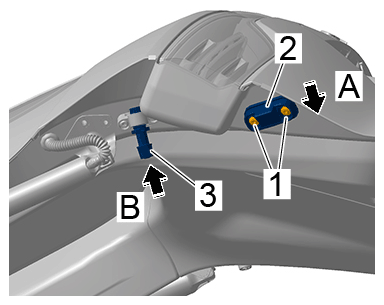

Guide wedge to rear lid Item 1 Tightening torque 6 (4.5 ftlb.) Nm
G14346240Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws
Rear lid to lid hinge   Tightening torque 12 (9 ftlb.) Nm
Nut securing rear lid hinge to bodyshell   Tightening torque 23 (17 ftlb.) Nm
Screws securing guide wedge to rear lid   Tightening torque 6 (4.5 ftlb.) Nm
Screws securing ball hitch to rear lid   Tightening torque 10 (7.5 ftlb.) Nm
Screws for number plate cover   Tightening torque 4 (3 ftlb.) Nm
Screws for upper part of rear lid lock   Tightening torque 30 (22 ftlb.) Nm
Screws securing lower part of rear lid lock to lock carrier   Tightening torque 21 (16 ftlb.) Nm

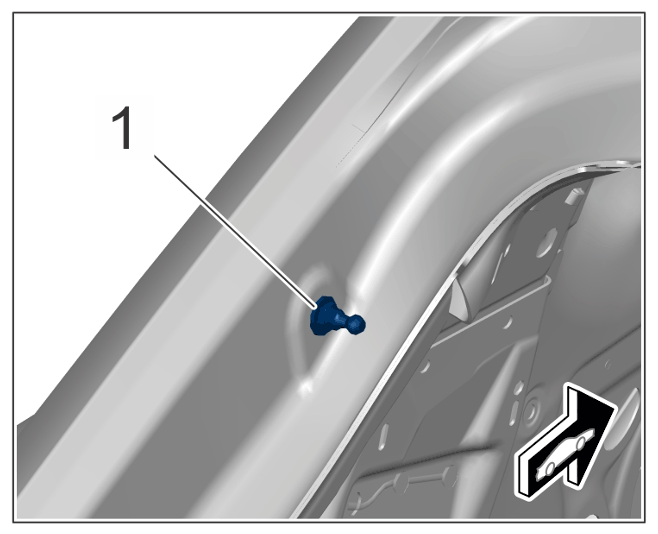

Ball joint for actuating cylinder to body Item 1/Tighten again after a waiting time of 5 minutes Tightening torque 25 (19 ftlb.) Nm
G14346241Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Ball joint

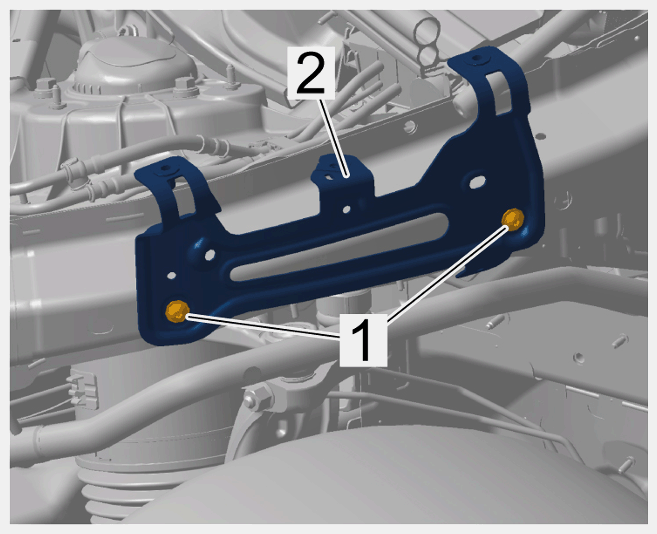

Front wing connection panel to upper front-end Item 1 Tightening torque 10 (7.5 ftlb.) Nm
G14346242Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

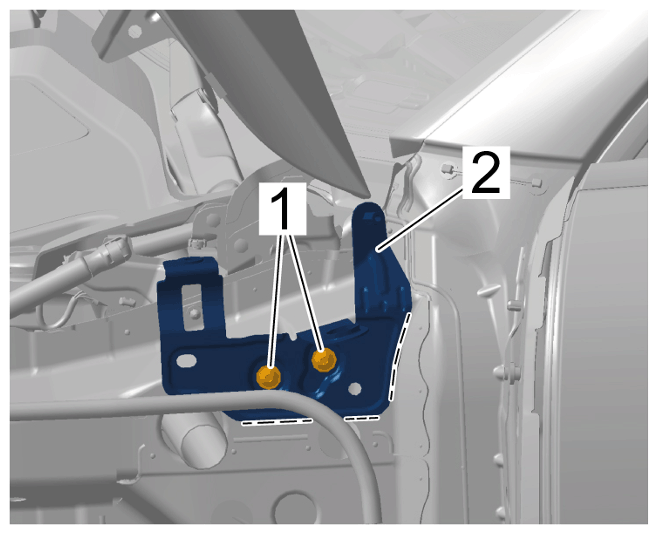

Rear wing connection panel to upper front-end Item 1 Tightening torque 10 (7.5 ftlb.) Nm
G14346243Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

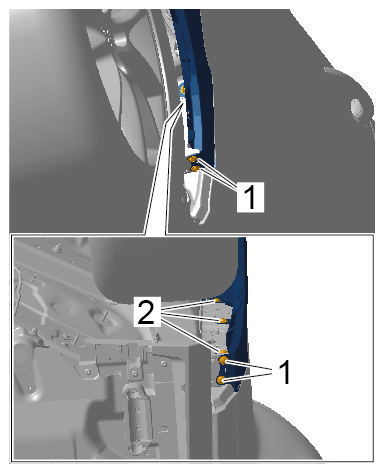

Front wing to lower front-end Item 1 and 2 Tightening torque 10 (7.5 ftlb.) Nm
G14346244Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws

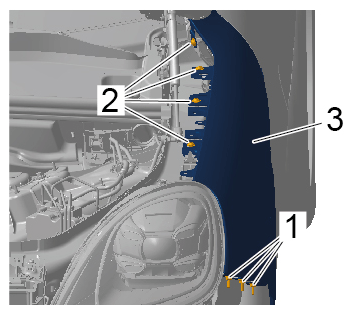

Front wing to upper front-end Item 1 and 2 Tightening torque 10 (7.5 ftlb.) Nm
G14346245Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws

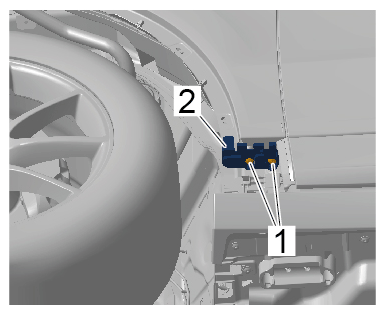

Bracket to wing Item 1 Tightening torque 2 (1.5 ftlb.) Nm
G14346246Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws

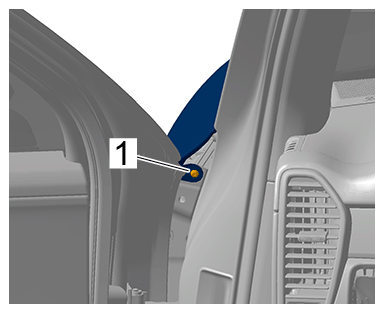

Front wing - rear fastening screw, top Item 1 Tightening torque 2 (1.5 ftlb.) Nm
G14346247Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Upper fastening screw

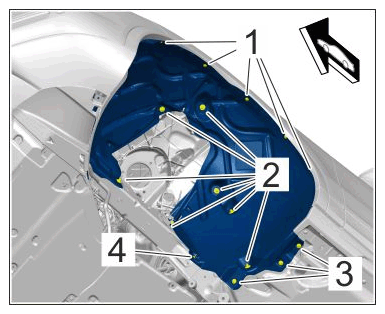

Screws securing front wheel housing liner to front end Item 1 (screws) Tightening torque 2.0 (1.5 ftlb.) Nm
G14346248Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
G14346249Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Nuts securing front wheel housing liner to front end Item 2 Tightening torque 2.5 (1.75 ftlb.) Nm
G14346250Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts
G14346251Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts

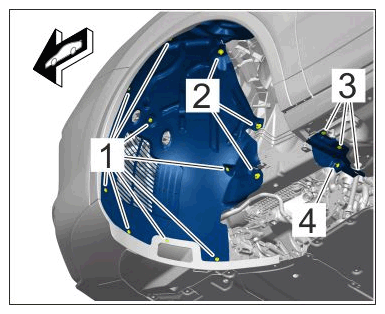

Screws securing front wheel housing liner to underbody Item 3 Tightening torque 3.0 (2.0 ftlb.) Nm
G14346252Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts
G14346253Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts

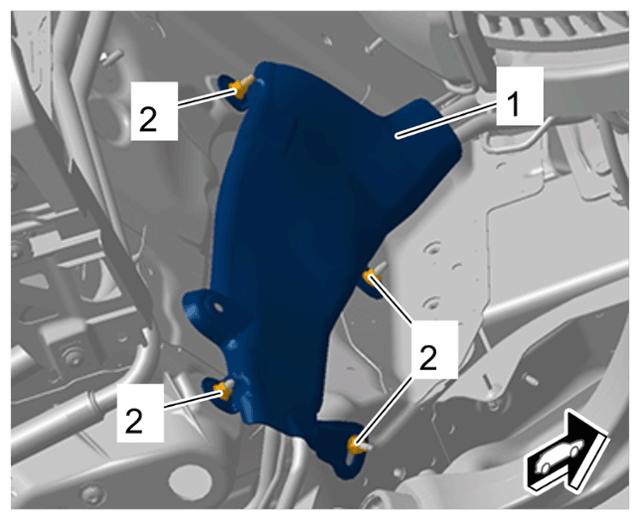

Cover for fuel line at front right wheel housing Item 2 Tightening torque 4.5 (3.25 ftlb.) Nm
G14346254Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover on fuel line, front right

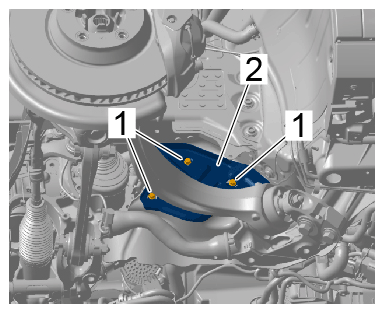

Front heat shield, side Item 1 Tightening torque 9 (6.5 ftlb.) Nm
G14346255Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front heat shield, side

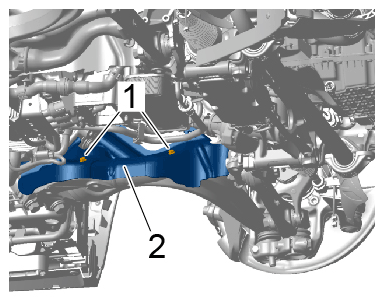

Front heat shield, bottom Item 1 Tightening torque 9 (6.5 ftlb.) Nm
G14346256Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front heat shield, bottom

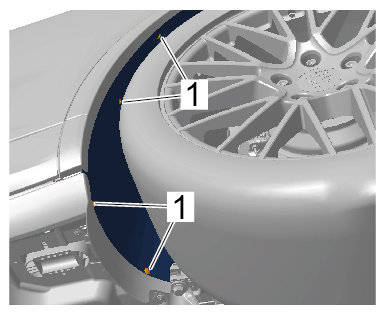

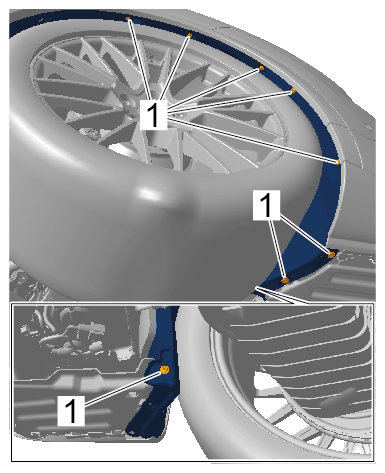

Fastening screw for rear wheel housing liner Item 1 Tightening torque 2 (1.5 ftlb.) Nm
G14346257Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screw for wheel housing liner
G14346258Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screw for wheel housing liner

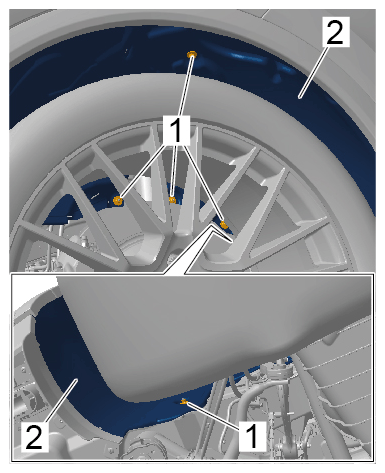

Nuts on rear wheel housing liner Item 1 Tightening torque 2.5 (1.75 ftlb.) Nm
G14346259Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts on wheel housing liner

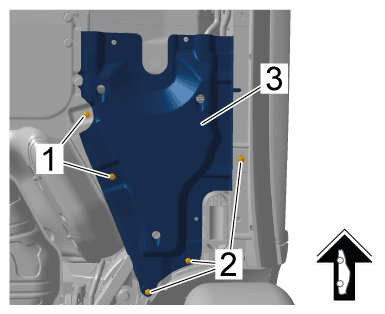

Fastening screw for rear underbody cover, left Item 2 Tightening torque 3 (2 ftlb.) Nm
G14346260Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on rear underbody cover, left

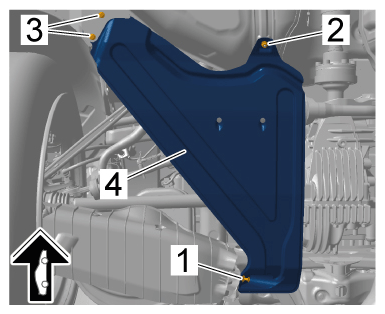

Nut for rear underbody cover, right Item 2 Tightening torque 2 (1.5 ftlb.) Nm
G14346261Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for rear cover, right
Screw for rear underbody cover, right Item 3 Tightening torque 2 (1.5 ftlb.) Nm
G14346262Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on rear underbody cover, right

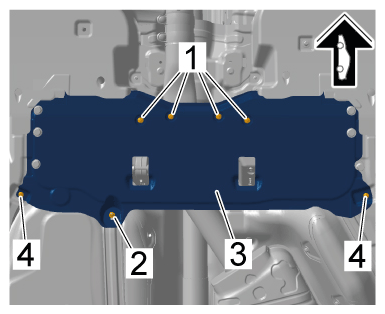

Nut for rear underbody cover Item 2 Tightening torque 2 (1.5 ftlb.) Nm
G14346263Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear underbody cover, centre
Screws for rear underbody cover Item 4 Tightening torque 3 (2 ftlb.) Nm
G14346264Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear underbody cover, centre

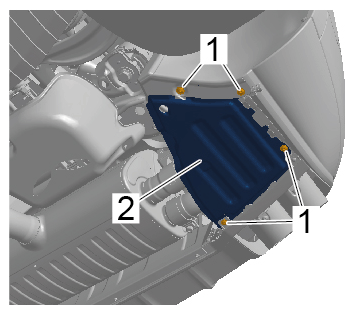

Rear underbody cover to bumper Item 1 Tightening torque 3 (2 ftlb.) Nm
G14346265Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on rear underbody cover, left

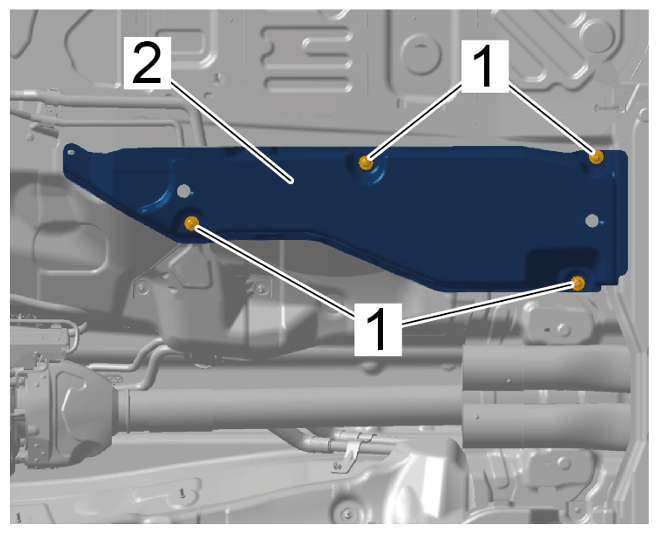

Tunnel cover, left Item 1 Tightening torque 2 (1.5 ftlb.) Nm
G14346266Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Underbody cover, left

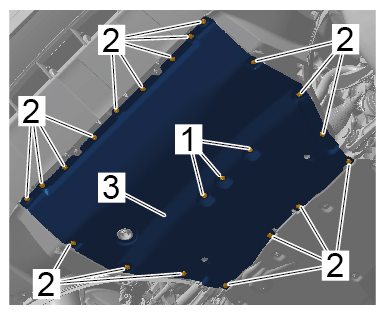

Front section of front underbody cover Item 2 Tightening torque 3 (2 ftlb.) Nm
G14346267Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front section of front underbody cover
Front section of front underbody cover Item 1 Tightening torque 6 (4.5 ftlb.) Nm
G14346268Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front section of front underbody cover

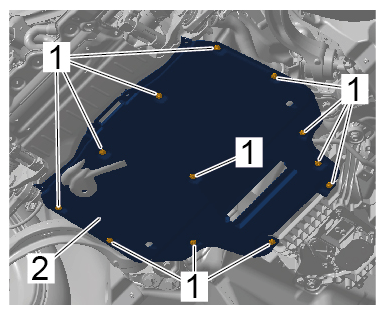

Rear section of front underbody cover Item 1 Tightening torque 3 (2 ftlb.) Nm
G14346269Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear section of front underbody cover

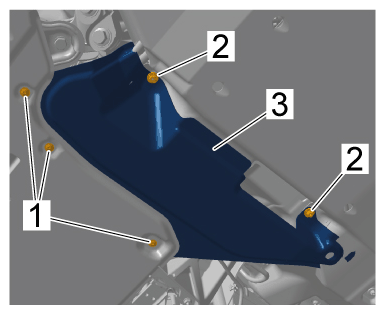

Side section of front underbody cover Item 2 Tightening torque 3 (2 ftlb.) Nm
G14346270Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws for front underbody cover

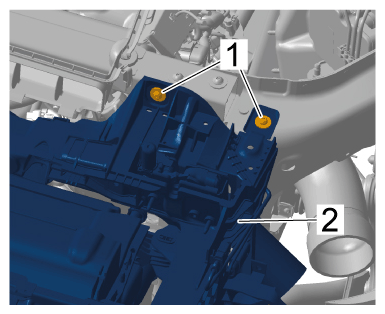

Screws securing upper lock carrier to body front section Item 1 Tightening torque 8 (6 ftlb.) Nm
G14346271Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

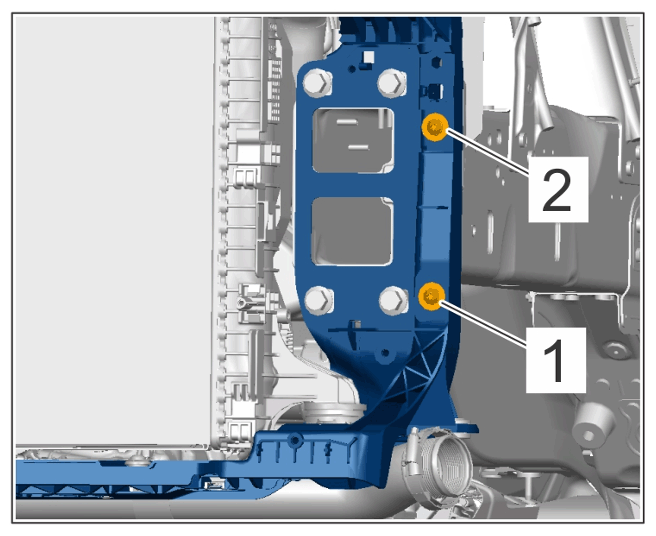

Bottom screw securing lower lock carrier to longitudinal member (off-road) Item 1 Tightening torque 10 (7.5 ftlb.) Nm
G14346272Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw
Top screw securing lower lock carrier to longitudinal member (off-road) Item 2 Tightening torque 25 (19 ftlb.) Nm
G14346273Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

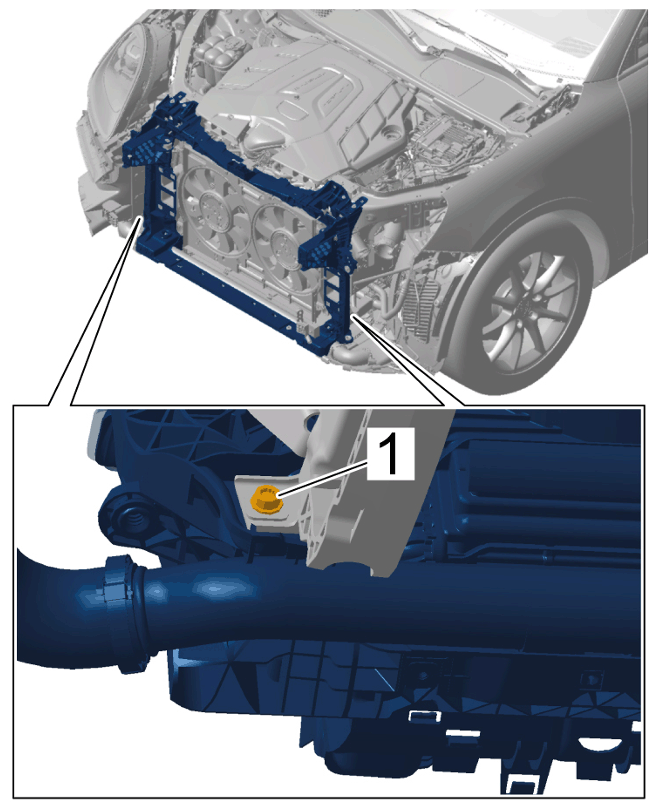

Screws securing lower lock carrier to longitudinal member Item 1 Tightening torque 23 (17 ftlb.) Nm
G14346274Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Screw securing radiator holder to lock carrier Item 1 Tightening torque 8 (6 ftlb.) Nm
G14346275Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw for radiator holder

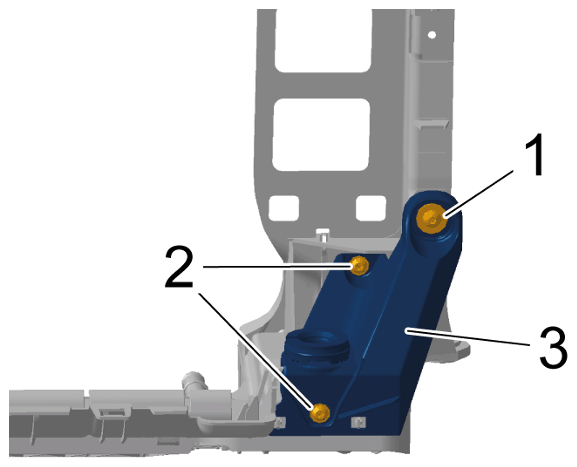

Screws securing radiator holder to lock carrier at the side Item 2 Tightening torque 8 (6 ftlb.) Nm
G14346276Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for radiator holder

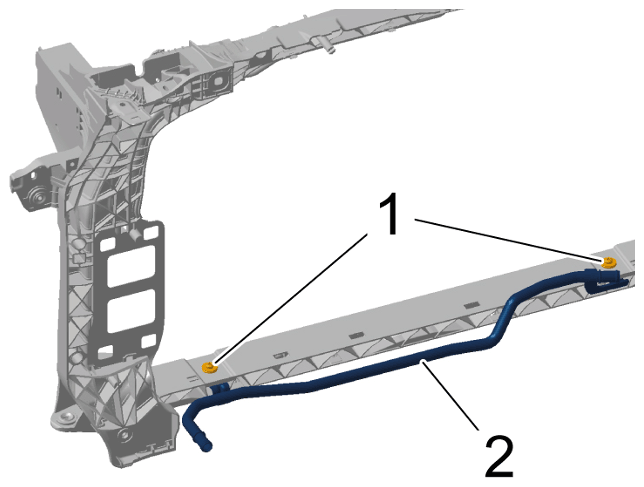

Screws securing lower coolant line to lock carrier Item 1 Tightening torque 8 (6 ftlb.) Nm
G14346277Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Screws securing lock carrier lower part to loch carrier upper part (off-road) Item 1 Tightening torque 9 (6.5 ftlb.) Nm

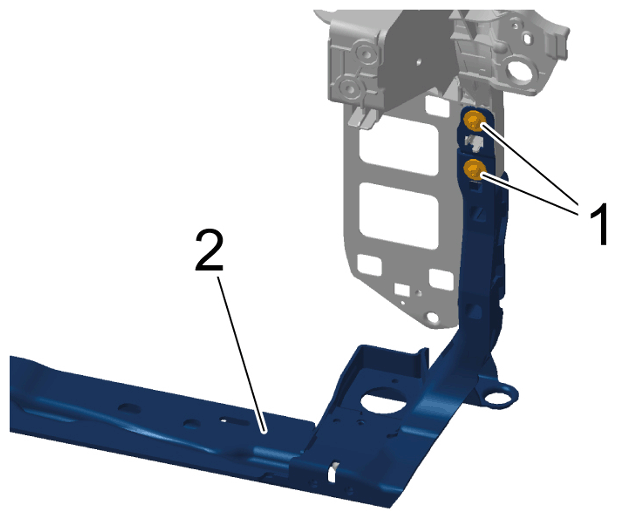

G14346278Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for lower part of lock carrier

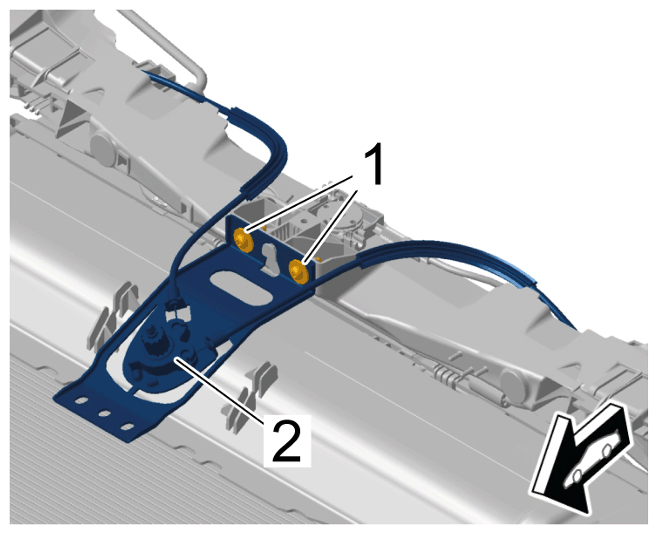

Screws securing lid lock cable to carrier module Item 1 Tightening torque 8 (6 ftlb.) Nm
G14346279Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws and release element
Fastening screws for centre underbody cover Item 2 and 3 Tightening torque 3 (2 ftlb.) Nm
G14346280Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover for centre underbody
Fastening nuts for centre underbody cover Item 1 Tightening torque 2 (1.5 ftlb.) Nm

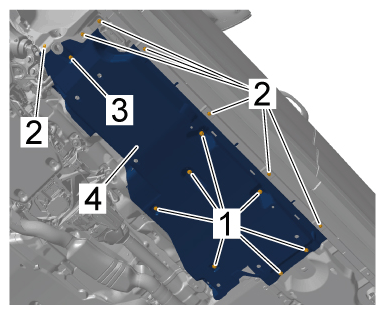

G14346281Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover for centre underbody

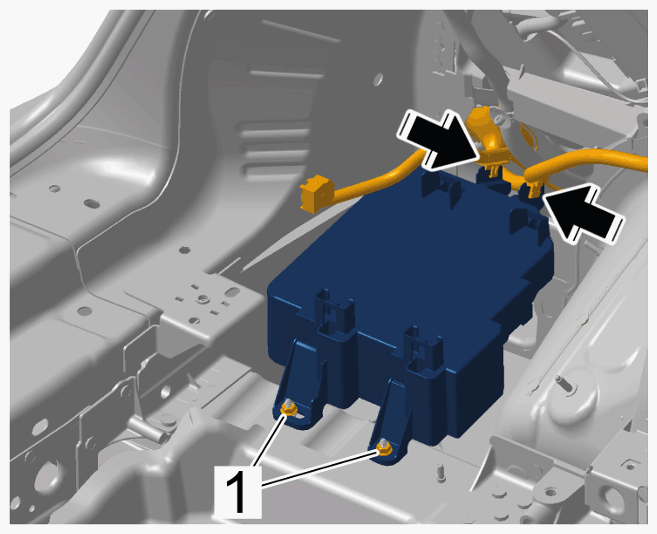

Fastening nuts for rear-end electronics control unit holder Item 1 Tightening torque 3 (2 ftlb.) Nm
G14346282Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric wire harness
Fastening screws for headlight mounting Item 2 Tightening torque 6 (4.5 ftlb.) Nm

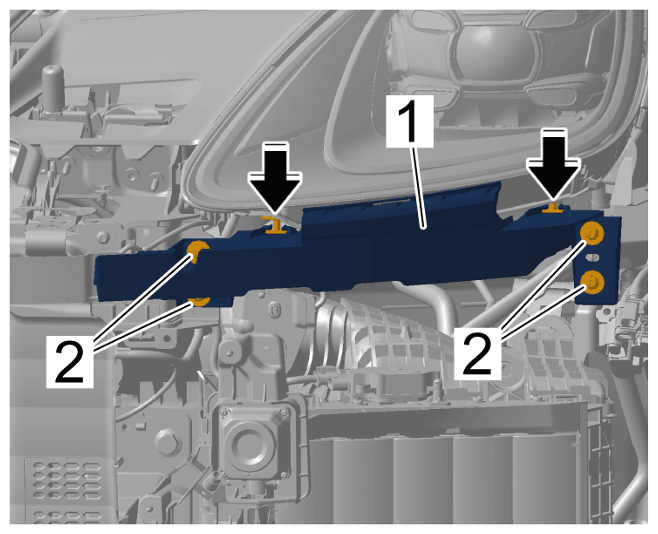

G14346283Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Headlight mounting
FDS screws in front side member (front section)   Tightening torque 24 (18 ftlb.) Nm

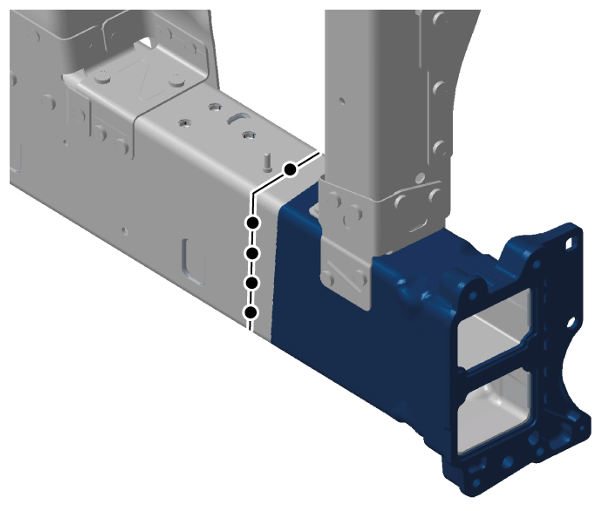

G14346284Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Inner screws

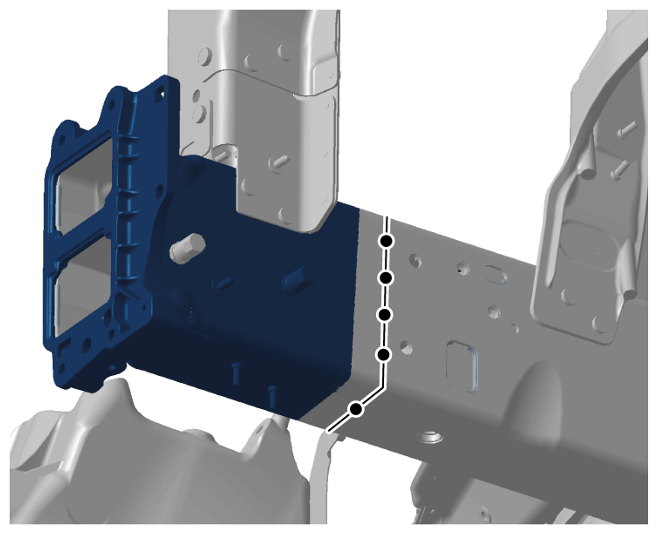

G14346285Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Inner bores

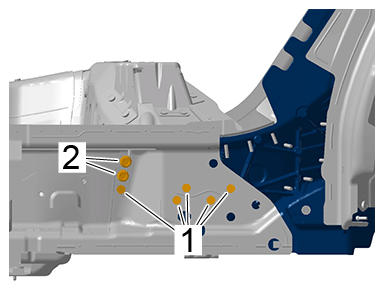

Screws for rear side member Item 2 Tightening torque 0 (0 ftlb.) Nm
G14346286Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for rear side member
Fastening screws for support Items 2, 3 Tightening torque 10 (7.5 ftlb.) Nm

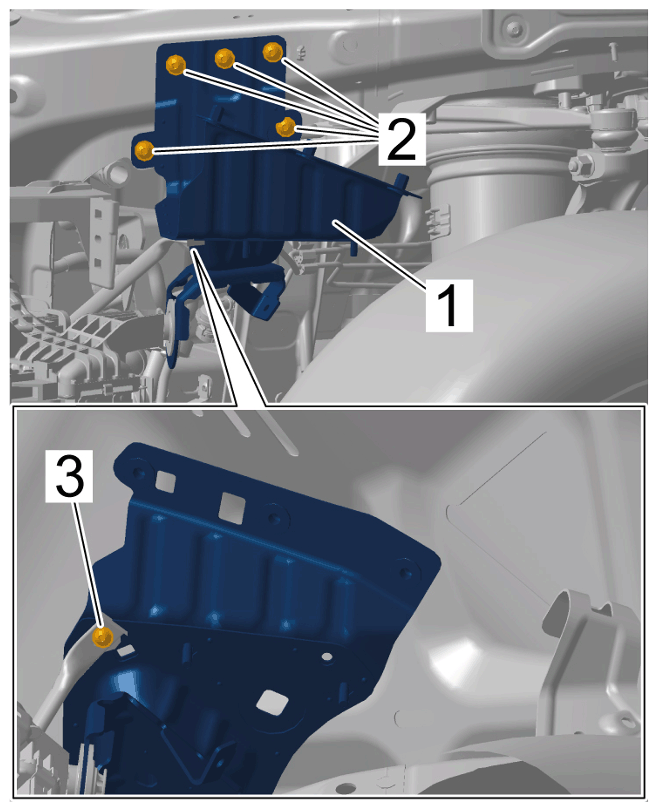

G14346287Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws

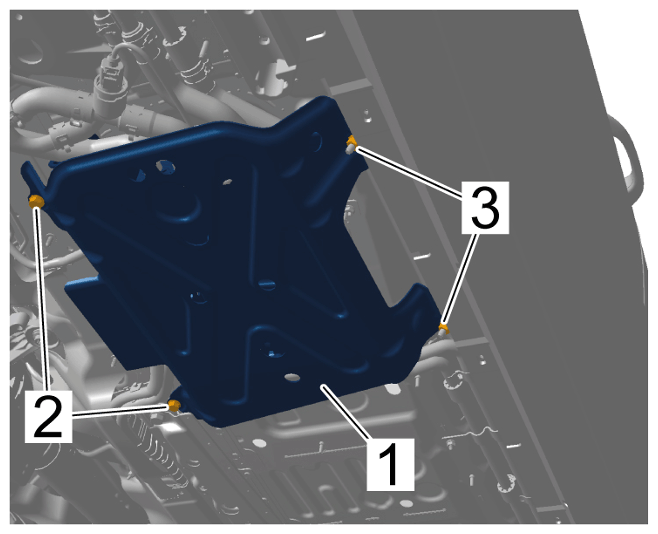

Fastening nuts for cover on power electronics for high-voltage system Item 3 Tightening torque 25 (19 ftlb.) Nm
G14346288Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Underride guard
Fastening screws for cover on power electronics for high-voltage system Item 2 Tightening torque 25 (19 ftlb.) Nm
G14346289Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Underride guard
Screws for rear closing aid motor Item 1 Tightening torque 2.6 (1.8 ftlb.) Nm

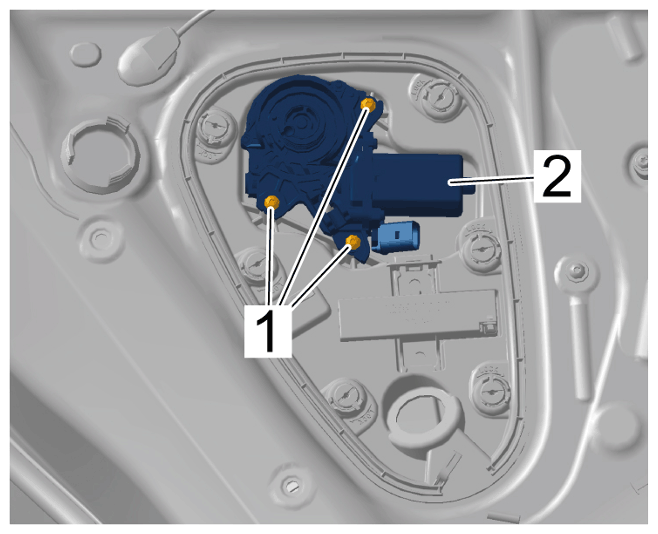

G14346290Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws for closing aid motor

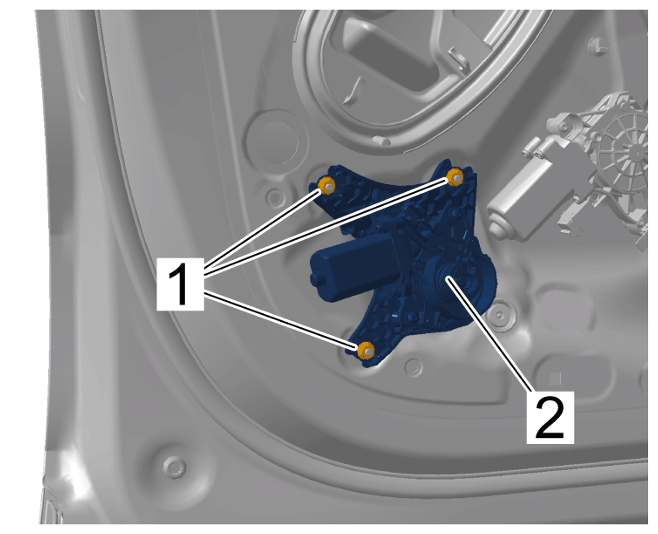

Front closing aid motor to front door Item 1 Tightening torque 7.5 (5.5 ftlb.) Nm
G14346291Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts
Heat shield on underbody, right Item 2 Tightening torque 2.5 (1.75 ftlb.) Nm

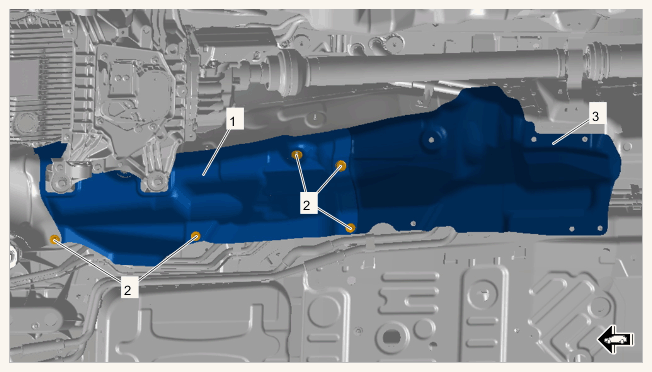

G14346292Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shields on right underbody
Heat shield on centre tunnel, left Item 1 Tightening torque 2.5 (1.75 ftlb.) Nm

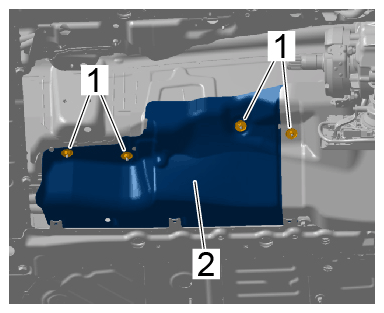

G14346293Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shield

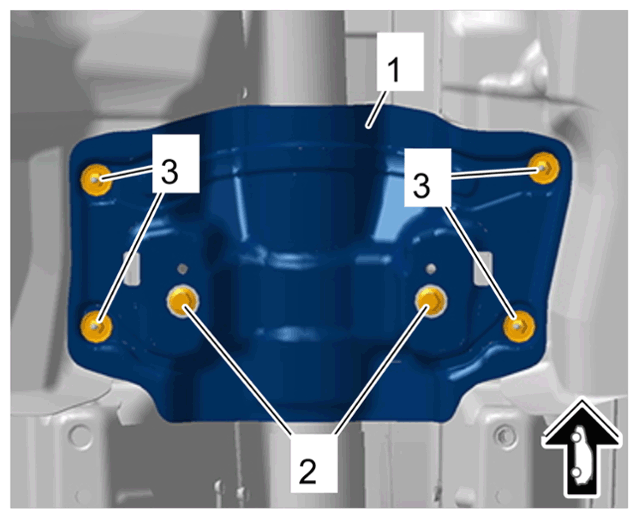

Heat shield on cardan shaft centre bearing Item 3 Tightening torque 2.1 (1.5 ftlb.) Nm
G14346294Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shield for cardan shaft
Cardan shaft centre bearing Item 2 Tightening torque 20 (15 ftlb.) Nm
G14346295Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shield for cardan shaft

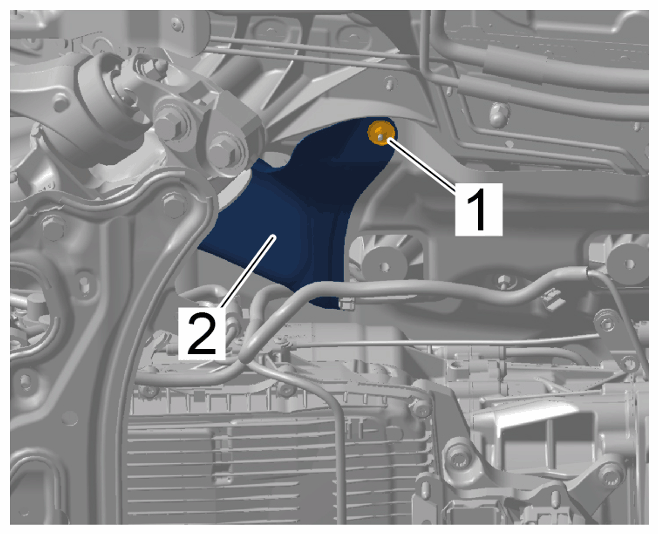

Heat shield on tunnel, left Item 1 Tightening torque 2.5 (1.75 ftlb.) Nm
G14346296Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shield on underbody, left
Heat shield on tunnel, left Item 1 Tightening torque 2.5 (1.75 ftlb.) Nm
G14346297Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shield

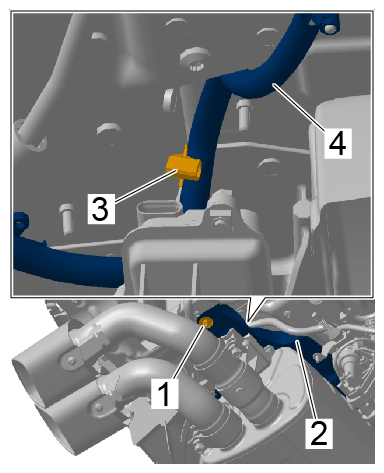

Fastening nut securing heat shield to rear silencer Item 1 Tightening torque 2.5 (1.75 ftlb.) Nm
G14346298Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shield

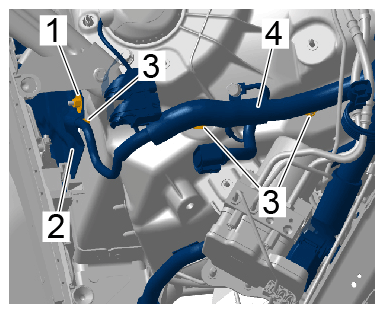

Nut on heat shield on longitudinal member, left Item 1 Tightening torque 2.5 (1.75 ftlb.) Nm

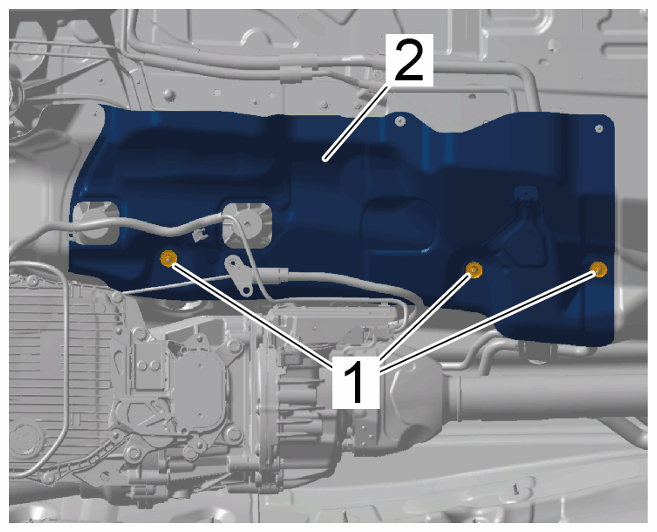

G14346299Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shield
Nuts securing heat shield on firewall upper section to body Item 2 Tightening torque 2.5 (1.75 ftlb.) Nm

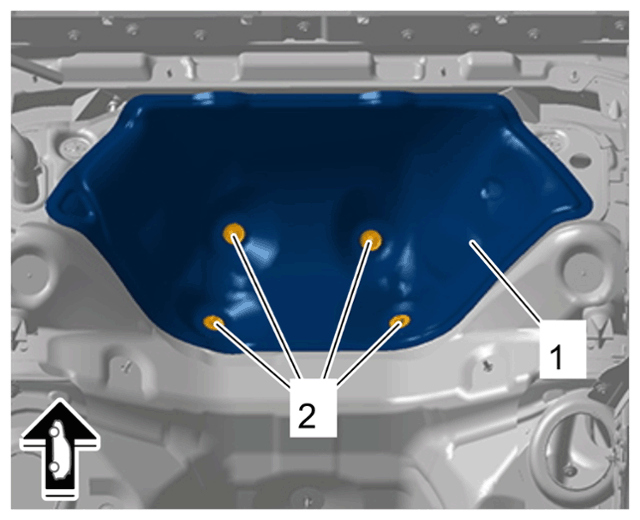

G14346300Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shield on firewall upper section

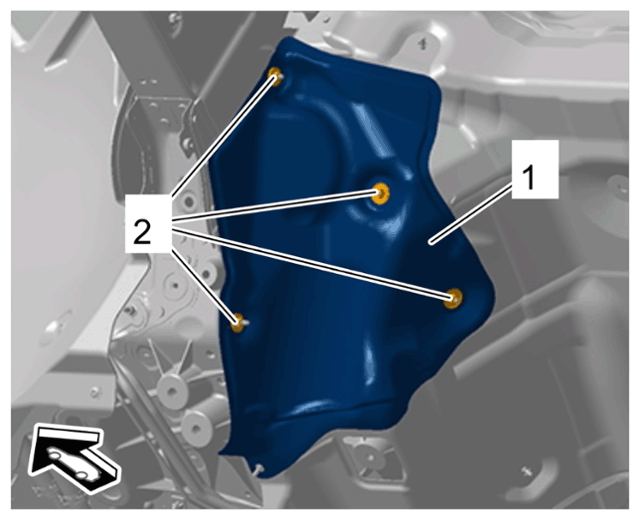

Nuts securing heat shield on right longitudinal member to body Item 2 Tightening torque 2.5 (1.75 ftlb.) Nm
G14346301Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat protection on right longitudinal member

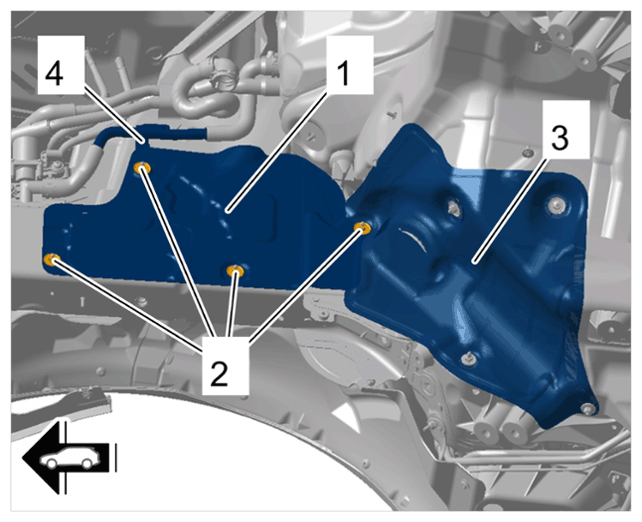

Nuts securing heat shield on front right longitudinal member to body Item 2 Tightening torque 5 (3.5 ftlb.) Nm
G14346302Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat protection on front right longitudinal member

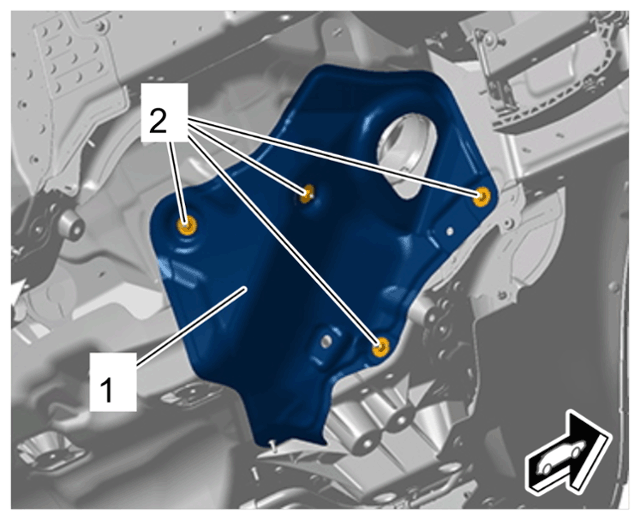

Nuts securing heat shield on left longitudinal member to body Item 2 Tightening torque 2.5 (1.75 ftlb.) Nm
G14346303Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shield on left longitudinal member

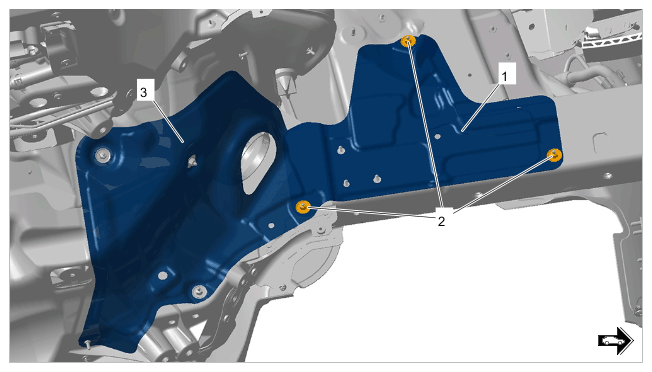

Nuts securing heat shield on front left longitudinal member to body Item 2 Tightening torque 5 (3.5 ftlb.) Nm
G14346304Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shield on front left longitudinal member
Tunnel reinforcement plate to underbody Item 2, 3, 4 Tightening torque 49 (36 ftlb.) Nm

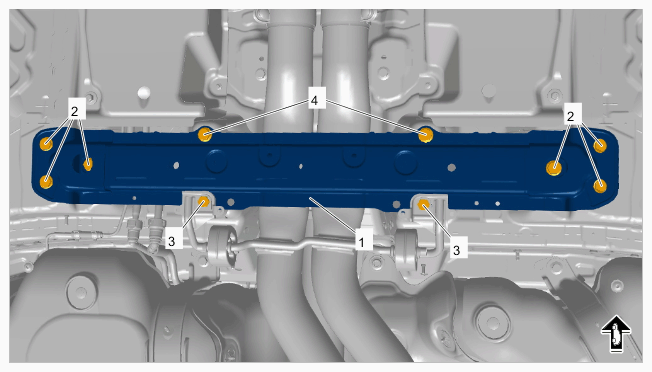

G14346305Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tunnel strut

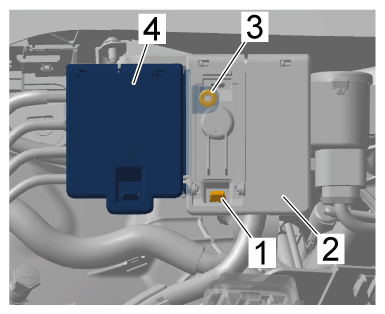

Nut securing power distributor at the front to external power connection Item 3 Tightening torque 9 (6.5 ftlb.) Nm
G14346306Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Power distributor, front
Nuts securing external power connection to bracket Item 1 Tightening torque 3 (2 ftlb.) Nm
Spring nuts securing heat protection panel to cross panel Item 1 Tightening torque 2.5 (1.75 ftlb.) Nm
Screws securing cross panel to bracket Item 1 Tightening torque 10 (7.5 ftlb.) Nm
Screws securing cross panel (lower section) to body Item 1 Tightening torque 10 (7.5 ftlb.) Nm

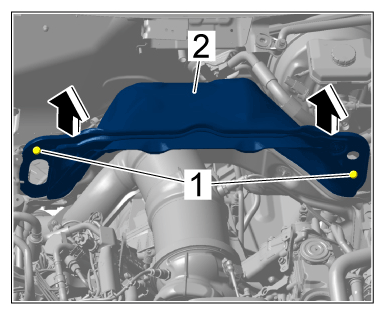

G14346307Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cross panel (lower section)
Screws on pillars Item 1 Tightening torque 20 (15 ftlb.) Nm
G14346308Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Nuts on pillars Item 2 Tightening torque 20 (15 ftlb.) Nm

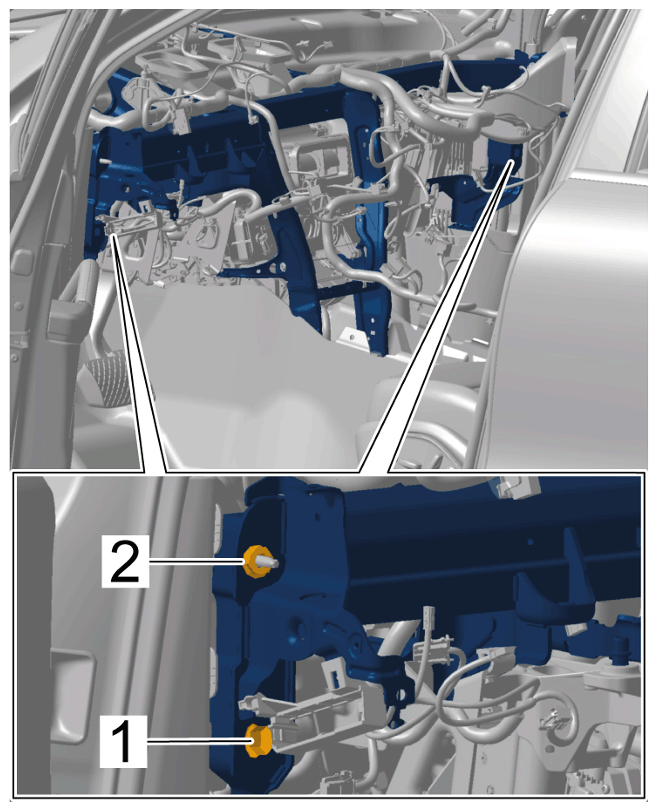

G14346309Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts
Screws, top Item 1 Tightening torque 20 (15 ftlb.) Nm

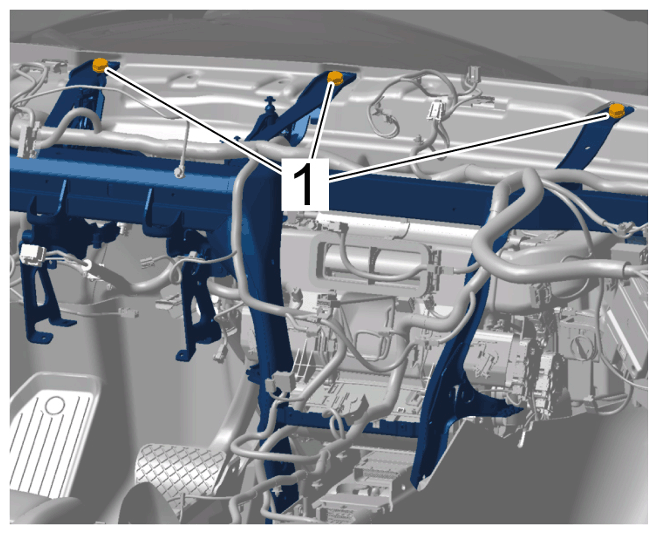

G14346310Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

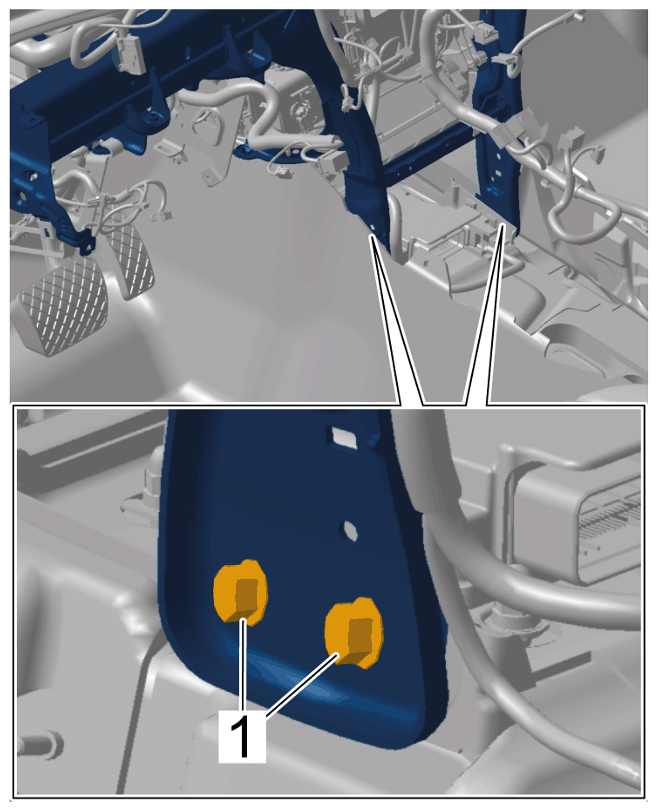

Screws, bottom Item 1 Tightening torque 20 (15 ftlb.) Nm
G14346311Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Carpet

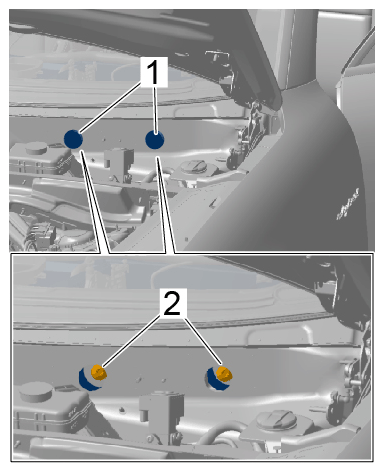

Screws, front Item 2 Tightening torque 20 (15 ftlb.) Nm
G14346312Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Stoppers
Screws securing intermediate piece to body front section Item 2 Tightening torque 10 (7.5 ftlb.) Nm

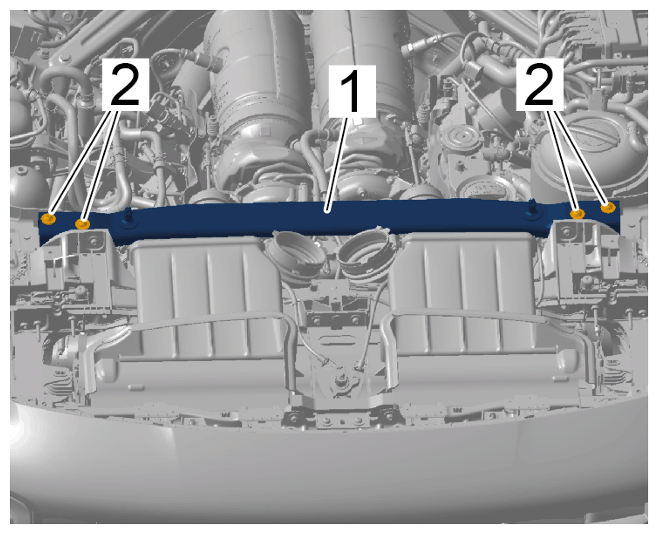

G14346313Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws securing intermediate piece to body front section
Screws on front roof cross member   Tightening torque 8 (6 ftlb.) Nm
Screw on roof pillar   Tightening torque 8 (6 ftlb.) Nm
scientia non olet · About LEMON Manuals
