WM, 5X00IN26 Replacing Coarse Threaded Bolts: Notes
WARNING: This page is about a different car, the 2021 Porsche Cayenne and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
PARTS DESCRIPTION
| Part number | Description | Addition | Quantity |
|---|---|---|---|
| > 99919034201 | BOLT 999.190.342.01 | ||
| > 99919050101 | BOLT 999.190.501.01 |
TOOLS DESCRIPTION
| Tool denomination | Type | Tool number | Image |
|---|---|---|---|

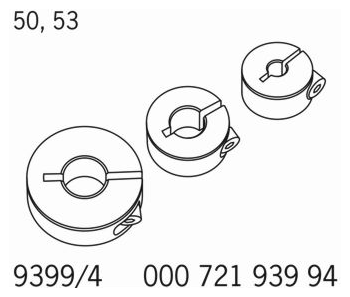

| Set of setting collars | Special tool | > 9399/4 | |

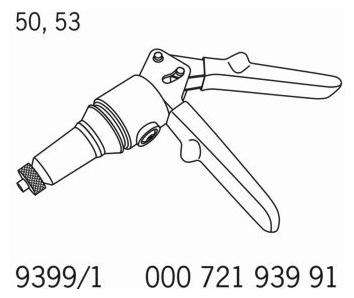

| Riveting tool for ground pins | Special tool | > 9399/1 | |

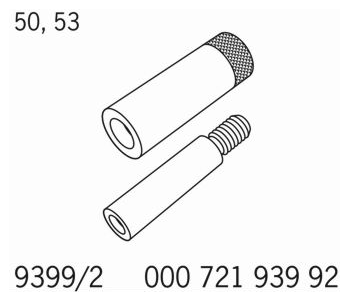

| Threaded mandrel + mouth piece | Special tool | > 9399/2 |
TECHNICAL VALUES SPECIFICATION
| Location | Description | Type | ± Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

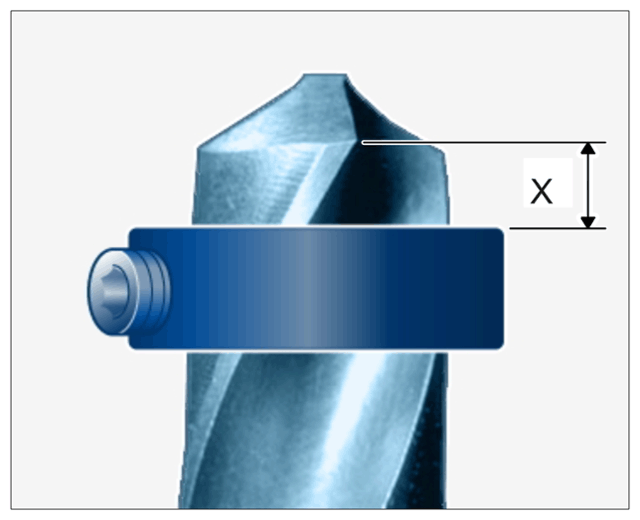

| Drilling depth | X | Length | 3.0 mm | ||
|
Drilling depth |
| Drill bit | Diameter | 4.0 mm |
| Drill bit | Diameter | 7.0 mm |
| Drill bit | Diameter | 9.0 mm |
