Installing Expansion Valve

WARNING: This page is about a different variant/trim than selected.

WARNING: Refrigerant

Danger of freezing
→ Avoid contact with refrigerant.

→ Wear personal protective gear.

→ Observe the safety regulations for working on air-conditioned vehicles and handling refrigerant.

→ Observe the safety regulations for extraction and filling systems.

→ Observe the instructions for repairing air-conditioning systems and storing spare parts.

Information

Before re-installing the expansion valve, the O-rings on the refrigerant lines must be checked for damage and replaced if necessary.
The O-rings on the refrigerant lines must be coated with refrigerant oil.

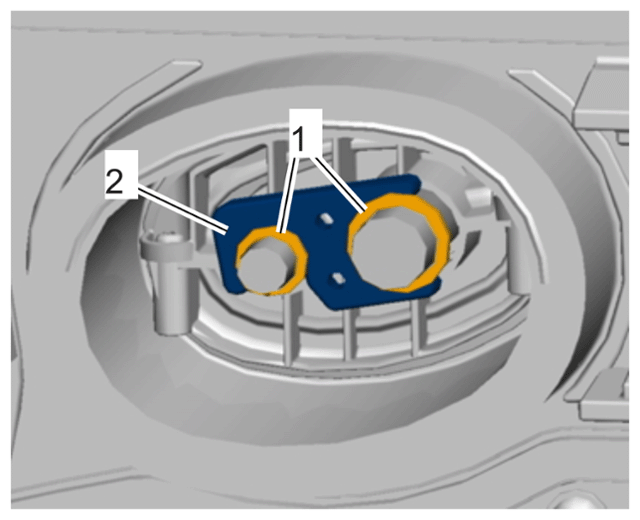

Check seals -1- on the refrigerant adapter -2- for damage and replace them if necessary.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Checking/replacing seals
Install expansion valve.

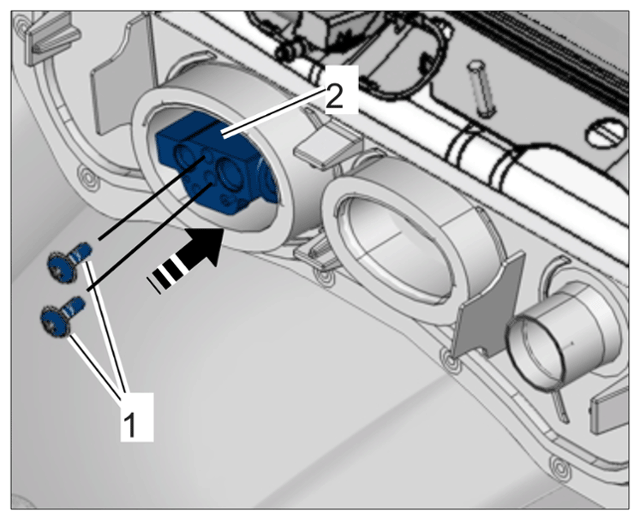

Carefully push expansion valve -2- onto the evaporator refrigerant lines -arrow- .

Tighten fastening screws -1- to the prescribed tightening torque > Tightening torque 3.5 Nm (2.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installing expansion valve
