Subsequent Work

WARNING: This page is about a different variant/trim than selected.

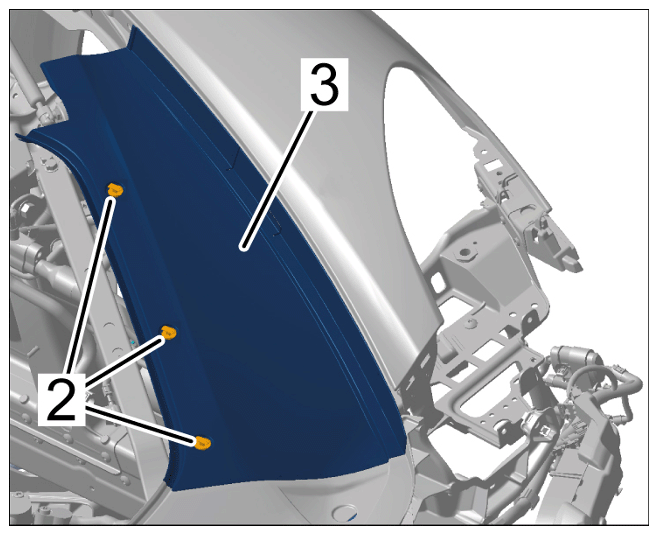

  1. Position left engine cover -3-  and secure with clips -2-  .
    G15875458Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Installing side engine cover

  2. Fill in refrigerant.

    > 870317 DRAINING AND FILLING REFRIGERANT

  3. Install front wheel housing liner at the left.

    > WM, 505619 REMOVING AND INSTALLING FRONT WHEEL HOUSING LINER
