Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Des... | Type | Basic val... | Toleranc... | Toleranc... |
|---|---|---|---|---|---|

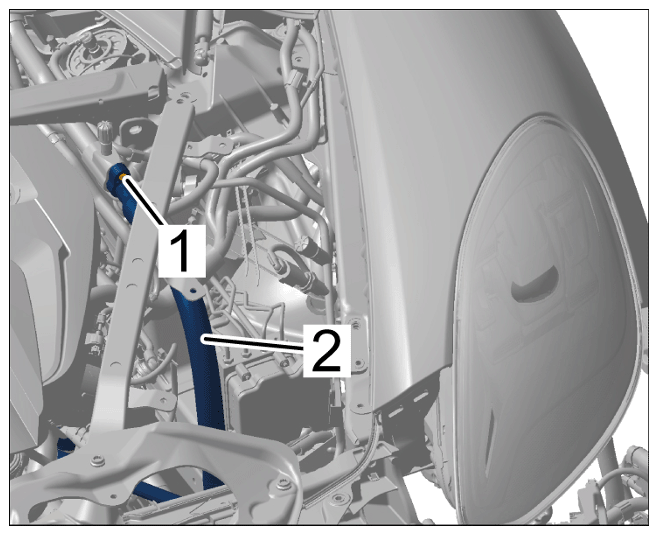

| Screw securing refrigerant line to condenser | Item 2 | Tightening torque | 12 Nm (8.85 ftlb.) | ||
| Screw securing connection point for refrigerant line (internal heat exchanger) to refrigerant line for air-conditioning compressor | Item 1 | Tightening torque | 12 Nm (9 ftlb.) | ||
|
Unscrewing screw on evaporator coolant line |
|||||
| Screw securing refrigerant line (internal heat exchanger) to expansion valve | Item 7 | Tightening torque | 10 Nm (7.5 ftlb.) | ||
