Removing Evaporator/Condenser Line

WARNING: This page is about a different variant/trim than selected.
WARNING: Refrigerant
  • Danger of freezing

    → Avoid contact with refrigerant.

    → Wear personal protective gear.

    → Observe the safety regulations for working on air-conditioned vehicles and handling refrigerant.

    → Observe the safety regulations for extraction and filling systems.

    → Observe the instructions for repairing air-conditioning systems and storing spare parts.

Information

Seal open lines and hoses with suitable plugs from the > VAS 6122 - engine sealing plug set  .

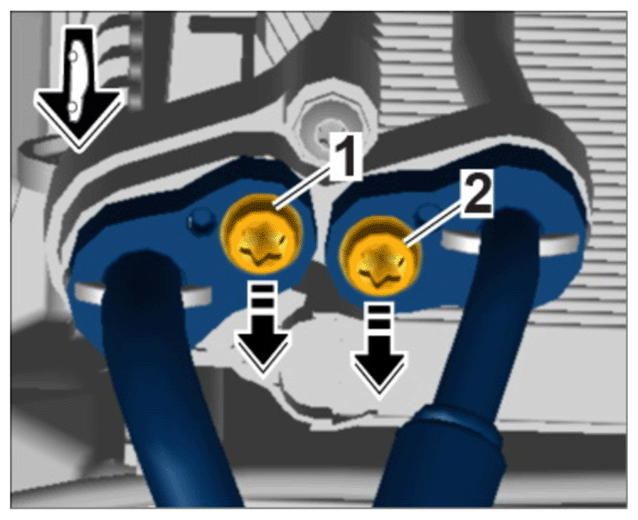

  1. Remove refrigerant line at the condenser.
    G15875442Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pulling evaporator/condenser line out of condenser

    1. 1.1 Unscrew screw -1-  on the condenser.
    2. 1.2 Pull refrigerant line out of the condenser.

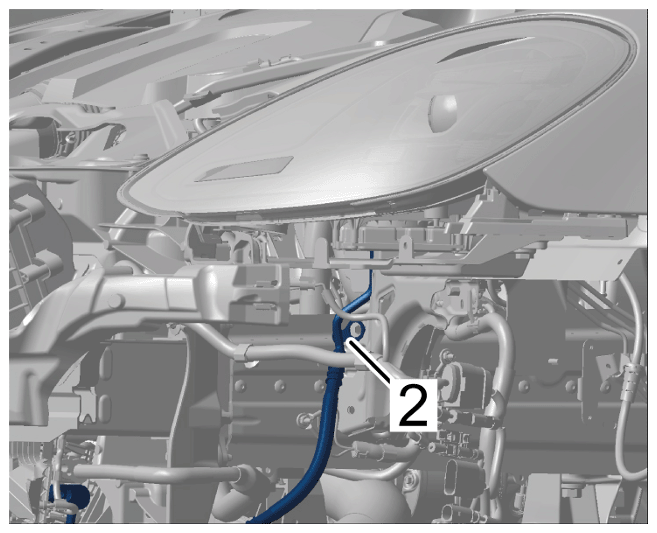

  2. Loosen holder -2-  .
    G15875443Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Loosen holder

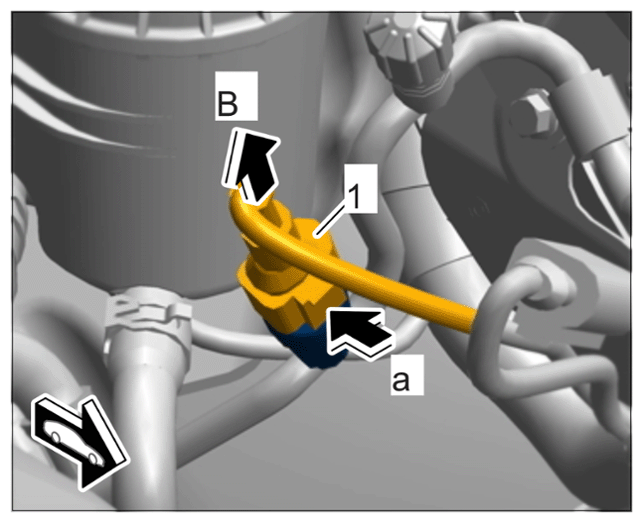

  3. Release electric plug connection -1-a-  and disconnect it -B-  .
    G15875444Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Release electric plug connection and disconnect it

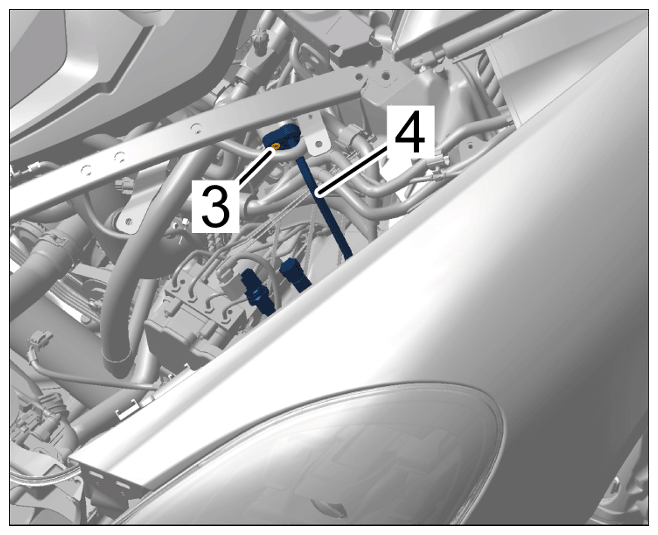

  4. Remove refrigerant line for condenser -4-  .
    G15875445Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Unscrewing screw at connection point for refrigerant line for condenser

    1. 4.1 Unscrew screw -3-  at connection point for refrigerant line (internal heat exchanger) to the condenser.
    2. 4.2 Remove refrigerant line for condenser -4-  .

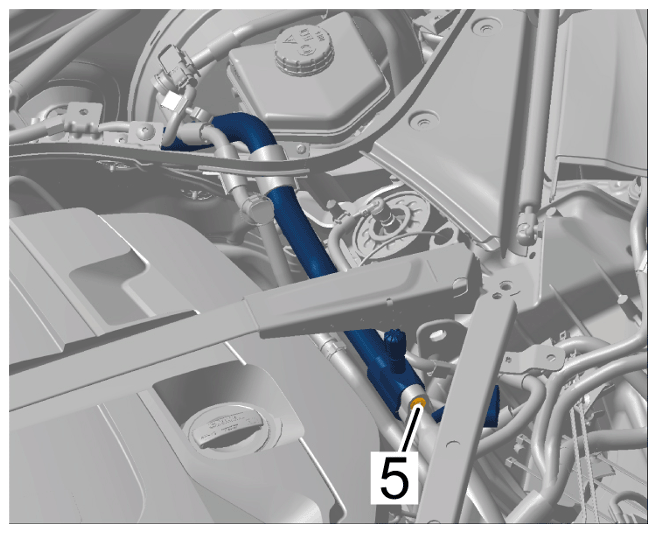

  5. Unscrew screw -5-  at connection point for refrigerant line (internal heat exchanger) to the air-conditioning compressor.
    G15875446Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Unscrewing screw at connection point for refrigerant line for compressor

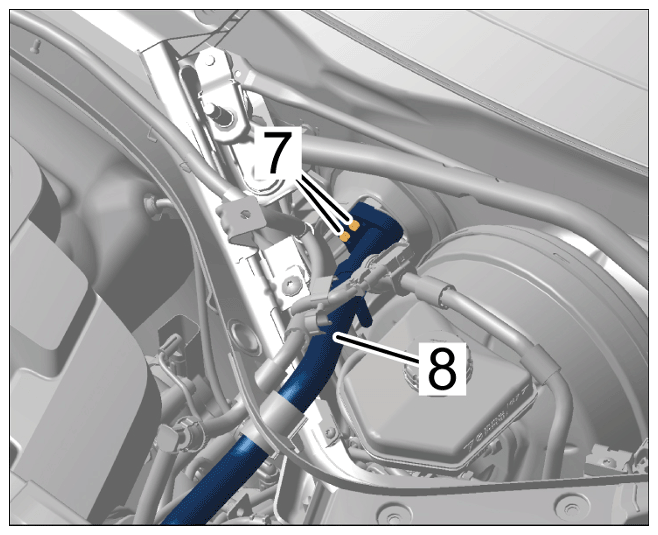

  6. Unscrew screws -7-  for refrigerant line from evaporator to condenser (internal heat exchanger) -8-  at the expansion valve.
    G15875447Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Unscrewing screws on expansion valve

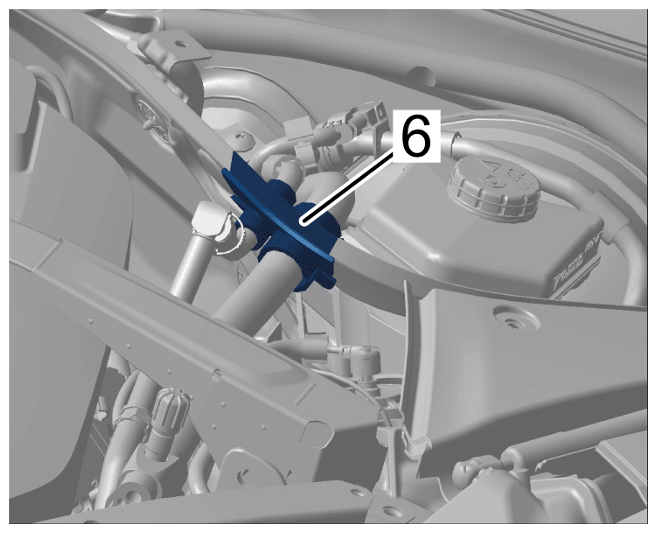

  7. Pull grommet -6-  out of the cross panel.
    G15875448Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pulling out grommet

  8. Remove refrigerant line for evaporator.
