Removing Compressor/Condenser Line
WARNING: This page is about a different variant/trim than selected.
WARNING:
Refrigerant
- Danger of freezing
→ Avoid contact with refrigerant.
→ Wear personal protective gear.
→ Observe the safety regulations for working on air-conditioned vehicles and handling refrigerant.
→ Observe the safety regulations for extraction and filling systems.
→ Observe the instructions for repairing air-conditioning systems and storing spare parts.
Information
Seal open lines and hoses with suitable plugs from the > VAS 6122 - engine sealing plug set .

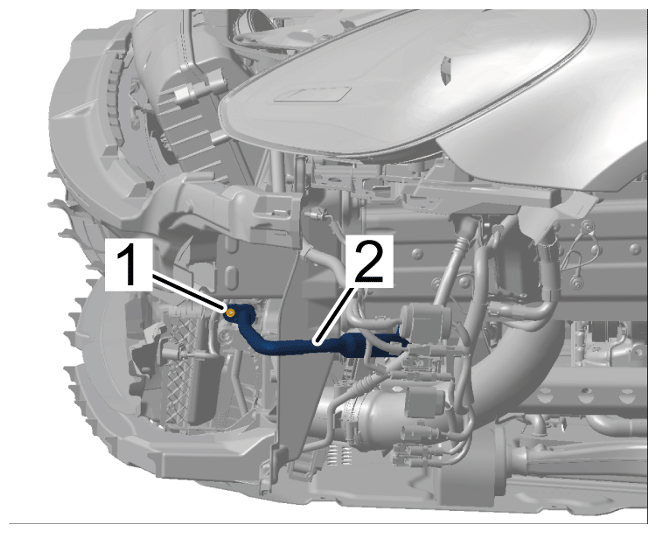

- Unscrew screw -1-
and pull refrigerant line between the compressor and condenser -2-
out of the condenser.
Disconnecting compressor/condenser line
- Remove refrigerant line between the compressor and condenser -2-
.
Removing refrigerant line between compressor and condenser

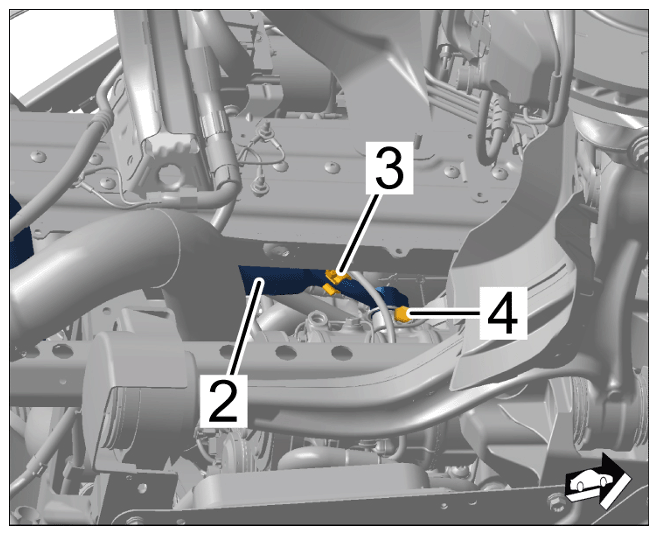

- 2.1 Unclip line bracket -3- and disengage refrigerant line between the compressor and condenser -2- .
- 2.2 Unscrew and remove screw -4- .
- 2.3 Pull refrigerant line between the compressor and condenser -2- out of the air-conditioning compressor and remove it carefully in an upward direction.
