Removing Servo Motor For Front Right Temperature Mixing Flap

WARNING: This page is about a different variant/trim than selected.

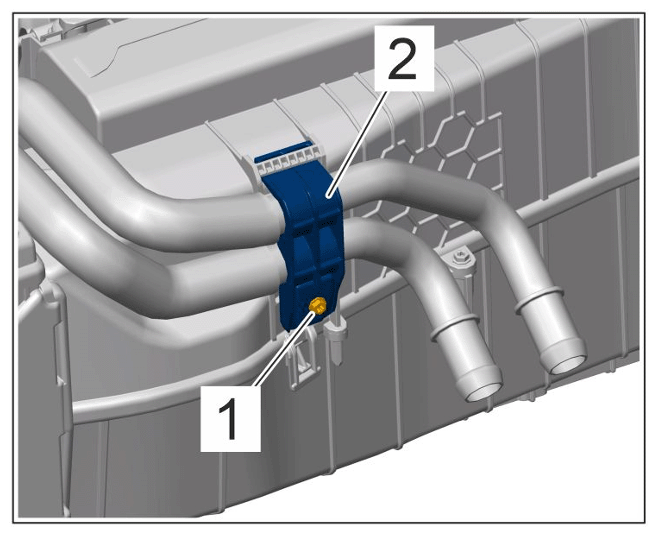

Unscrew screw -1- and remove holder -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bracket
Remove air-conditioning lines -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air-conditioning lines

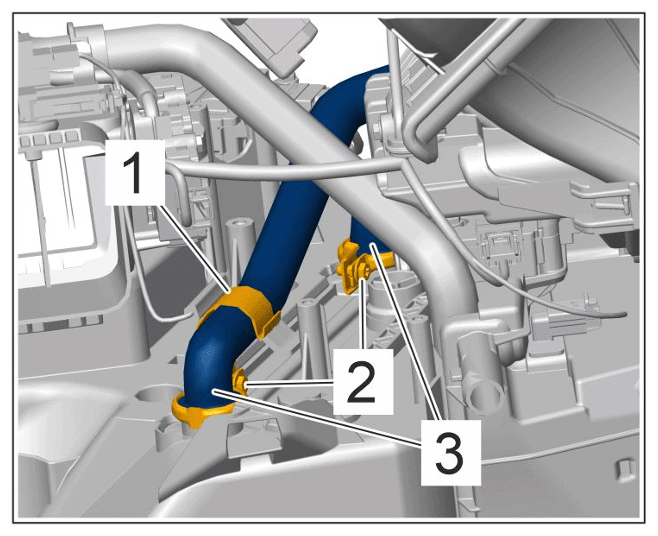

1. 2.1 Unclip sensor holder -1- .
2. 2.2 Loosen clamps -2- .
3. 2.3 Remove air-conditioning lines -3- .

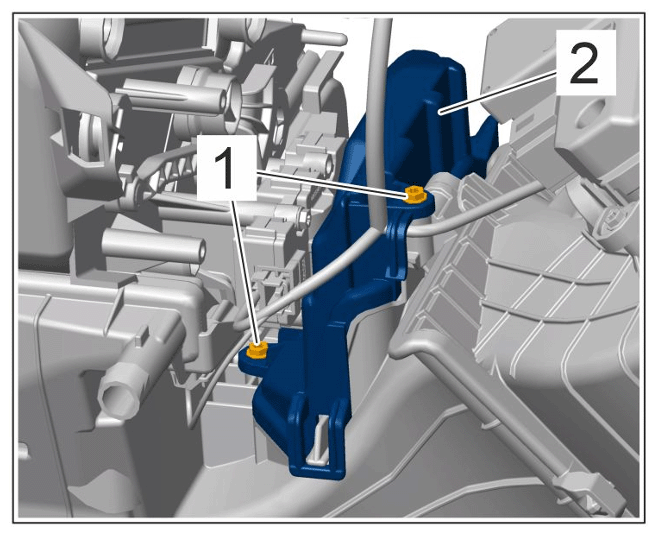

Unscrew screws -1- and unclip cover -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover

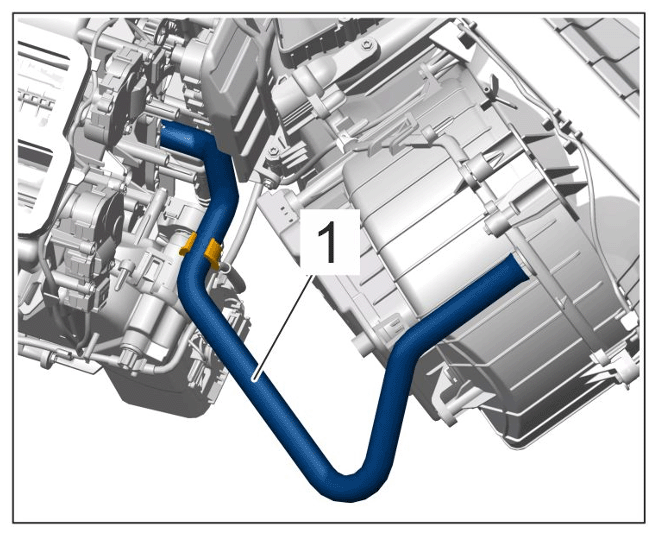

Unclip and pull off hose -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Hose

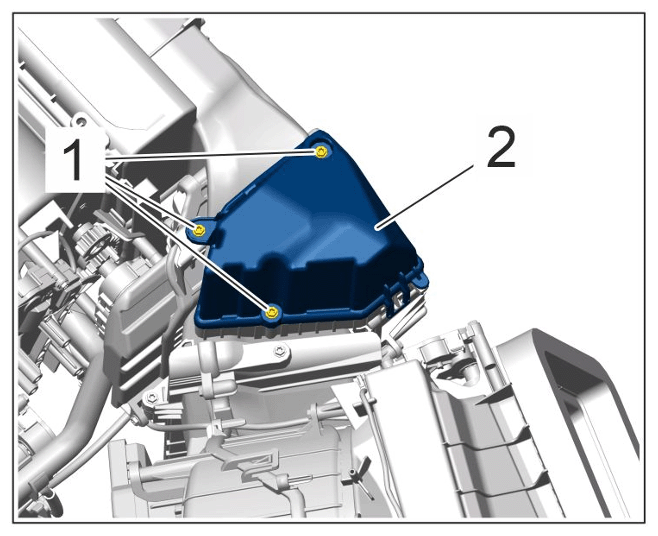

Unscrew screws -1- and unclip sound box -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Sound box

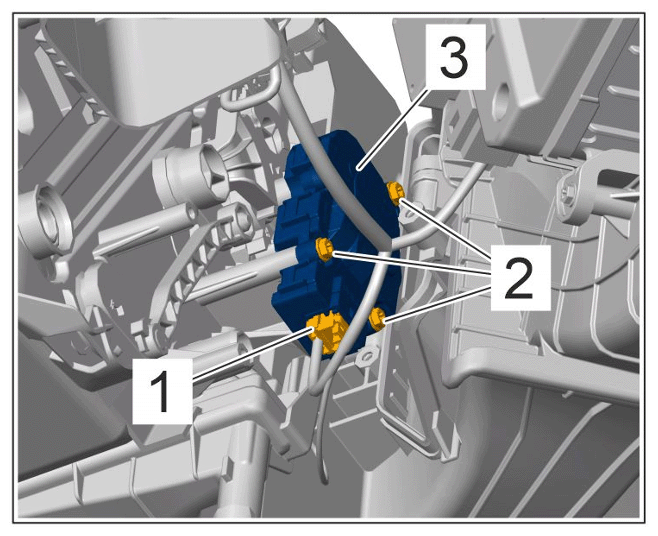

Remove servo motor for front right temperature mixing flap -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Servo motor for front right temperature mixing flap
1. 6.1 Release and unplug electric plug connection -1- .
2. 6.2 Unscrew and remove screws -2- .
3. 6.3 Remove servo motor for front right temperature mixing flap -3- .
