Removing Servo Motor For Bypass Heat Flap In Front Left FOOTWELL
WARNING: This page is about a different variant/trim than selected.
- Remove servo motor for bypass heat flap in front left footwell -3-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

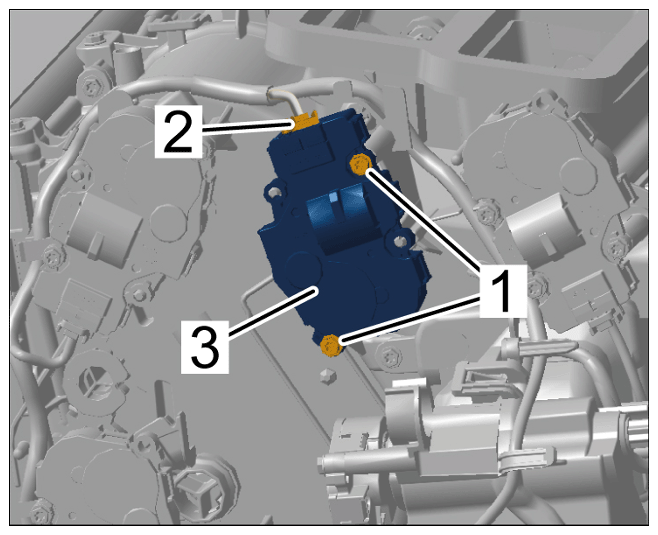

Removing servo motor for bypass heat flap in front left footwell
- 1.1 Unscrew and remove screws -1-
.
- 1.2 Release and unplug electric plug connection -2-
.
- 1.3 Remove servo motor for bypass heat flap in front left footwell -3-
.
