Thread on rear side member
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2021 Porsche 718 Cayman, 2021 Porsche 718 Boxster, 2020 Porsche 718 Cayman, 2020 Porsche 718 Boxster, and 2019 Porsche 718 Cayman. However, it is still accessible from the selected car via links, so may be relevant.
Information
- Remove wire thread inserts (Helicoil) that are installed as standard before drilling out.
Overview of standard thread on rear side member
| Thread 1; for securing chassis (Helicoil) | M10 x 25 |
| Thread 2; for securing chassis (Helicoil) | M10 x 25 |

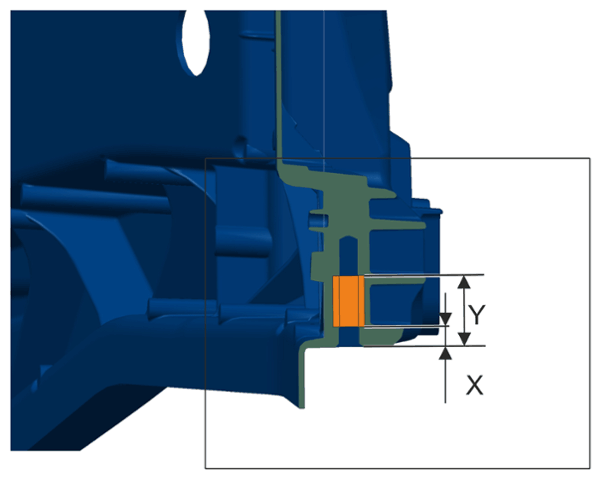

| Location | Description | Type | Basic value | Tolerance |
|---|---|---|---|---|
| Thread 1 and 2 | Dimension Y | Length | 37 mm | |
|
Thread repairs on rear side member |
||||
| Thread 1 and 2 | Dimension X | Length | 10 mm | |
|
Thread repairs on rear side member |
- Repair thread
5X00IN34 THREAD REPAIRS FOR THREADED BUSHES WITHOUT COLLAR
Use repair kit > 9843/1 - thread repair kit with screw-in tool from repair kit > 9843/2 - thread repair kit and threaded bush > THREADED BUSH 999.504.267.01
