Thread on engine mount
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2021 Porsche 718 Cayman, 2021 Porsche 718 Boxster, 2020 Porsche 718 Cayman, 2020 Porsche 718 Boxster, and 2019 Porsche 718 Cayman. However, it is still accessible from the selected car via links, so may be relevant.
Overview of standard thread on engine mount
| Thread 1 | Engine mount mounting M10 x 20 |
| Location | Description | Type | Basic value | Tolerance |
|---|---|---|---|---|

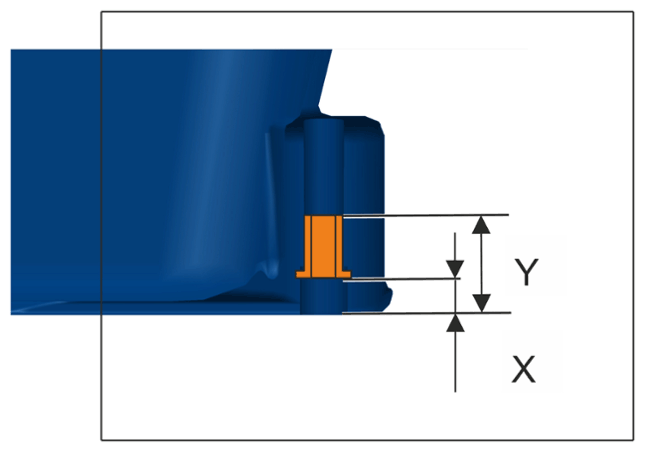

| Thread 1 | Dimension Y | Length | 25 mm | |
|
Thread repair for engine mount mounting |
||||
| Thread 1 | Dimension X | Length | 5 mm | |
|
Thread repairs for engine mount mounting |
- Repair thread
5X00IN33 THREAD REPAIRS FOR THREADED BUSHES WITH COLLAR
Use repair kit > 9394 - Time-sert thread repair kit with threaded bush from repair kit.
