Repairing spring strut mount thread
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2021 Porsche 718 Cayman, 2021 Porsche 718 Boxster, 2020 Porsche 718 Cayman, 2020 Porsche 718 Boxster, and 2019 Porsche 718 Cayman. However, it is still accessible from the selected car via links, so may be relevant.
Information
- Remove wire thread inserts (Helicoil) that are installed as standard before drilling out.
Overview of standard spring strut mount thread
| Thread 1 | for securing diagonal braces (Helicoil) | M8x16 |
| Thread 2 | for securing alarm horn (only on left spring strut mount) (Helicoil) | M8x16 |
| Thread 3 | for securing sensor | M6 thread |
| Location | Description | Type | Basic value | Tolerance |
|---|---|---|---|---|

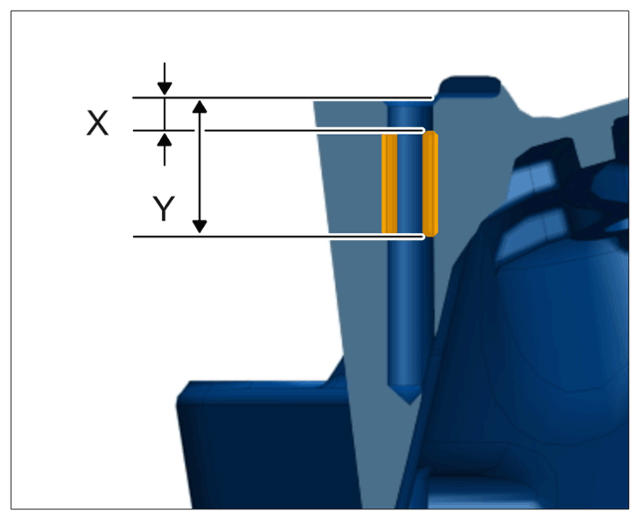

| Thread 1 | Dimension Y | Length | 20 mm | |
|
Thread repairs on spring strut mount |
||||
| Thread 1 | Dimension X | Length | 5 mm | |
|
Thread repair on spring strut mount |
- Repair thread
5X00IN34 THREAD REPAIRS FOR THREADED BUSHES WITHOUT COLLAR
Use repair kit > 9843/3 - Thread repair kit with threaded bush > THREADED BUSH 999.504.262.01

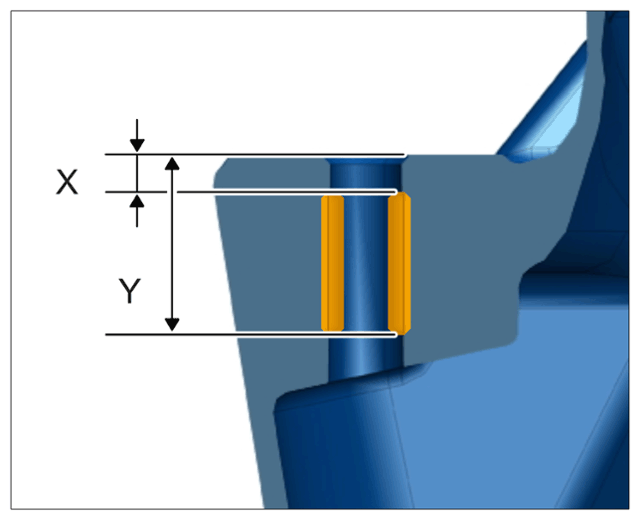

Location Description Type Basic value Tolerance Thread 2 Dimension Y Length 20 mm
Thread repair on spring strut mountThread 2 Dimension X Length 5 mm
Thread repair on spring strut mount - Repair thread
5X00IN34 THREAD REPAIRS FOR THREADED BUSHES WITHOUT COLLAR
Use repair kit > 9843/3 - Thread repair kit with threaded bush > THREADED BUSH 999.504.262.01

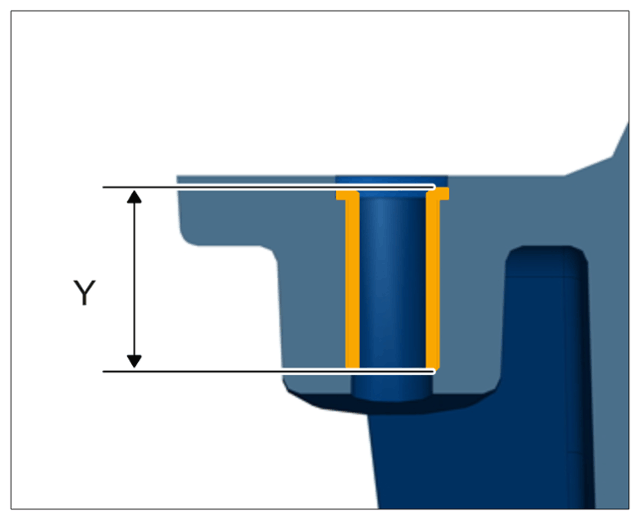

Location Description Type Basic value Tolerance Thread 3 Dimension Y Length 9.4 mm
Thread repair on spring strut mount - Repair thread
5X00IN33 THREAD REPAIRS FOR THREADED BUSHES WITH COLLAR
Use repair kit > Nr.122-1 Pos.1 - Time-Sert thread repair kit with short threaded bush.
