Repairing (luggage compartment) cross member thread
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2021 Porsche 718 Cayman, 2021 Porsche 718 Boxster, 2020 Porsche 718 Cayman, 2020 Porsche 718 Boxster, and 2019 Porsche 718 Cayman. However, it is still accessible from the selected car via links, so may be relevant.
Information
- Remove wire thread inserts (Helicoil) that are installed as standard before drilling out.
Overview of standard cross member thread
| Thread 1; for securing front axle (Helicoil) | M12x1.5x30 |
| Thread 2; for securing axle mounting (Helicoil) | M12x 1.5x30 |
| Location | Description | Type | Basic value | Tolerance |
|---|---|---|---|---|

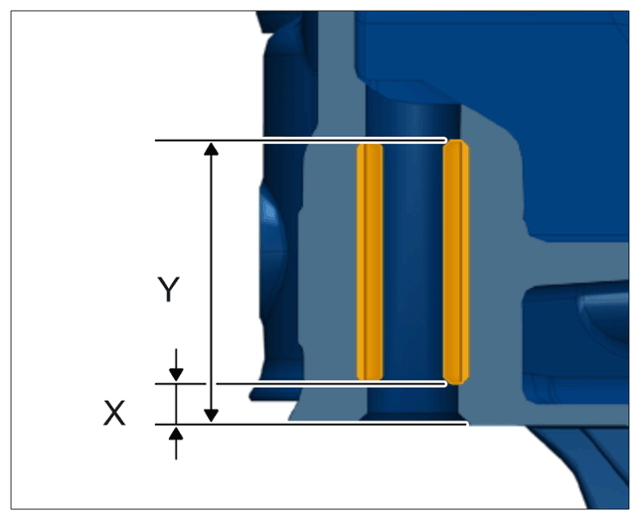

| Thread 1 and 2 | Dimension Y | Length | 33 mm | |
|
Cross member thread repair |
||||
| Thread 1 and 2 | Dimension X | Length | 5 mm | |
|
Cross member thread repair |
- Repair thread
5X00IN34 THREAD REPAIRS FOR THREADED BUSHES WITHOUT COLLAR
Use repair kit > 9843 - Thread repair kit with threaded bush > THREADED BUSH 999.504.266.01
