WM, 5X00IN26 Replacing Coarse Threaded Bolts: Notes
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2021 Porsche 718 Cayman, 2021 Porsche 718 Boxster, 2020 Porsche 718 Cayman, 2020 Porsche 718 Boxster, and 2019 Porsche 718 Cayman. However, it is still accessible from the selected car via links, so may be relevant.
PART DESCRIPTION
| Part number | Description | Addition | Quantity |
|---|---|---|---|
| > 99919034201 | BOLT 999.190.342.01 | ||
| > 99919050101 | BOLT 999.190.501.01 |
TOOL DESCRIPTION
| Tool denomination | Type | Tool number | Image |
|---|---|---|---|

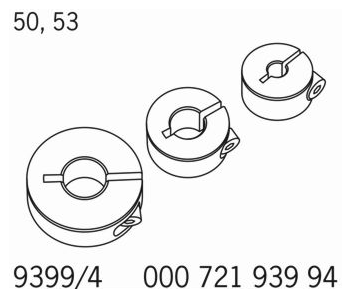

| Set of setting collars | Special tool | > 9399/4 | |

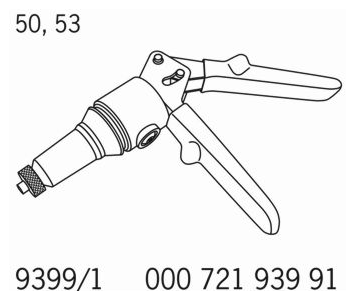

| Riveting tool for ground pins | Special tool | > 9399/1 | |

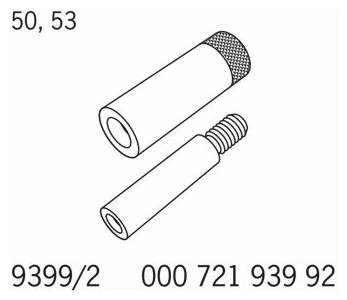

| Threaded mandrel + mouth piece | Special tool | > 9399/2 |
TECHNICAL VALUE SPECIFICATION
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

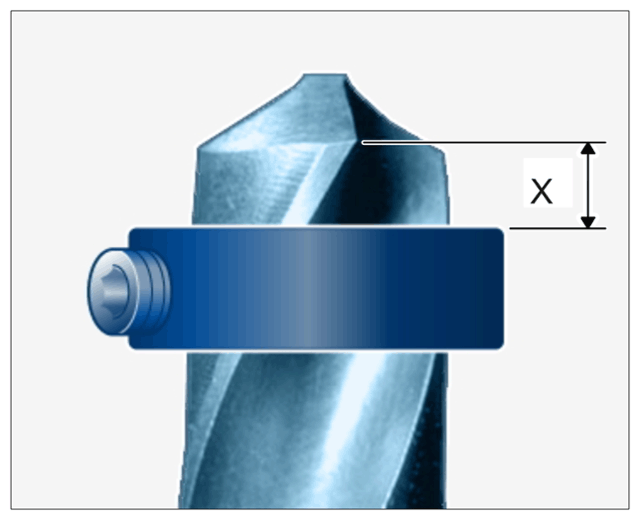

| Drilling depth | X | Length | 3.0 mm | ||
|
Drilling depth |
|||||
| Drill bit | Diameter | 4.0 mm | |||
| Drill bit | Diameter | 7.0 mm | |||
| Drill bit | Diameter | 9.0 mm |
