WM, 5X00IN25 Making Ground Connections: Notes
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2021 Porsche 718 Cayman, 2021 Porsche 718 Boxster, 2020 Porsche 718 Cayman, 2020 Porsche 718 Boxster, and 2019 Porsche 718 Cayman. However, it is still accessible from the selected car via links, so may be relevant.
PART DESCRIPTION
| Part number | Description | Addition | Quantity |
|---|---|---|---|
| > 99907354901 | COUNTERSUNK SCREW 999.073.549.01 | ||
| > 90037700301 | HEXAGON NUT 900.377.003.01 | ||
| > 99907354901 | COUNTERSUNK SCREW 999.073.549.01 | ||
| > 90037700301 | HEXAGON NUT 900.377.003.01 | ||
| > 99950019601 | BLIND RIVET NUT 999.500.196.01 | ||
| > 99907354901 | COUNTERSUNK SCREW 999.073.549.01 |
TOOL DESCRIPTION
| Tool denomination | Type | Tool number | Image |
|---|---|---|---|

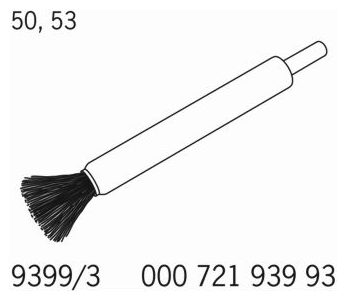

| end brush | Special tool | > 9399/3 | |

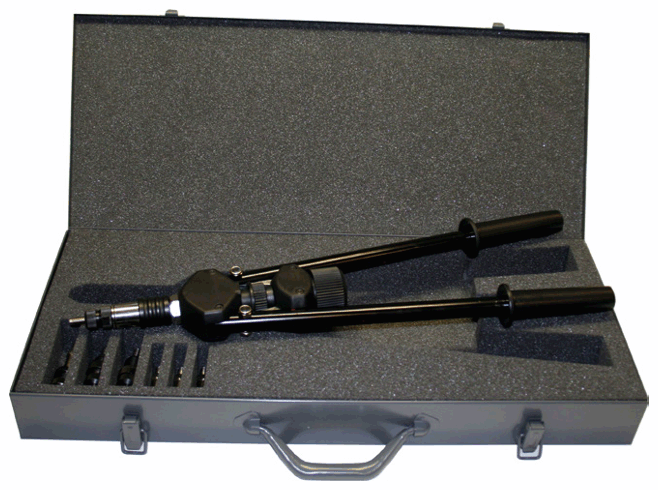

| Pop Rivet Nut Pliers | Vehicle-specific workshop equipment | > V.A.G 1765C |
TECHNICAL VALUE SPECIFICATION
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Drill bit | Diameter | 4 mm | |||
| Drill bit | Diameter | 8 mm | |||
| Threaded joint for ground connection | Tightening torque | 15 N.m (11 ft.lb) | |||
| Drill bit | Diameter | 4 mm | |||
| Drill bit | Diameter | 11 mm | |||
| Threaded joint for ground connection | Tightening torque | 15 N.m (11 ft.lb) |
