WM, 5X00IN23 Replacing Punch Rivets And Penetrated Joints: Notes

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2021 Porsche 718 Cayman, 2021 Porsche 718 Boxster, 2020 Porsche 718 Cayman, 2020 Porsche 718 Boxster, and 2019 Porsche 718 Cayman. However, it is still accessible from the selected car via links, so may be relevant.

PART DESCRIPTION

Part number	Description	Addition	Quantity
> 99919022901	BLIND RIVET 999.190.229.01
> 99919022701	BLIND RIVET 999.190.227.01
> 99919023001	BLIND RIVET 999.190.230.01
> PAF912884	BLIND RIVET PAE912.884
> PAF912885	BLIND RIVET PAF.912.885
> 99919022801	BLIND RIVET 999.190.228.01
> PAF009461	BLIND RIVET PAF.009.461

TOOL DESCRIPTION

Tool denomination	Type	Tool number	Image
Compact Booster	Vehicle-specific workshop equipment	> VAS 6790	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Extension	Vehicle-specific workshop equipment	> VAS 6792/2	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
100° countersink	Vehicle-specific workshop equipment	> VAS 6957	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Supplementary Riveting Set	Vehicle-specific workshop equipment	> VAS 6790/2	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

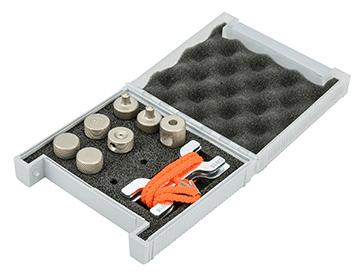

Rivet inserts	Vehicle-specific workshop equipment	> VAS 6790/65	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
