Working on rear lid

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2021 Porsche 718 Cayman, 2021 Porsche 718 Boxster, 2020 Porsche 718 Cayman, 2020 Porsche 718 Boxster, and 2019 Porsche 718 Cayman. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value
Fastening screw securing retaining bracket to rear spoiler	Item 1	Tightening torque	10 N.m (7.5 ft.lb)

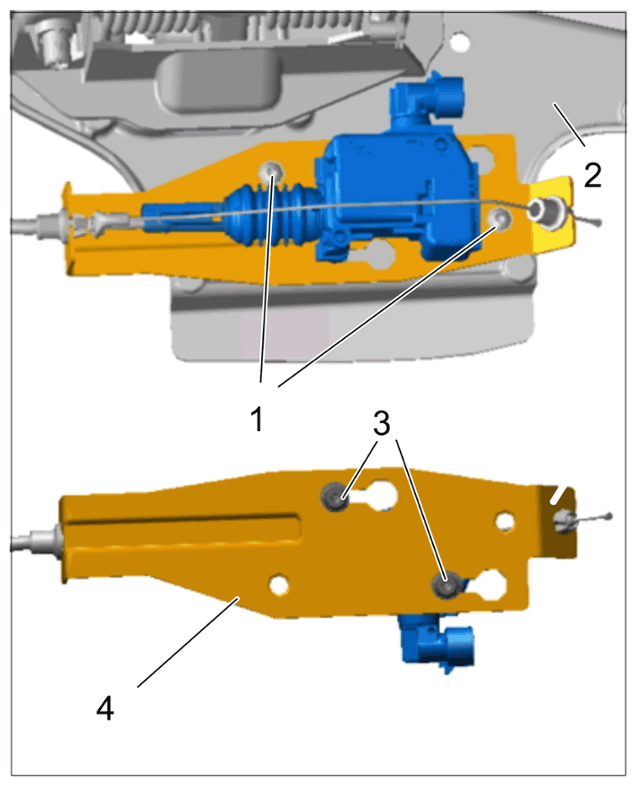

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing holder for lid release motor
Fastening screw securing rear lid release motor to retaining bracket	Item 3	Tightening torque	2.5 N.m (2 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing holder for lid release motor

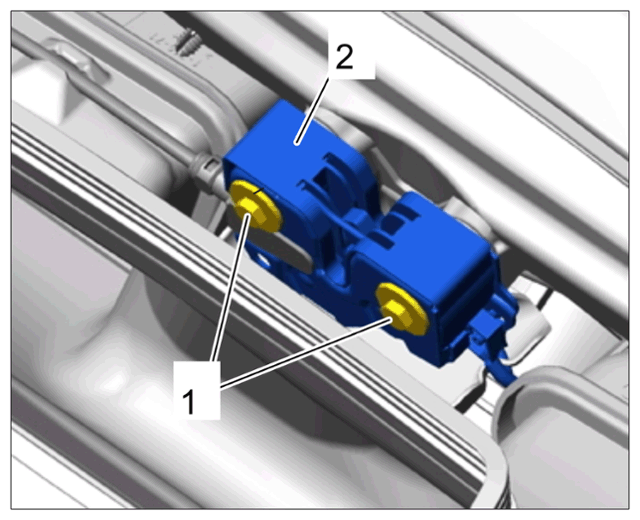

Fastening screws on lower part of rear lid lock	Item 1	Tightening torque	10 N.m (7.5 ft.lb)

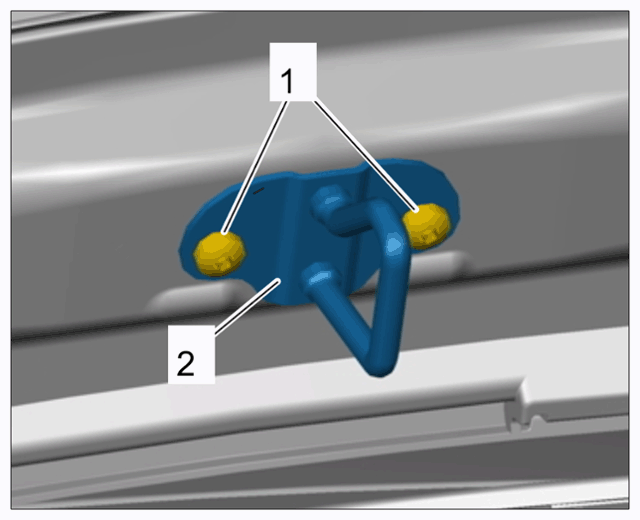

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing lower part of rear lid lock
Fastening screws on upper part of lid lock	Item 1	Tightening torque	10 N.m (7.5 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing upper part of rear lid lock
Fastening screw securing hinge to rear lid	Item 1	Tightening torque	10 N.m (7.5 ft.lb)

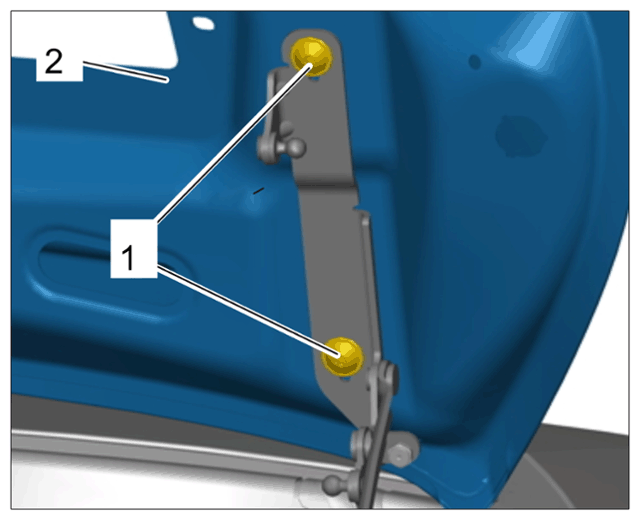

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Adjusting rear lid in X and Y direction
Fastening screws on rear lid hinge	Item 1	Tightening torque	10 N.m (7.5 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing lid hinge
Lid adjusting element	Item 1	Adjustment value	2 mm

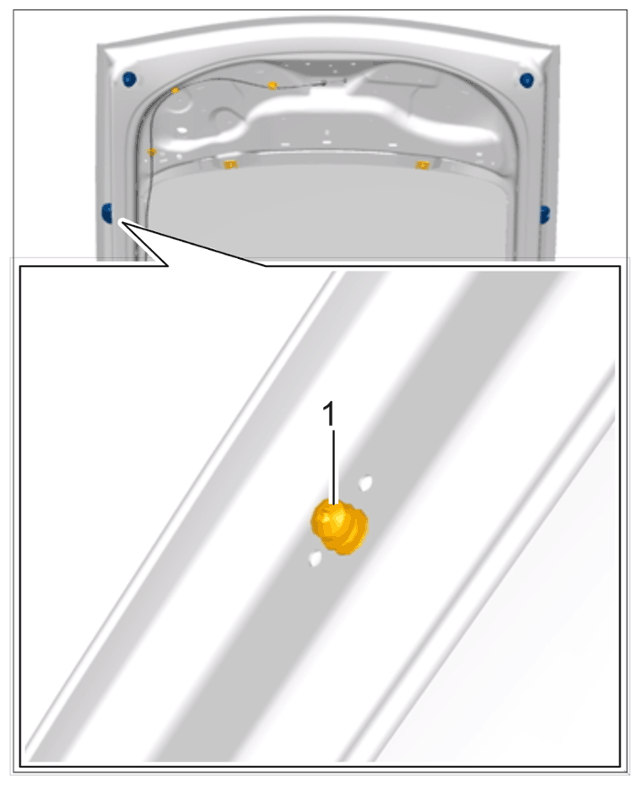

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Adjusting rear lid in Z direction

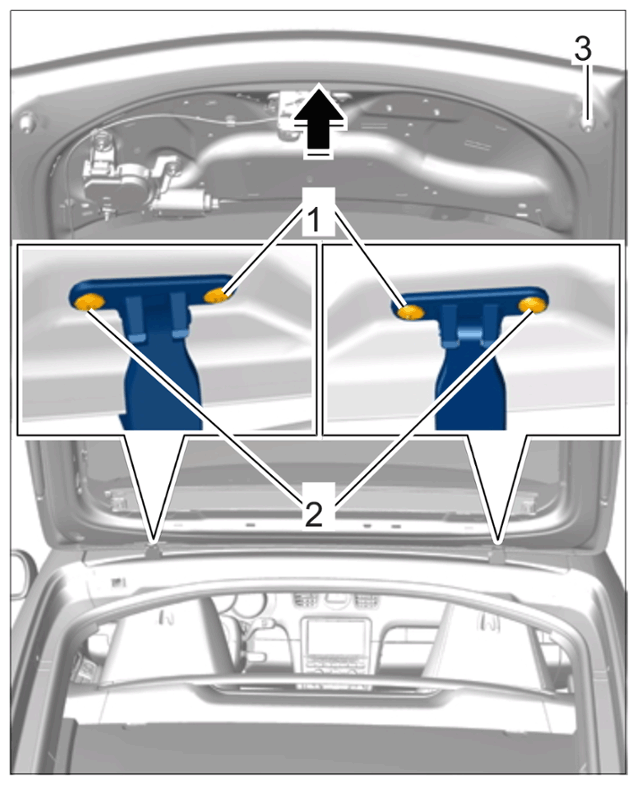

Fastening screws securing lid hinge to lid	Item 1 + 2	Tightening torque	10 N.m (7.5 ft.lb)

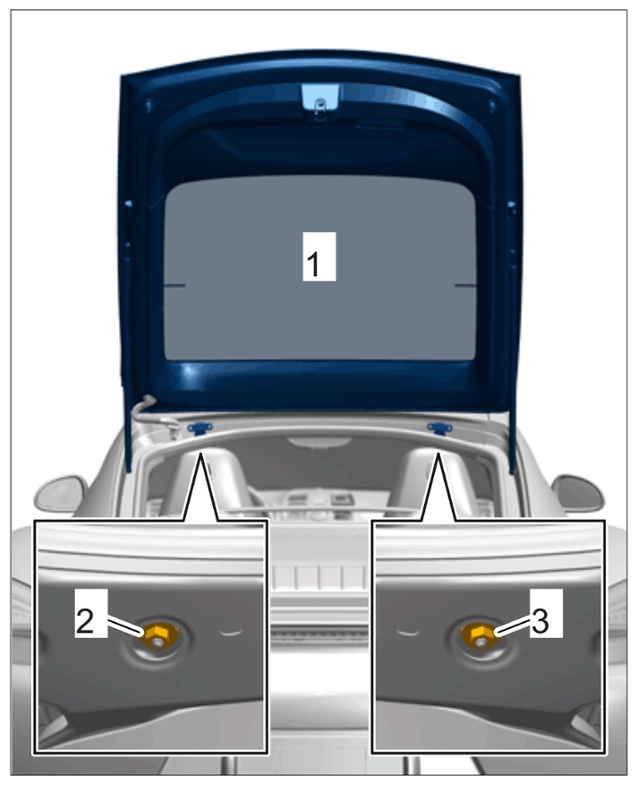

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing rear lid
Fastening screw securing lid hinge to bodyshell	Item 2 + 3	Tightening torque	23 N.m (17 ft.lb)

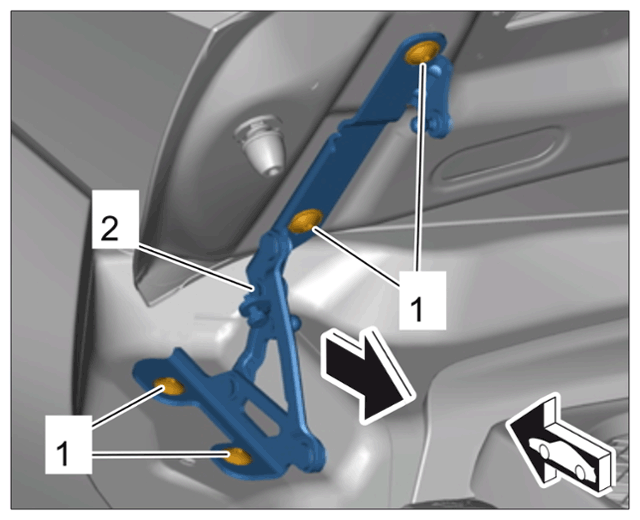

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing lid hinge
Ball pin to rear lid	Item 1	Tightening torque	23 N.m (17 ft.lb)

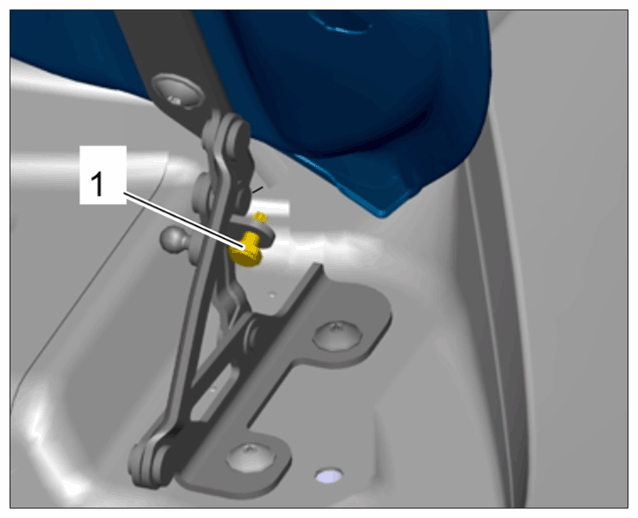

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing ball pin for gas-filled shock absorber
Fastening screw on base plate for lid	Item 1	Tightening torque	10 N.m (7.5 ft.lb)

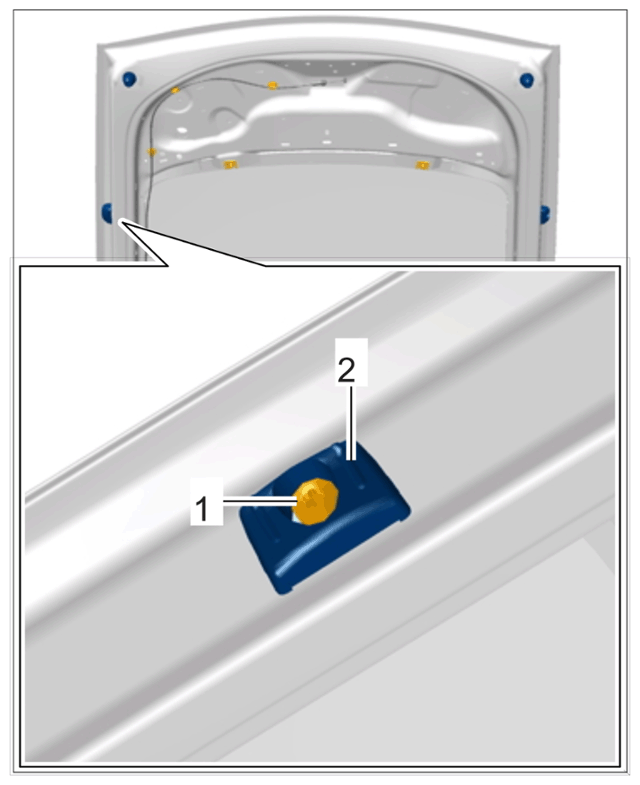

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing base plate
