Underbody panelling

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2021 Porsche 718 Cayman, 2021 Porsche 718 Boxster, 2020 Porsche 718 Cayman, 2020 Porsche 718 Boxster, and 2019 Porsche 718 Cayman. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value
Fastening screws securing underbody cover to body	Item 2	Tightening torque	3 N.m (2 ft.lb)

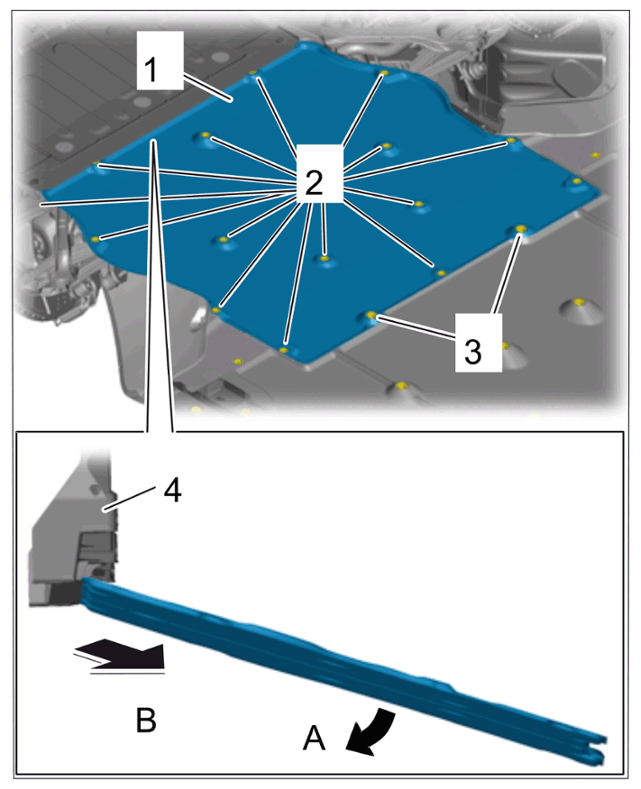

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing cover for front underbody
Fastening nuts securing underbody cover to body	Item 3	Tightening torque	3 N.m (2 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing cover for front underbody
Fastening screws securing underbody cover to body	Item 2	Tightening torque	3 N.m (2 ft.lb)

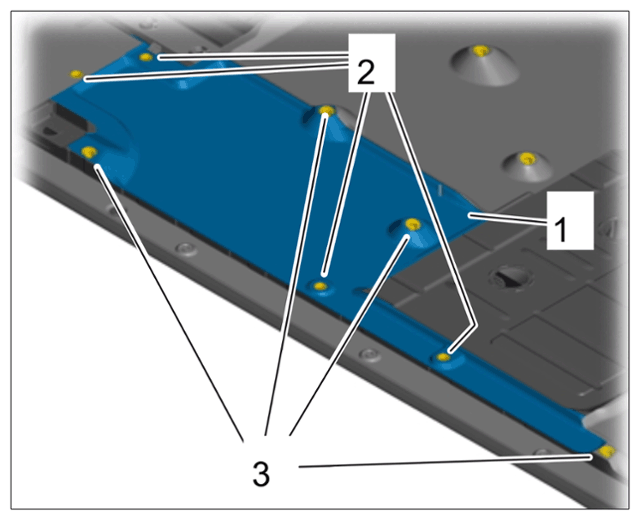

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing side cover
Fastening nuts securing underbody cover to body	Item 3	Tightening torque	3 N.m (2 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing side cover
Fastening screws securing underbody cover to body	Item 2	Tightening torque	3 N.m (2 ft.lb)

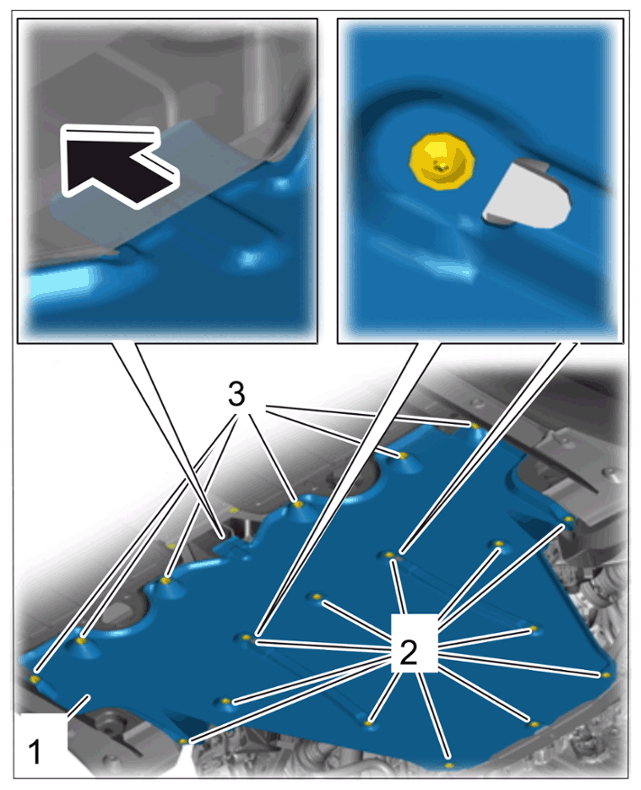

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing middle cover
Fastening nuts securing underbody cover to body	Item 3	Tightening torque	3 N.m (2 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing middle cover
Fastening screws securing underbody cover to body	Item 2	Tightening torque	3 N.m (2 ft.lb)

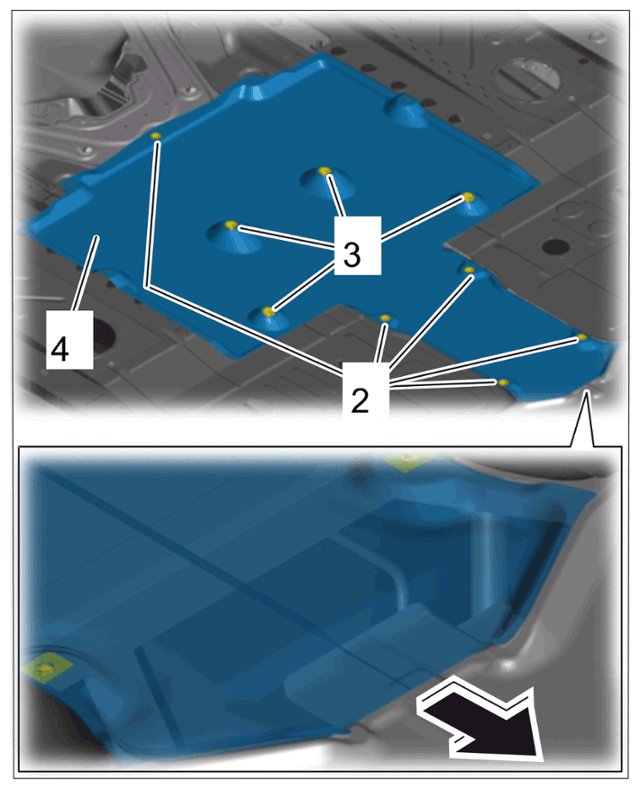

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing rear underbody panelling
Fastening nuts securing underbody cover to body	Item 3	Tightening torque	3 N.m (2 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing rear underbody panelling

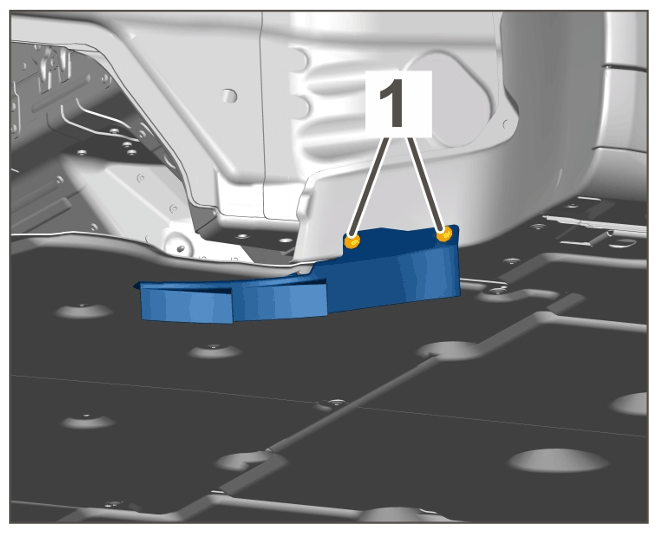

Screws for front cover (fin)	Item 1	Tightening torque	3.2 N.m (2.1 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for front cover (fin)

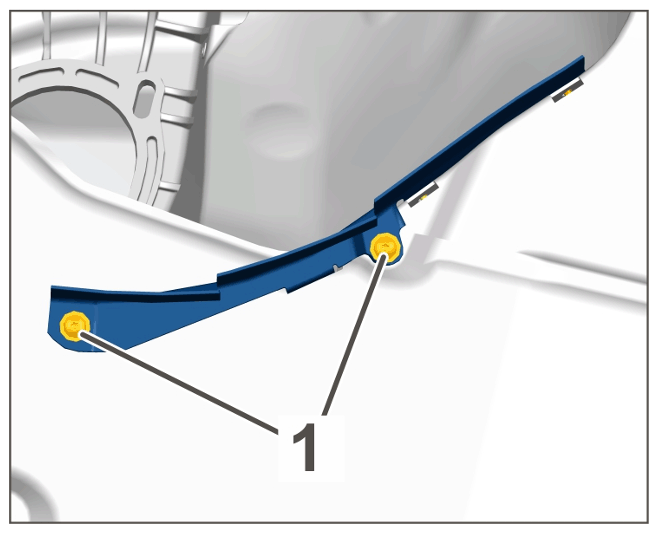

Screws for front cover (fin)	Item 1	Tightening torque	3.2 N.m (2.1 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for front cover (fin)

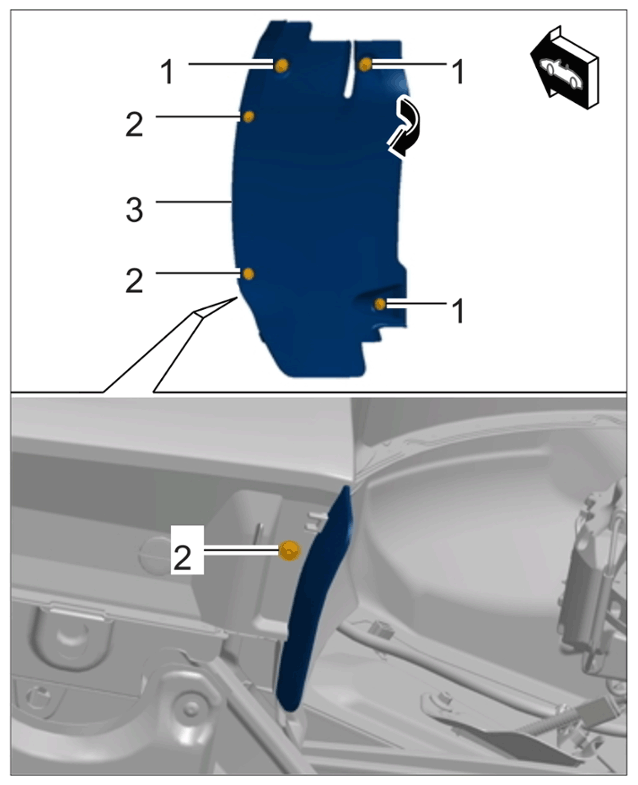

Fastening nut securing rear wheel housing liner to body	Item 1	Tightening torque	3 N.m (2 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing rear wheel housing liner
Fastening screw securing rear wheel housing liner to side-section trim	Item 2	Tightening torque	3 N.m (2 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing rear wheel housing liner
