WM, 5X00IN Technical Values: Notes

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2021 Porsche 718 Cayman, 2021 Porsche 718 Boxster, 2020 Porsche 718 Cayman, 2020 Porsche 718 Boxster, and 2019 Porsche 718 Cayman. However, it is still accessible from the selected car via links, so may be relevant.

TECHNICAL VALUE SPECIFICATION

Location	Description	Type	Basic value

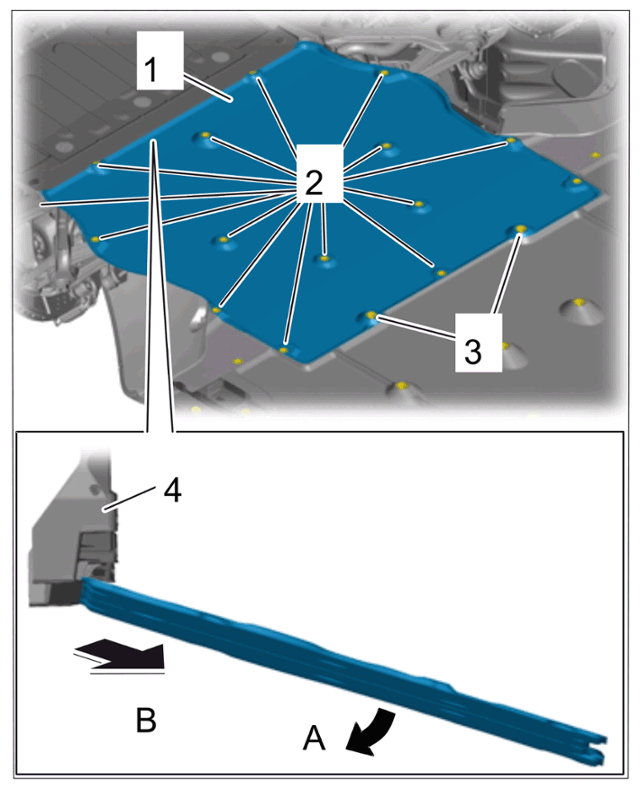

Fastening screws securing underbody cover to body	Item 2	Tightening torque	3 N.m (2 ft.lb)

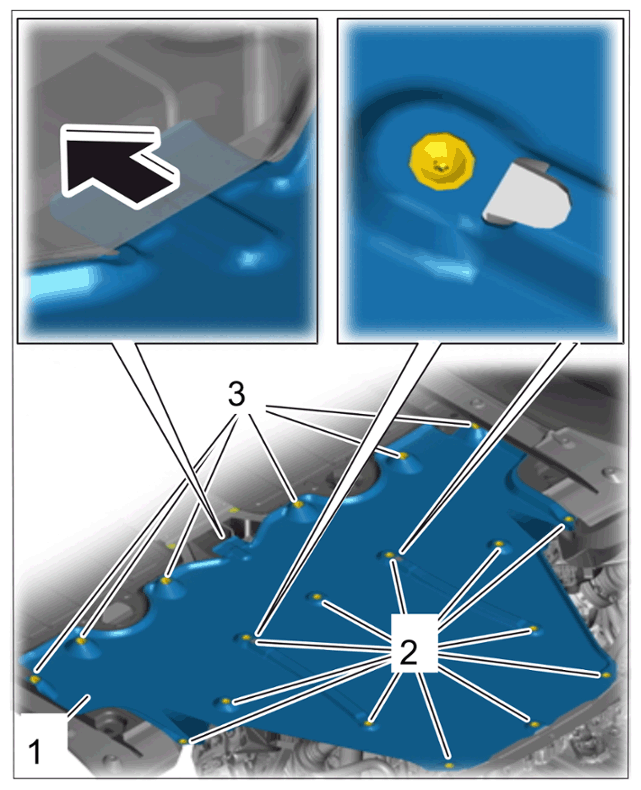

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing cover for front underbody
Fastening nuts securing underbody cover to body	Item 3	Tightening torque	3 N.m (2 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing cover for front underbody

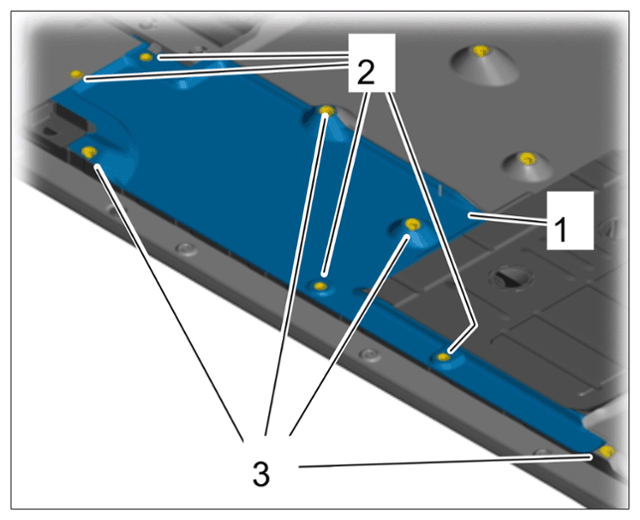

Fastening screws securing underbody cover to body	Item 2	Tightening torque	3 N.m (2 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing side cover
Fastening nuts securing underbody cover to body	Item 3	Tightening torque	3 N.m (2 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing side cover
Fastening screws securing underbody cover to body	Item 2	Tightening torque	3 N.m (2 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing middle cover
Fastening nuts securing underbody cover to body	Item 3	Tightening torque	3 N.m (2 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing middle cover

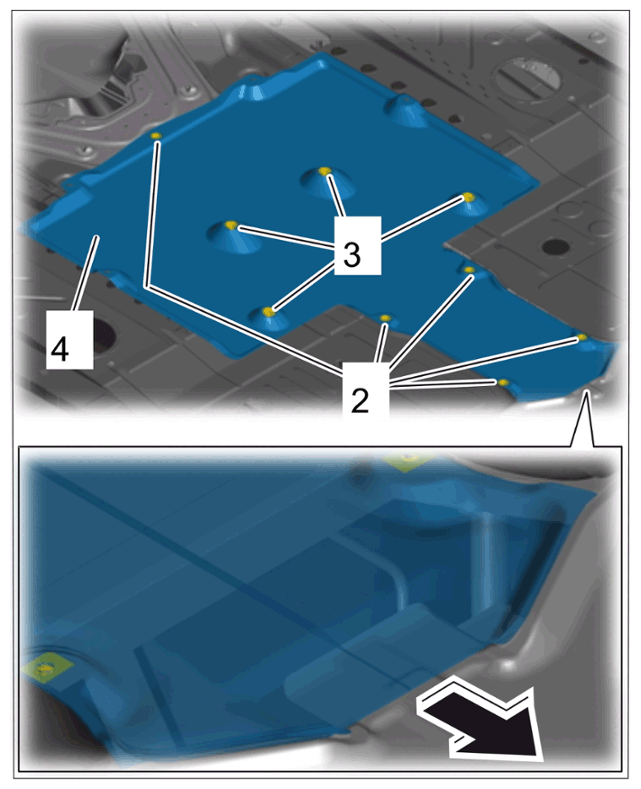

Fastening screws securing underbody cover to body	Item 2	Tightening torque	3 N.m (2 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing rear underbody panelling
Fastening nuts securing underbody cover to body	Item 3	Tightening torque	3 N.m (2 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing rear underbody panelling

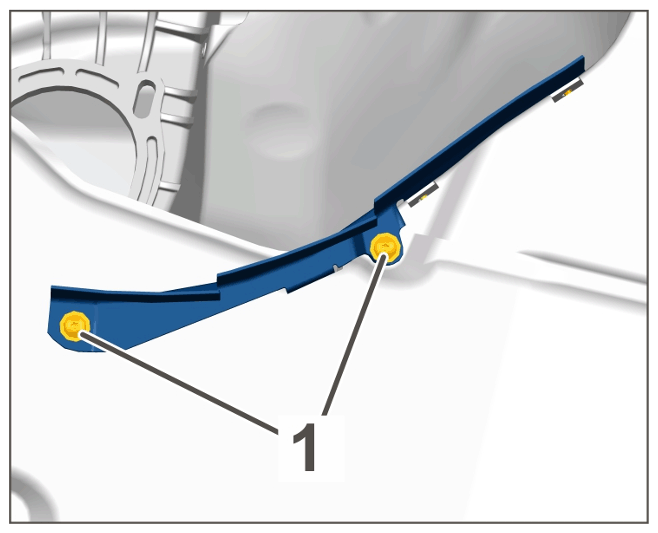

Screws for front cover (fin)	Item 1	Tightening torque	3.2 N.m (2.1 ft.lb)

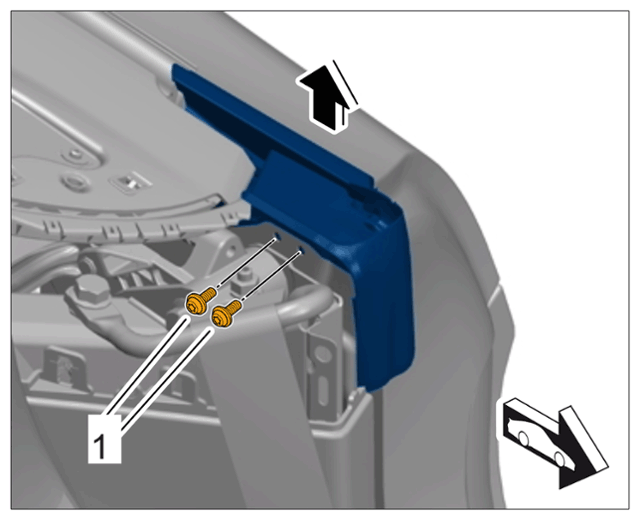

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for front cover (fin)
Screws for front cover (fin)	Item 1	Tightening torque	3.2 N.m (2.1 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for front cover (fin)
Fastening nut securing rear wheel housing liner to body	Item 1	Tightening torque	3 N.m (2 ft.lb)

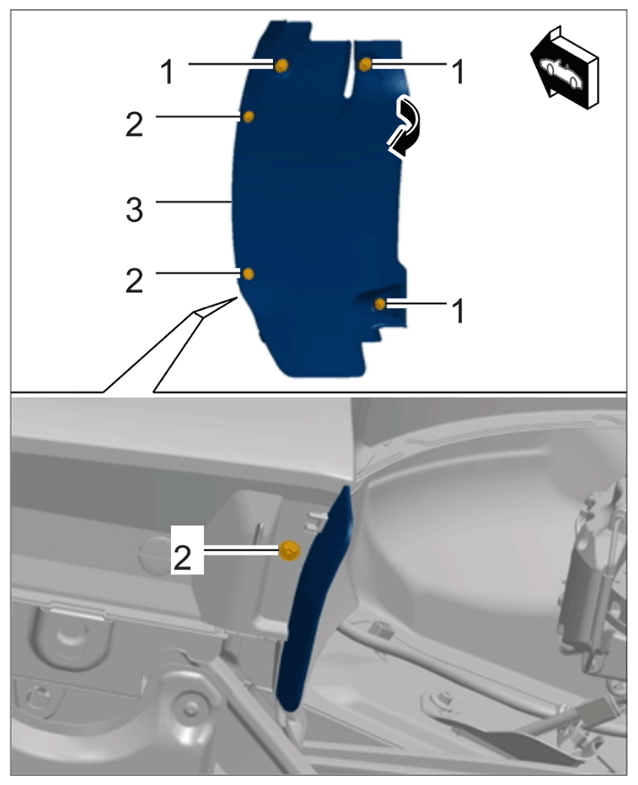

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing rear wheel housing liner
Fastening screw securing rear wheel housing liner to side-section trim	Item 2	Tightening torque	3 N.m (2 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing rear wheel housing liner

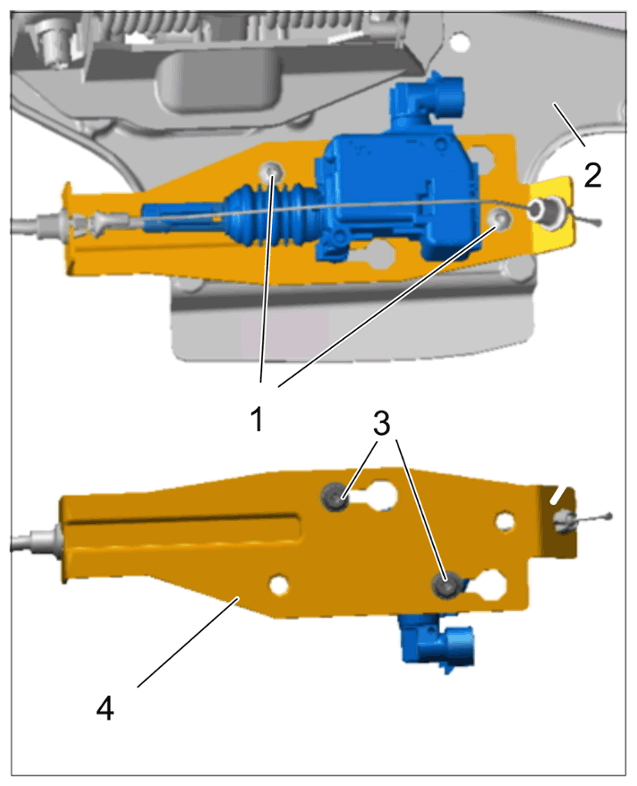

Fastening screw securing retaining bracket to rear spoiler	Item 1	Tightening torque	10 N.m (7.5 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing holder for lid release motor
Fastening screw securing rear lid release motor to retaining bracket	Item 3	Tightening torque	2.5 N.m (2 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing holder for lid release motor
Fastening screws on lower part of rear lid lock	Item 1	Tightening torque	10 N.m (7.5 ft.lb)

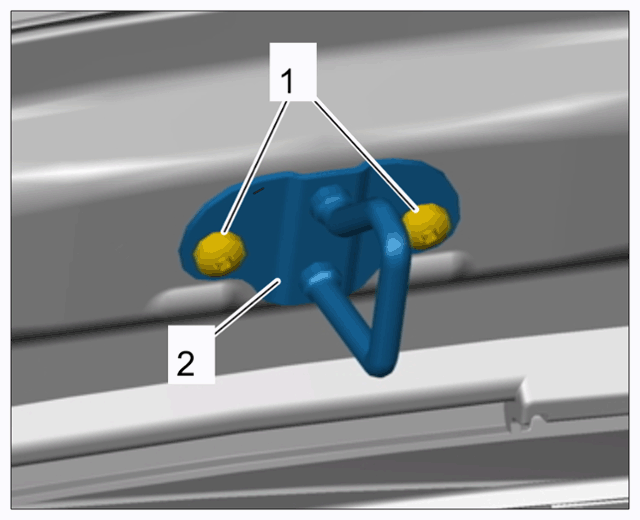

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing lower part of rear lid lock
Fastening screws on upper part of lid lock	Item 1	Tightening torque	10 N.m (7.5 ft.lb)

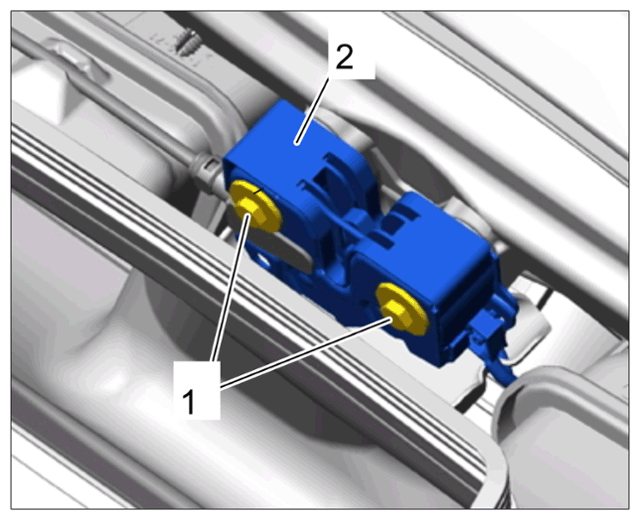

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing upper part of rear lid lock

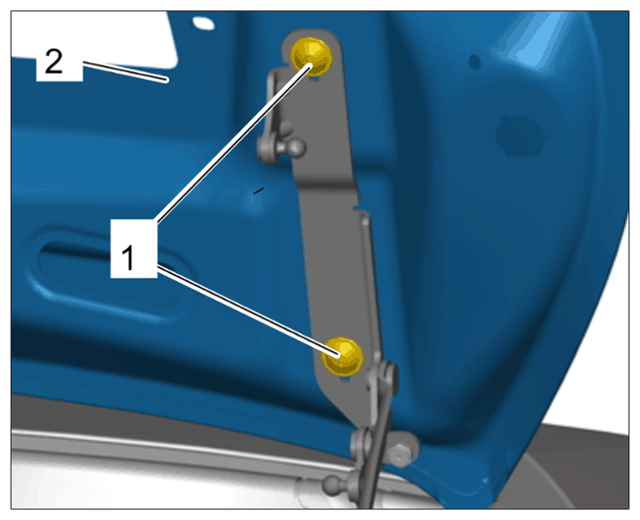

Fastening screw securing hinge to rear lid	Item 1	Tightening torque	10 N.m (7.5 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Adjusting rear lid in X and Y direction

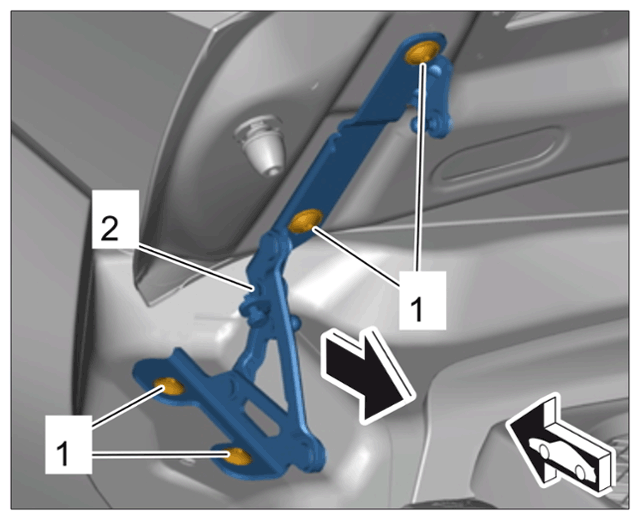

Fastening screws on rear lid hinge	Item 1	Tightening torque	10 N.m (7.5 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing lid hinge

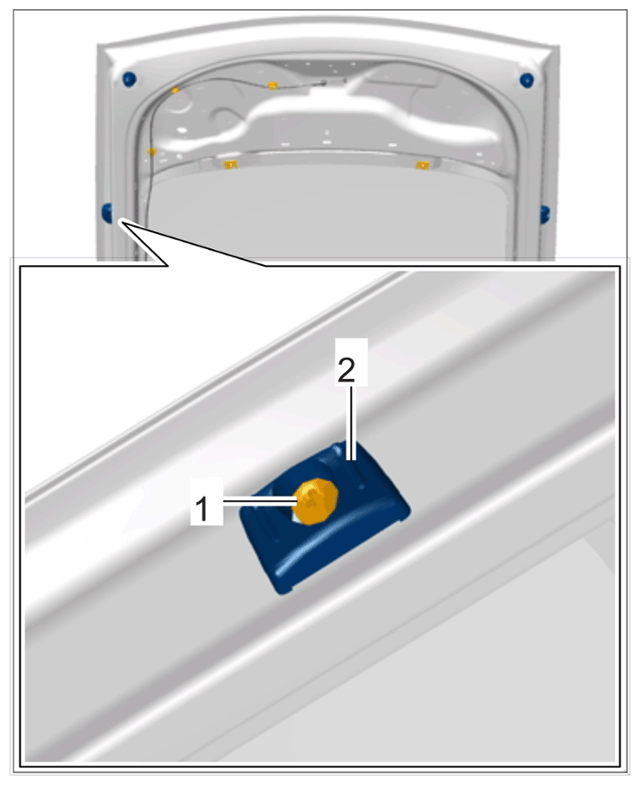

Lid adjusting element	Item 1	Adjustment value	2 mm

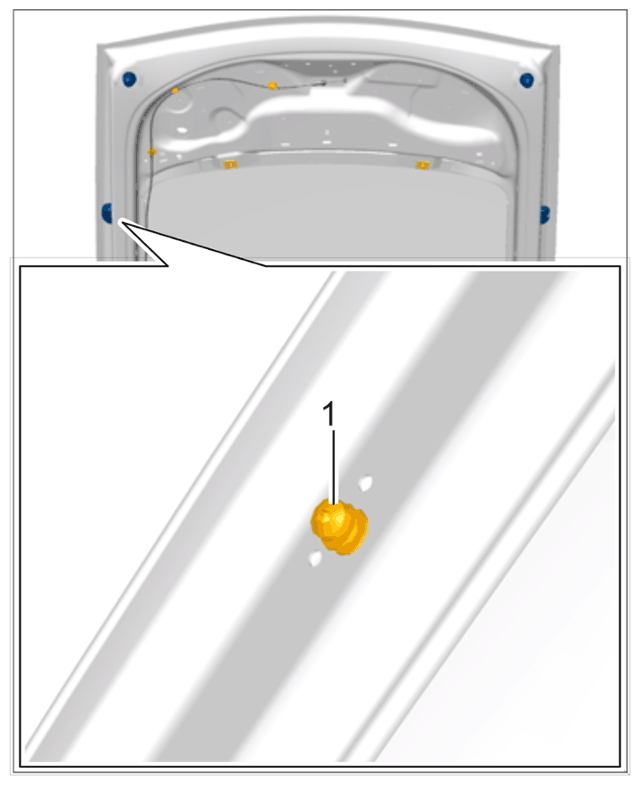

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Adjusting rear lid in Z direction

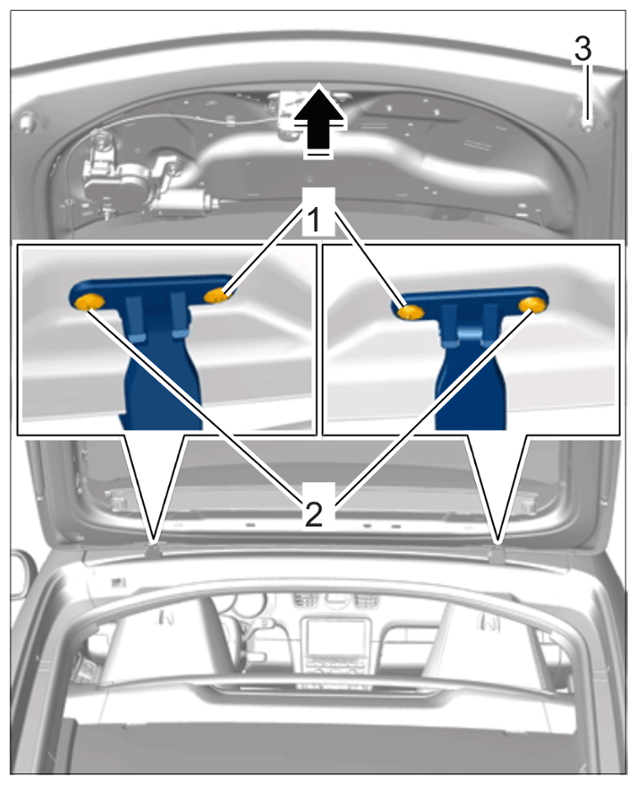

Fastening screws securing lid hinge to lid	Item 1 + 2	Tightening torque	10 N.m (7.5 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing rear lid

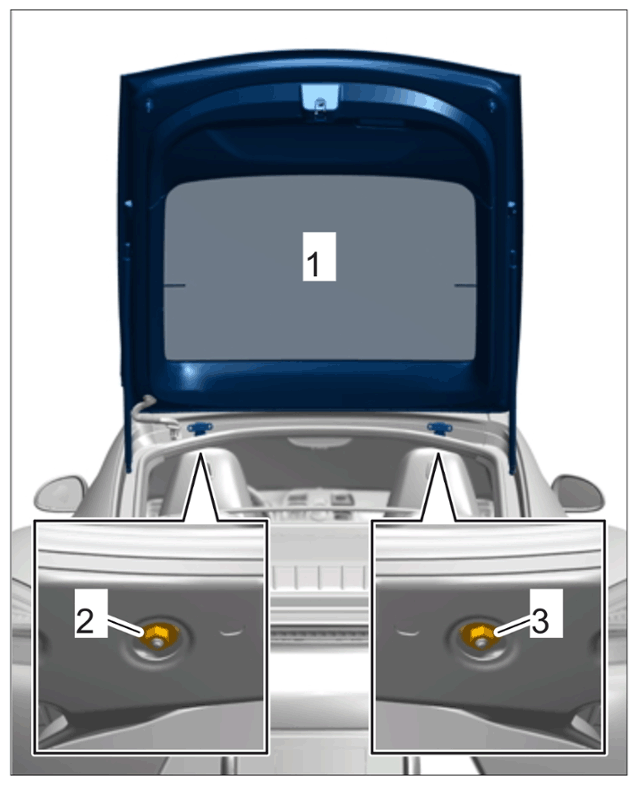

Fastening screw securing lid hinge to bodyshell	Item 2 + 3	Tightening torque	23 N.m (17 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing lid hinge

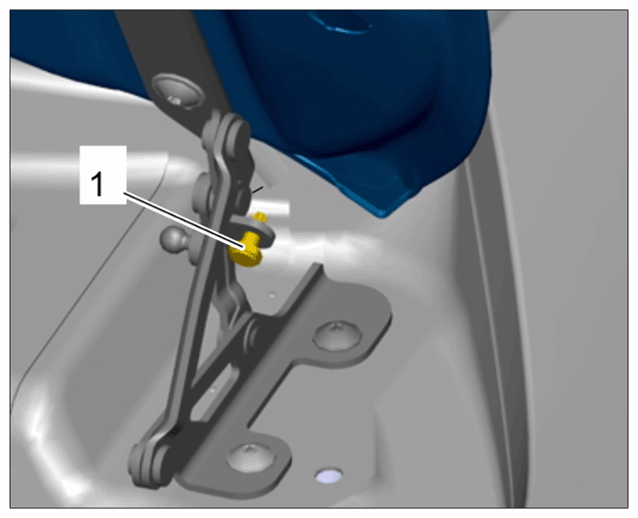

Ball pin to rear lid	Item 1	Tightening torque	23 N.m (17 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing ball pin for gas-filled shock absorber
Fastening screw on base plate for lid	Item 1	Tightening torque	10 N.m (7.5 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing base plate
Fastening screw securing door arrester to body		Tightening torque	35 N.m (26 ft.lb)

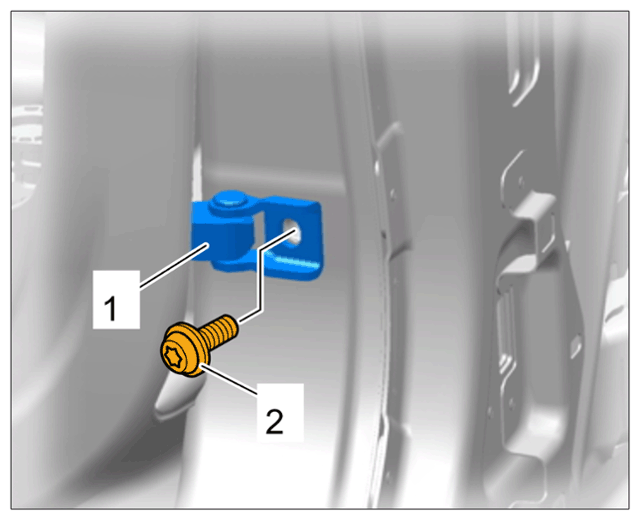

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Loosening door arrester on body side

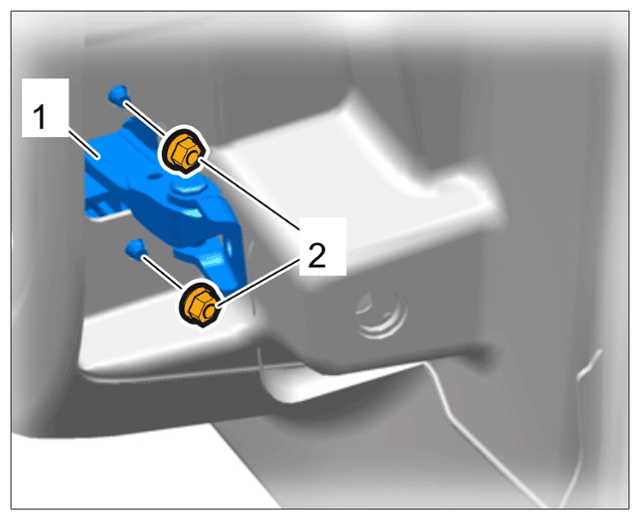

Fastening nut securing door arrester to door		Tightening torque	10 N.m (7.5 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing door arrester
Fastening screw for B-pillar seal		Tightening torque	3.5 N.m (2.5 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing seal
Fastening nuts securing bracket to body		Tightening torque	10 N.m (7.5 ft.lb)
Fastening screws securing wing to body		Tightening torque	10 N.m (7.5 ft.lb)
