Gap dimensions of front wing

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2021 Porsche 718 Cayman, 2021 Porsche 718 Boxster, 2020 Porsche 718 Cayman, 2020 Porsche 718 Boxster, and 2019 Porsche 718 Cayman. However, it is still accessible from the selected car via links, so may be relevant.

Location	Type	Basic value	Tolerance

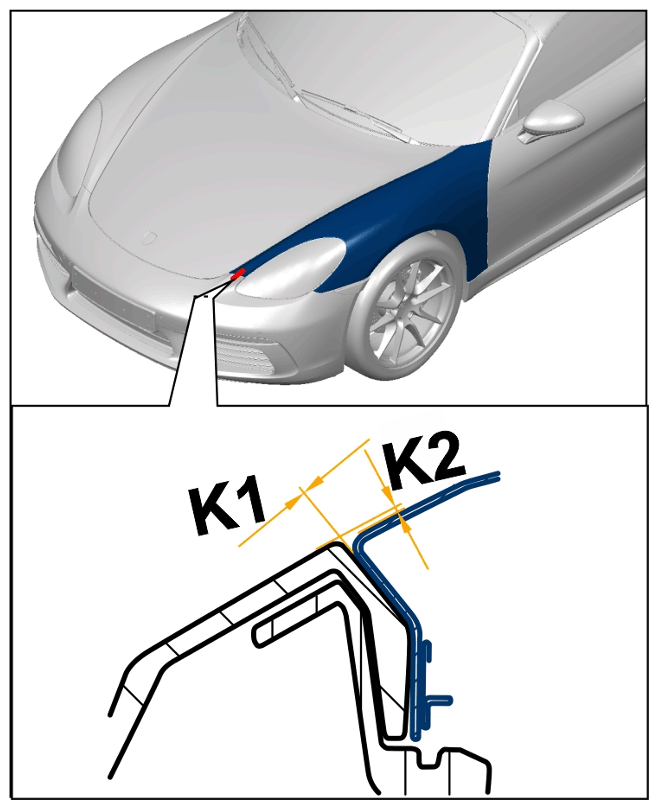

Wing to front apron (K1)	Gap dimension	0 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front wing
Wing to front apron (K2)	Gap dimension	0.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front wing

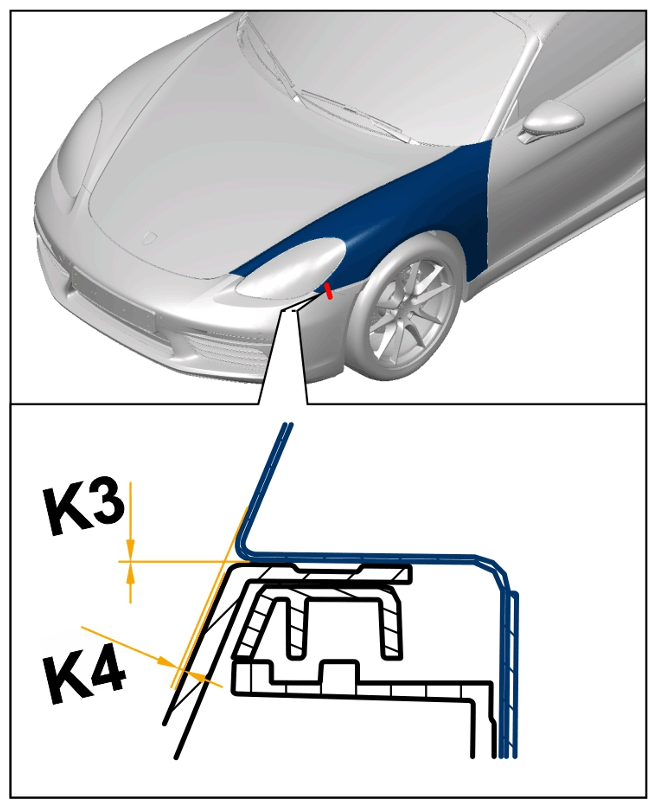

Wing to front apron (K3)	Gap dimension	0 mm	+ 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front wing
Wing to front apron (K4)	Gap dimension	0.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front wing

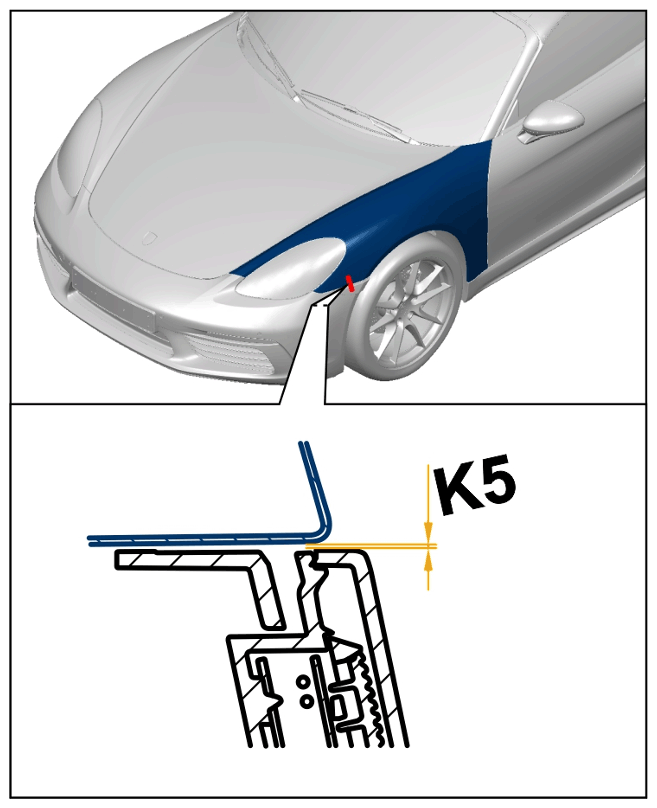

Wing to side direction indicator (K5)	Gap dimension	0.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front wing

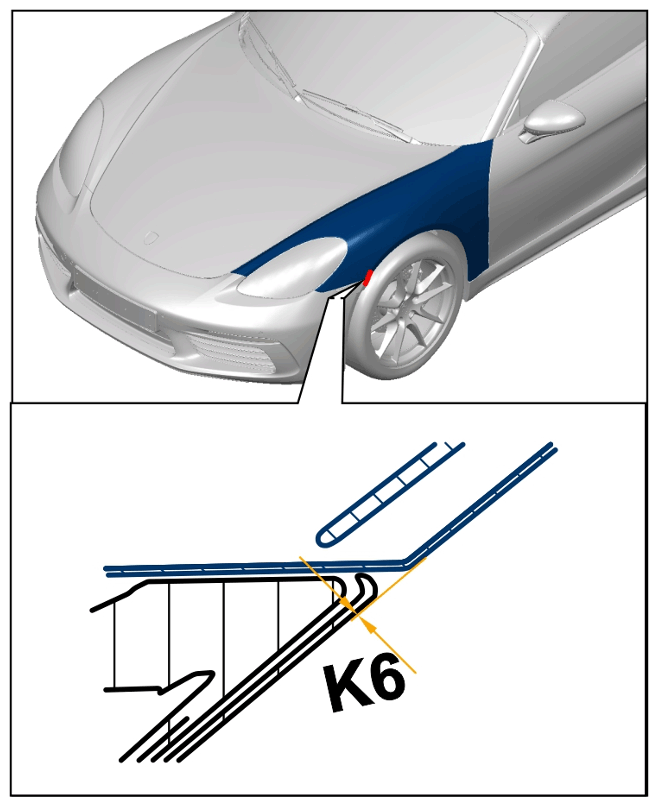

Wing to side direction indicator (K6)	Gap dimension	0 mm	+/- 1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front wing

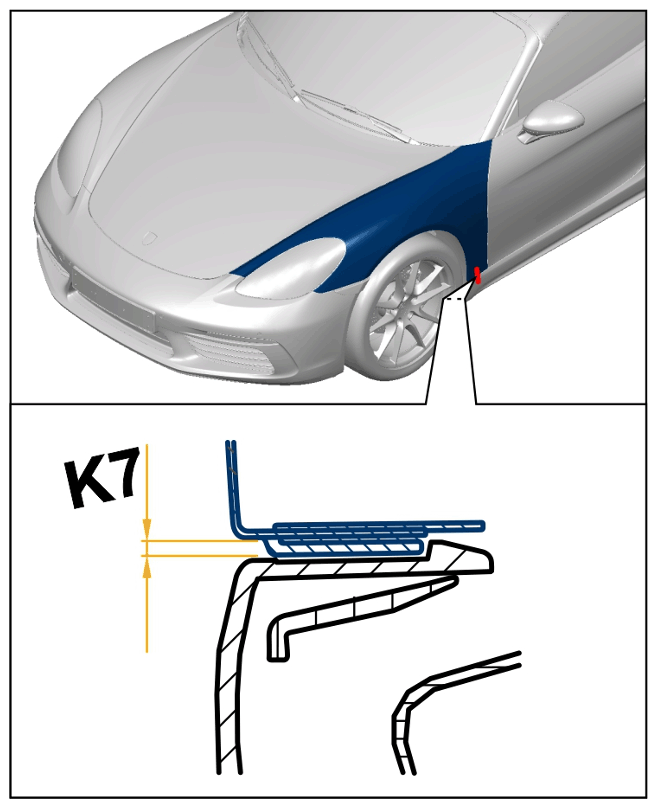

Wing to door entry guard (K7)	Gap dimension	3 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front wing
