WM, 5X00IN Gap Dimension: Notes

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2021 Porsche 718 Cayman, 2021 Porsche 718 Boxster, 2020 Porsche 718 Cayman, 2020 Porsche 718 Boxster, and 2019 Porsche 718 Cayman. However, it is still accessible from the selected car via links, so may be relevant.

TECHNICAL VALUE SPECIFICATION

Location	Description	Type	Basic value	Tolerance 1

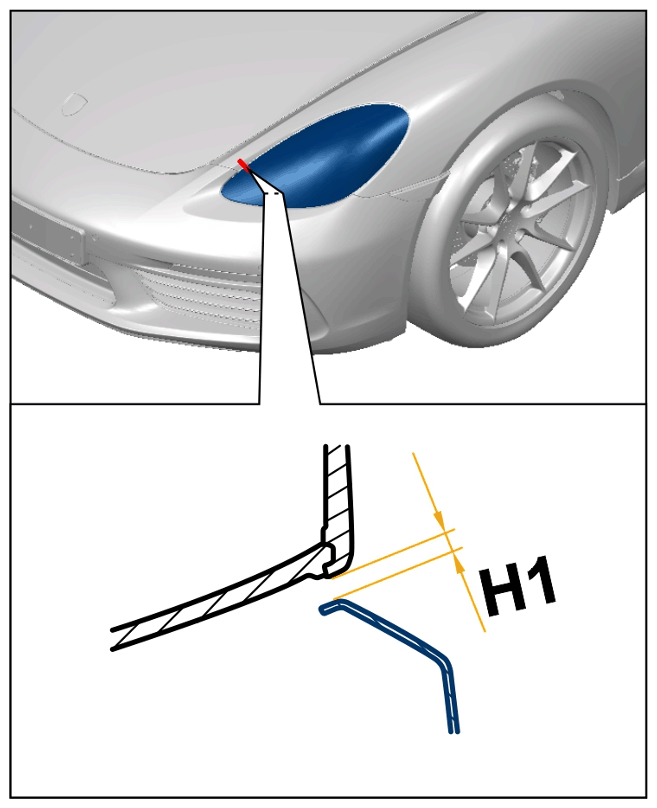

Main headlight to wing (H1)		Gap dimension	3.3 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of main headlights
Main headlight to wing (H2)		Gap dimension	3 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of main headlights

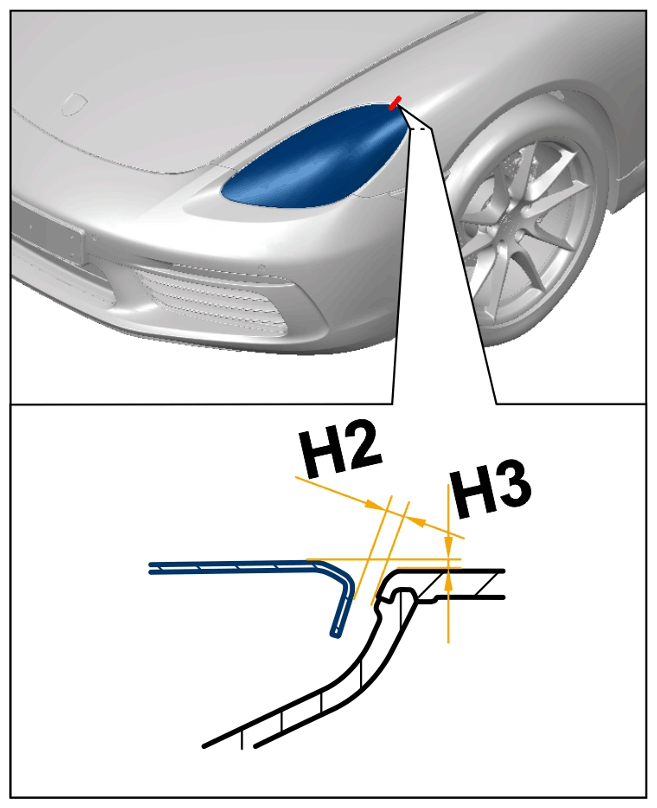

Main headlight to wing (H3)		Gap dimension	0.8 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of main headlights

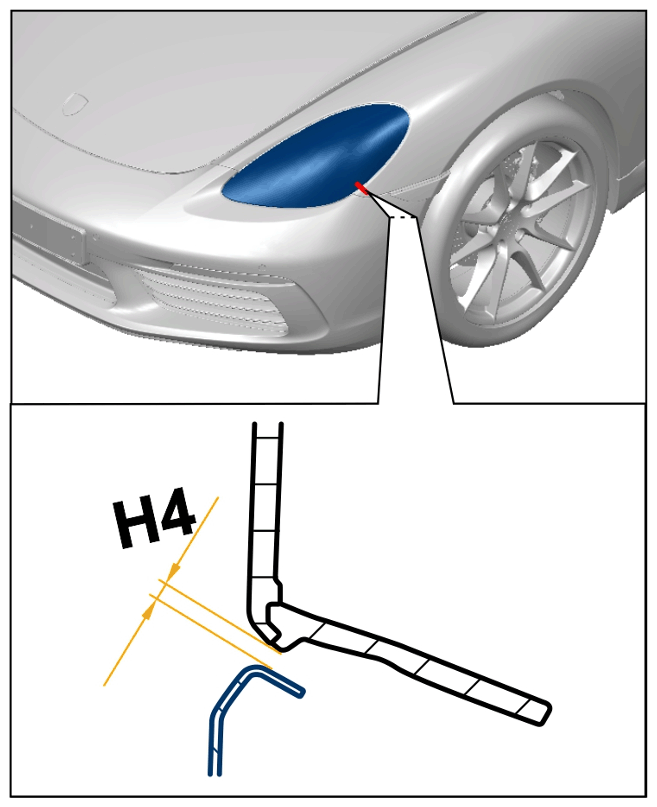

Main headlight to wing (H4)		Gap dimension	3 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of main headlights

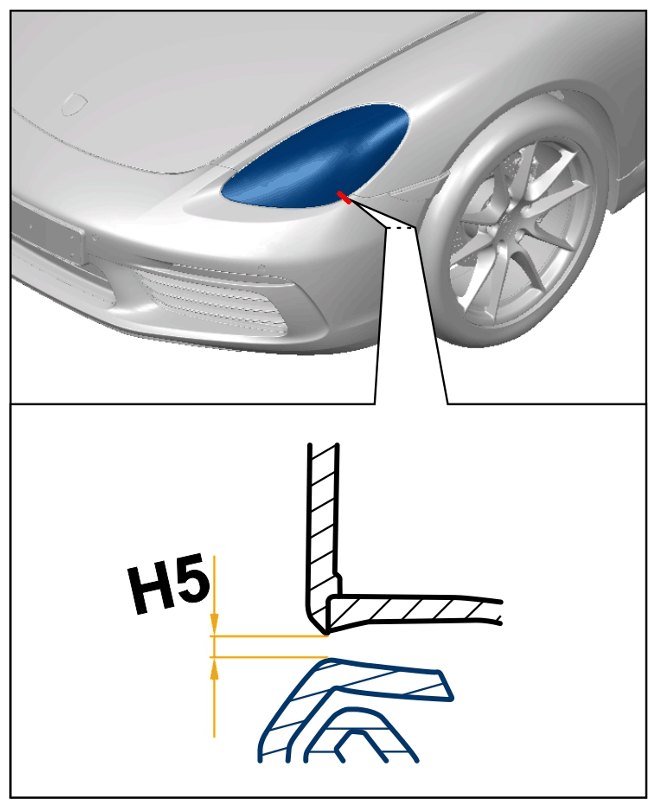

Main headlight to front apron (H5)		Gap dimension	3 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of main headlights

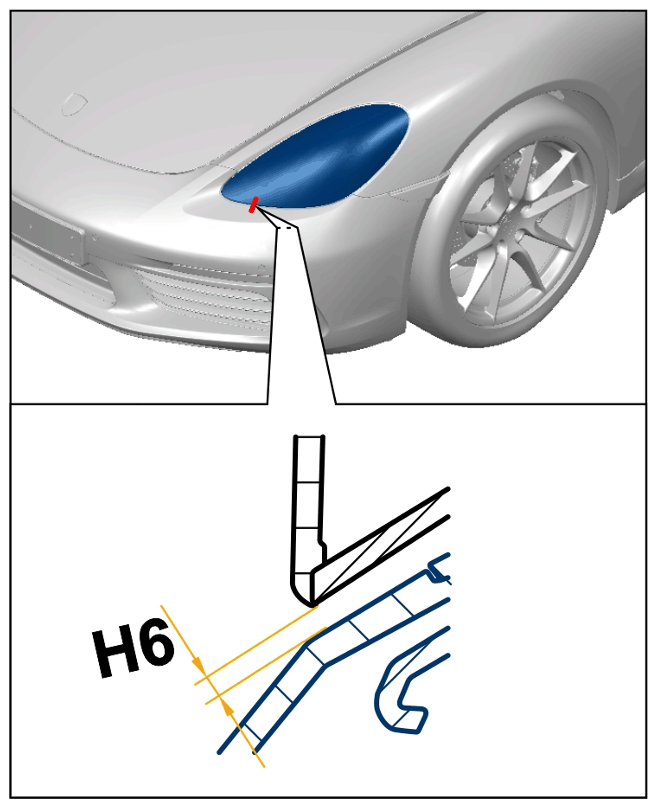

Main headlight to front apron (H6)		Gap dimension	3 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of main headlights

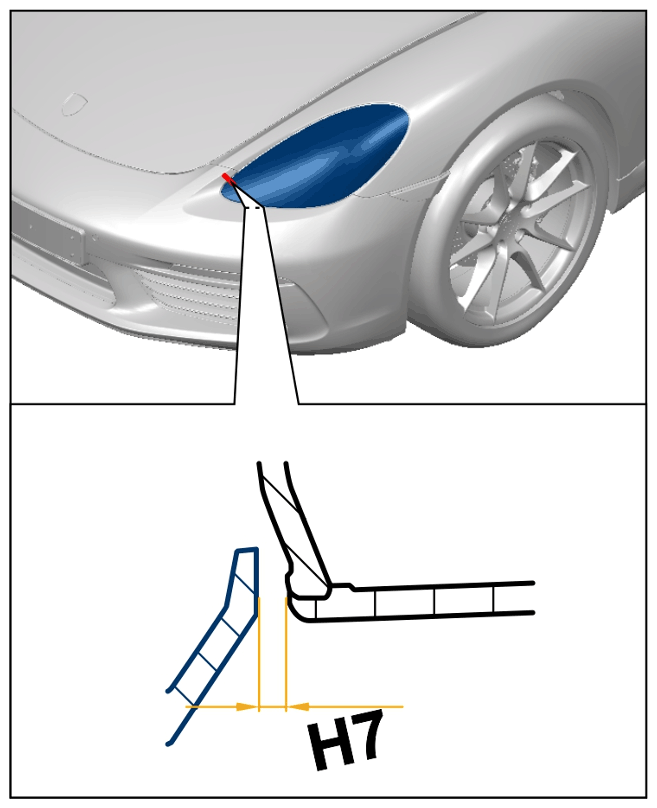

Main headlight to front apron (H7)		Gap dimension	3 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of main headlights

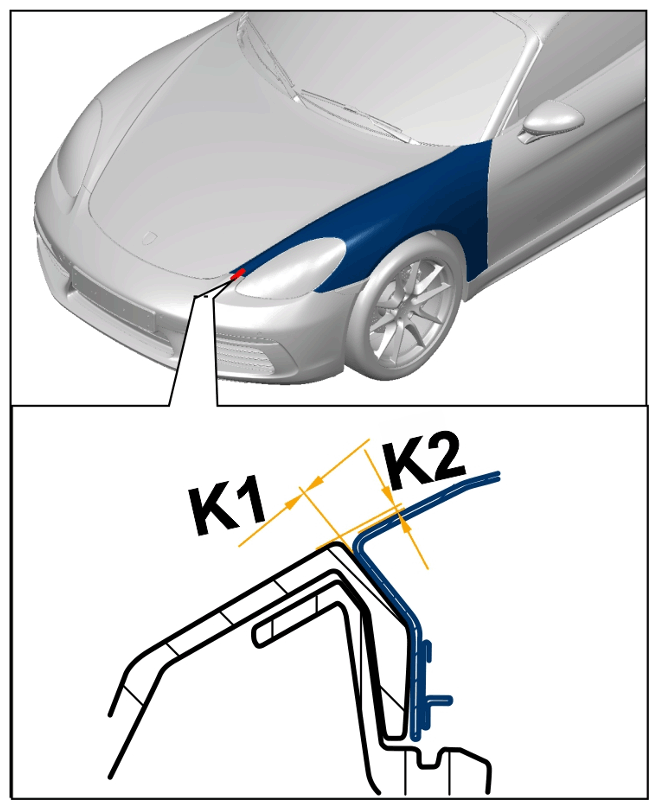

Wing to front apron (K1)		Gap dimension	0 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front wing
Wing to front apron (K2)		Gap dimension	0.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front wing

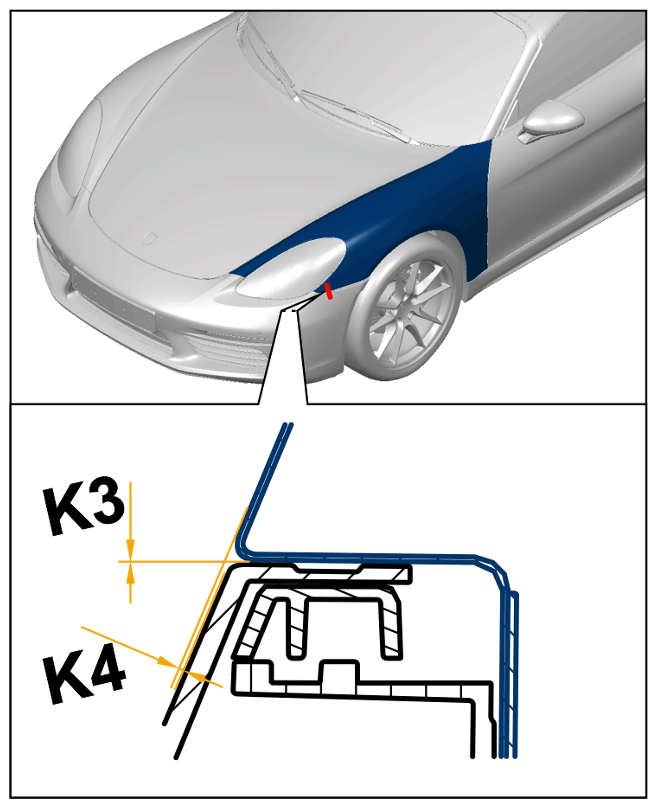

Wing to front apron (K3)		Gap dimension	0 mm	+ 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front wing
Wing to front apron (K4)		Gap dimension	0.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front wing

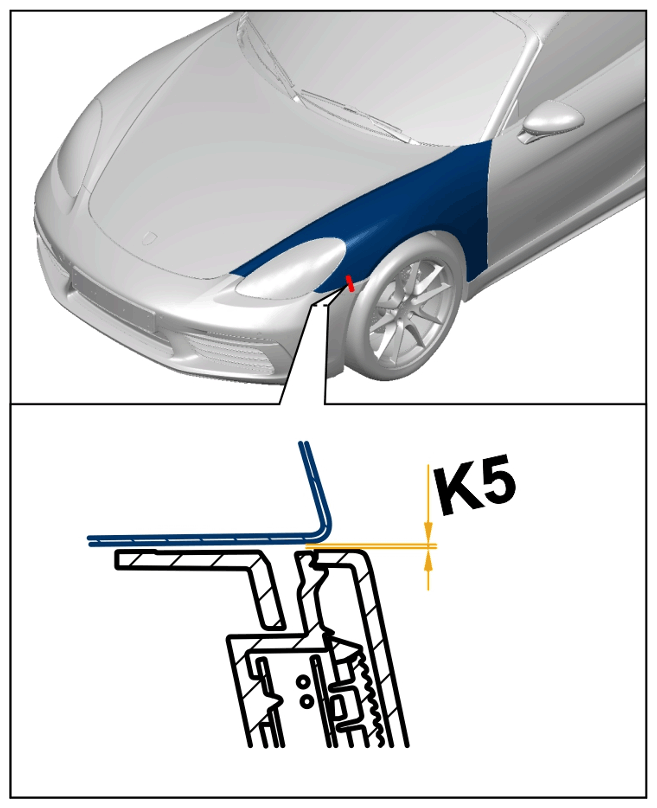

Wing to side direction indicator (K5)		Gap dimension	0.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front wing

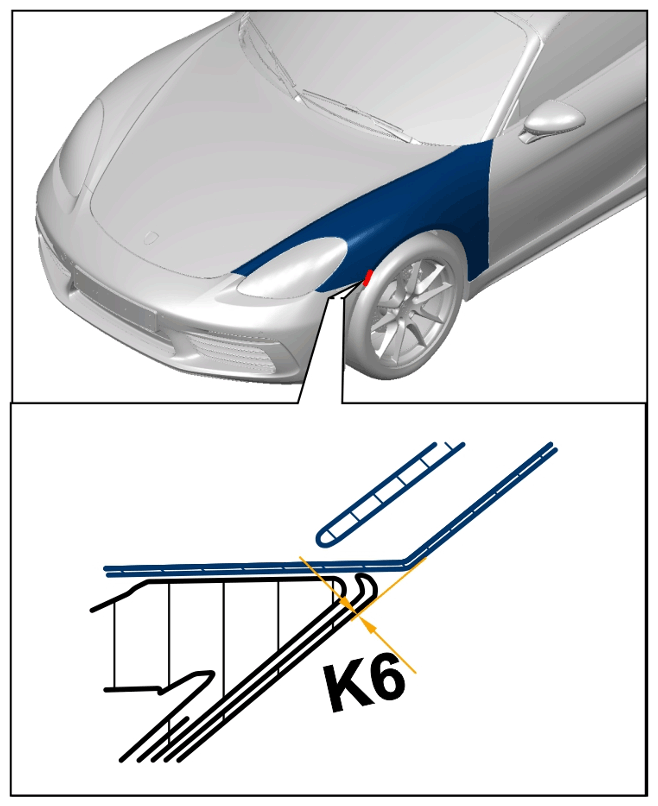

Wing to side direction indicator (K6)		Gap dimension	0 mm	+/- 1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front wing

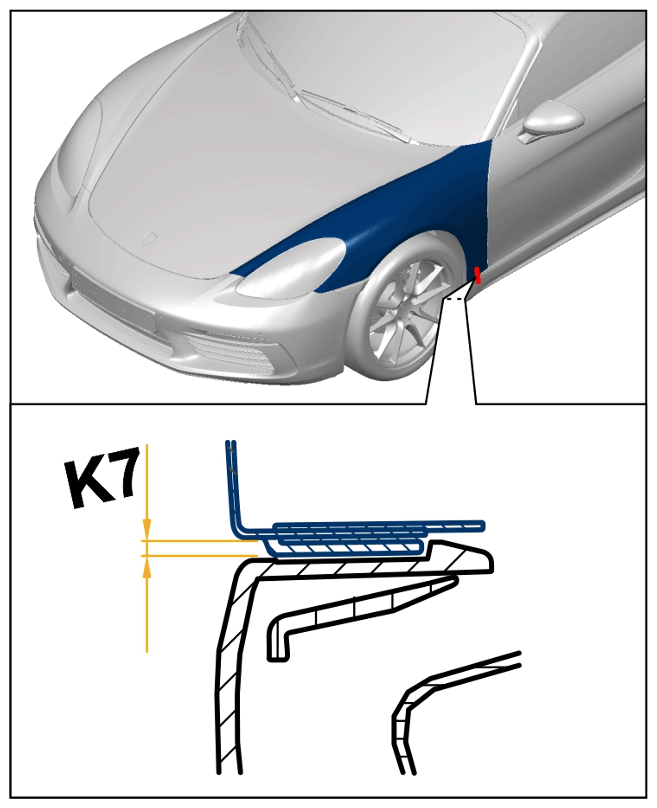

Wing to door entry guard (K7)		Gap dimension	3 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front wing

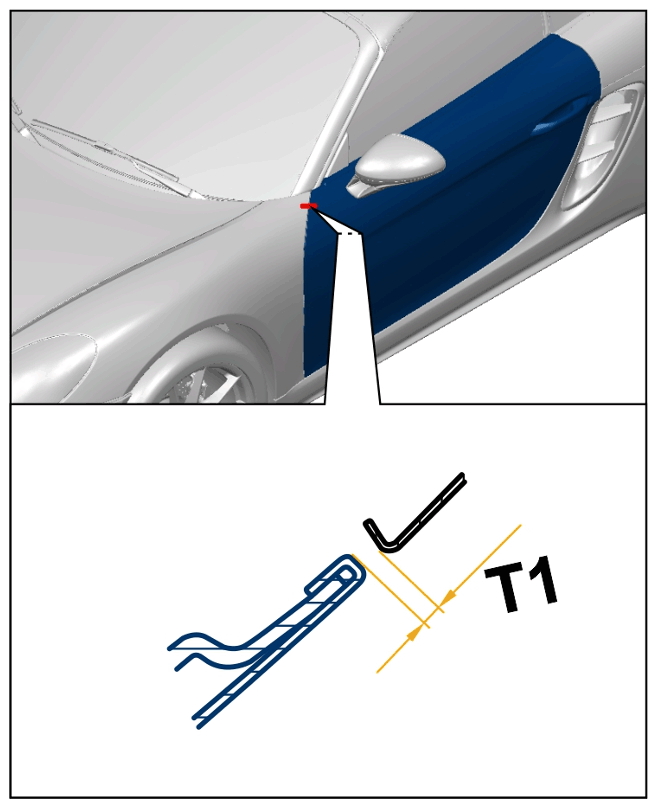

Front door to wing (T1)		Gap dimension	3 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front door

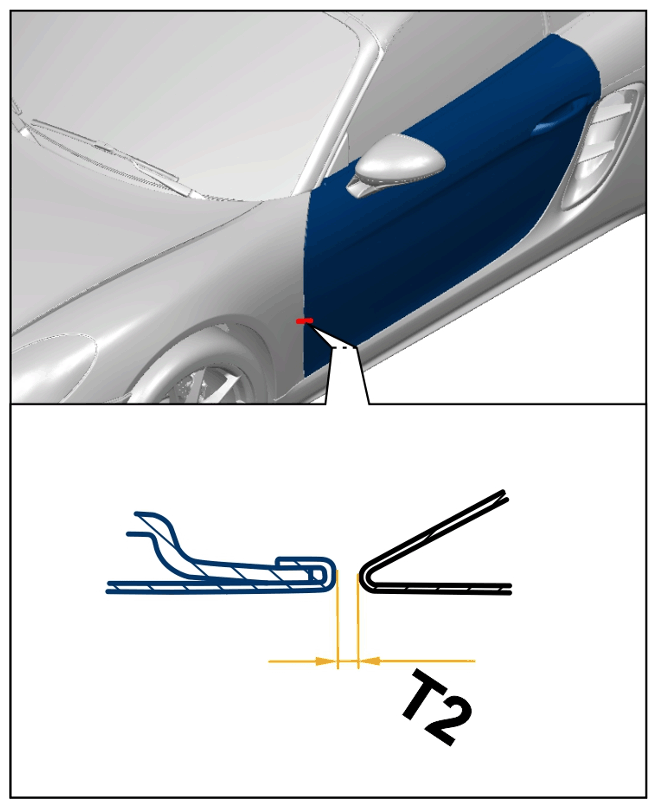

Front door to wing (T2)		Gap dimension	3.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front door

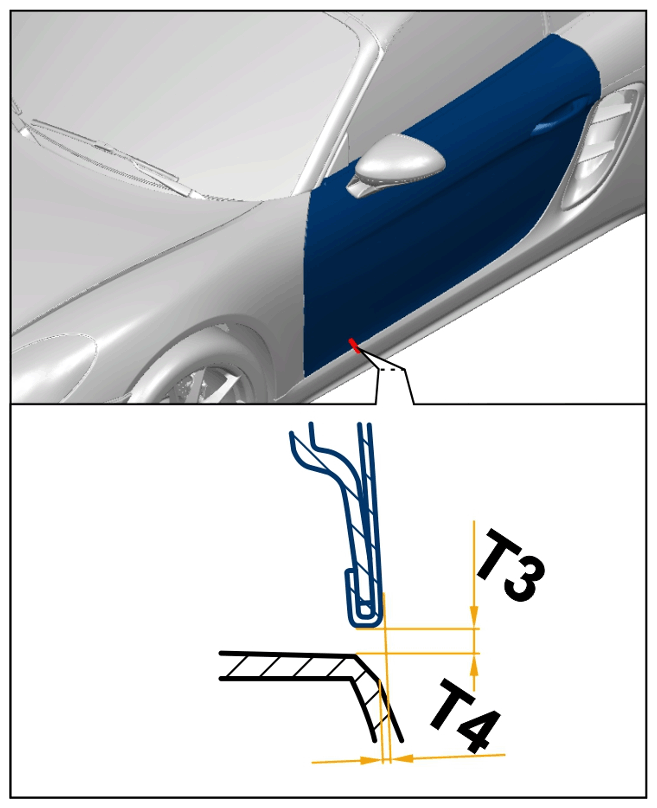

Front door to door entry guard (T3)		Gap dimension	3.5 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front door
Front door to door entry guard (T4)		Gap dimension	1.3 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front door
Front door to door entry guard (T5)		Gap dimension	3.5 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front door
Front door to door entry guard (T6)		Gap dimension	1 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front door

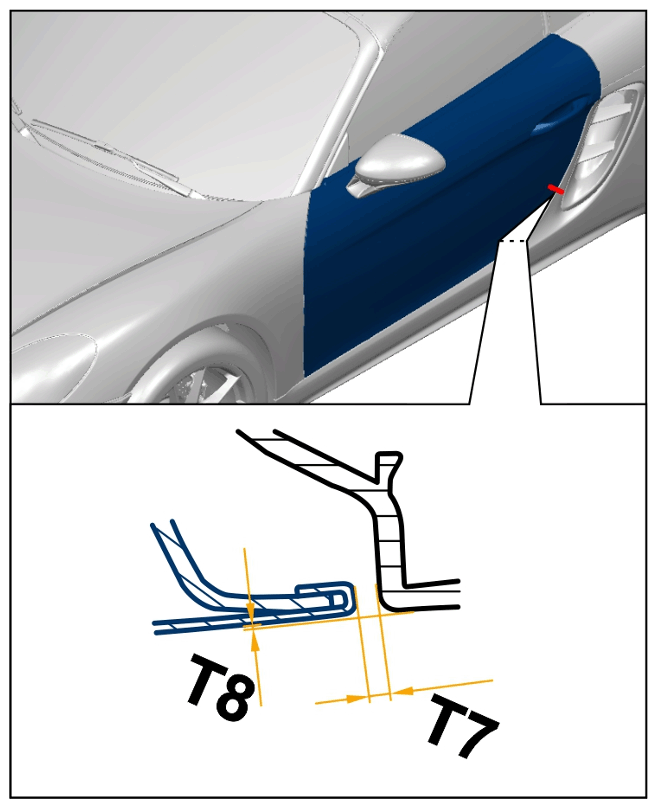

Front door to door entry guard (T7)		Gap dimension	3 mm	0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front door
Front door to door entry guard (T8)		Gap dimension	0.5 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front door

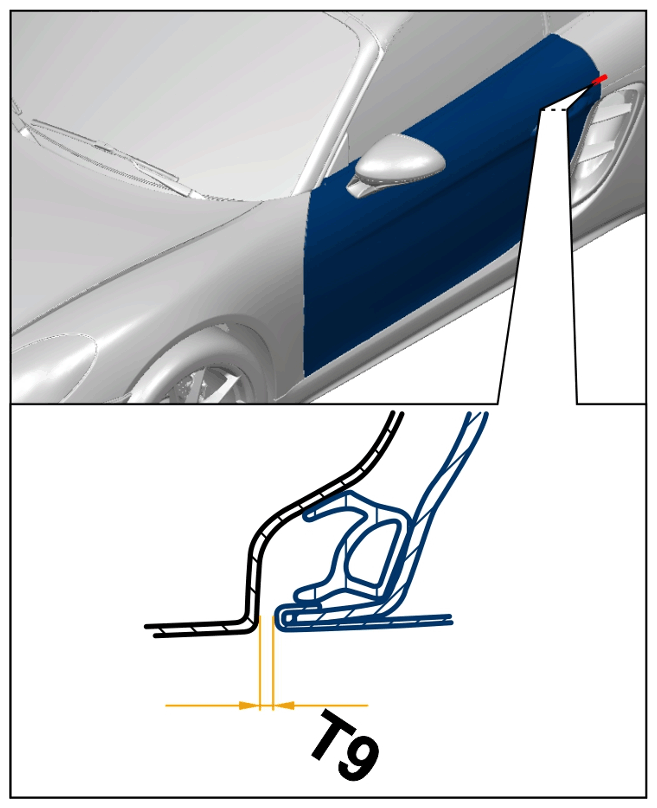

Front door to rear wing (T9)		Gap dimension	3 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front door

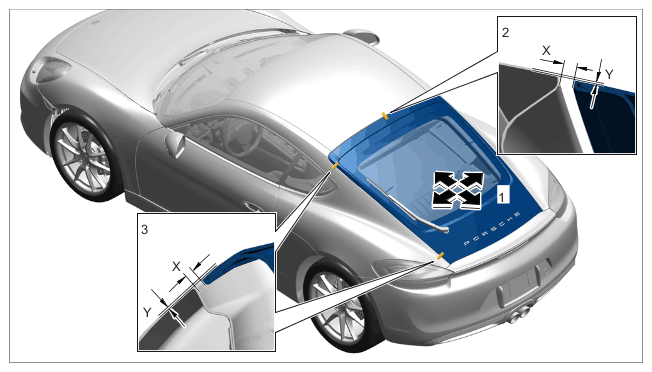

Gap between roof and rear lid	Illustration 2, pos. X	Gap dimension	5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Adjusting rear lid
Gap between roof and rear lid	Illustration 2, pos. Y	Gap dimension	0 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Adjusting rear lid
Gap between rear lid and side panel	Illustration 3, pos. X	Gap dimension	3.5 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Adjusting rear lid
Gap between rear lid and side panel	Illustration 3, pos. Y	Gap dimension	0 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Adjusting rear lid

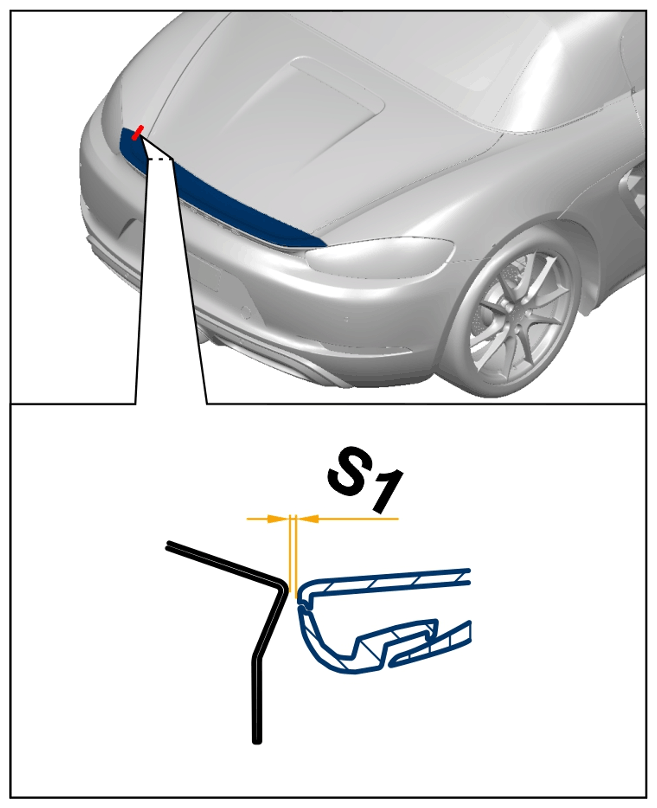

Rear spoiler to rear wing (S1)		Gap dimension	3 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of rear spoiler

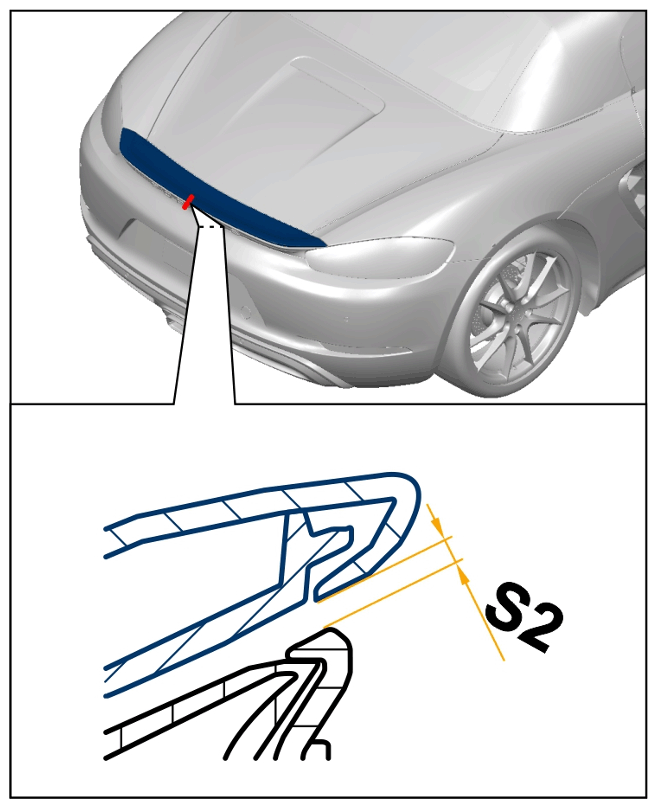

Rear spoiler to logo trim (S2)		Gap dimension	3.5 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of rear spoiler
