Gap dimensions of front door

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2021 Porsche 718 Cayman, 2021 Porsche 718 Boxster, 2020 Porsche 718 Cayman, 2020 Porsche 718 Boxster, and 2019 Porsche 718 Cayman. However, it is still accessible from the selected car via links, so may be relevant.

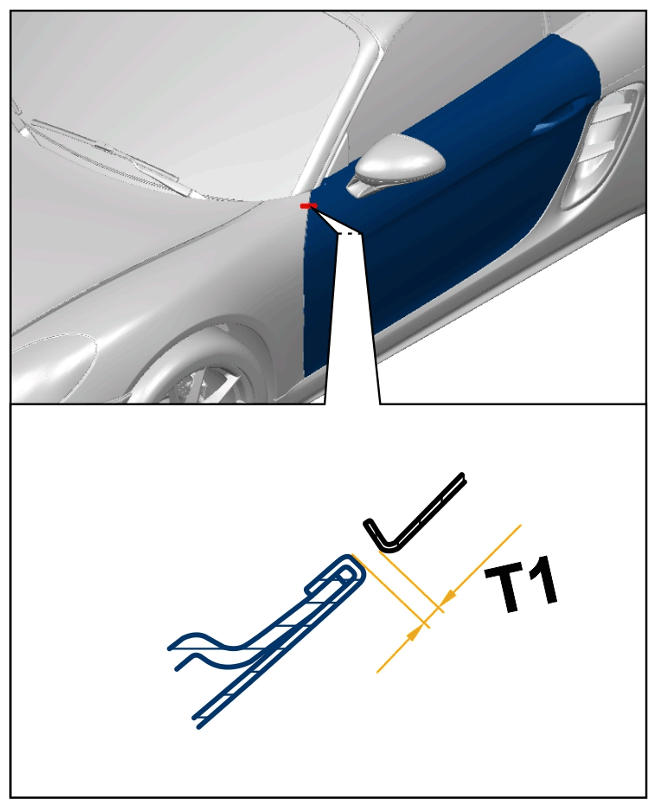

Front door to wing (T1)	Gap dimension	3 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front door

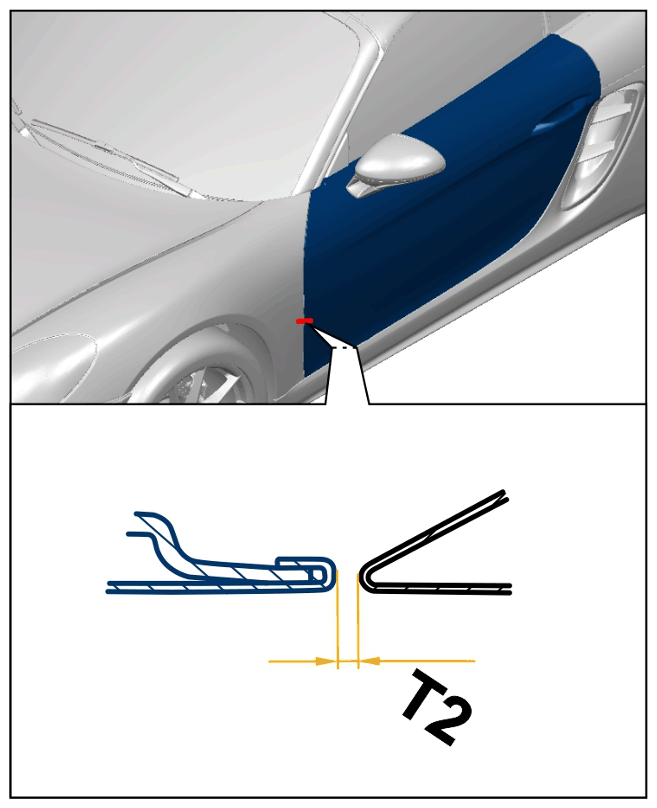

Front door to wing (T2)	Gap dimension	3.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front door

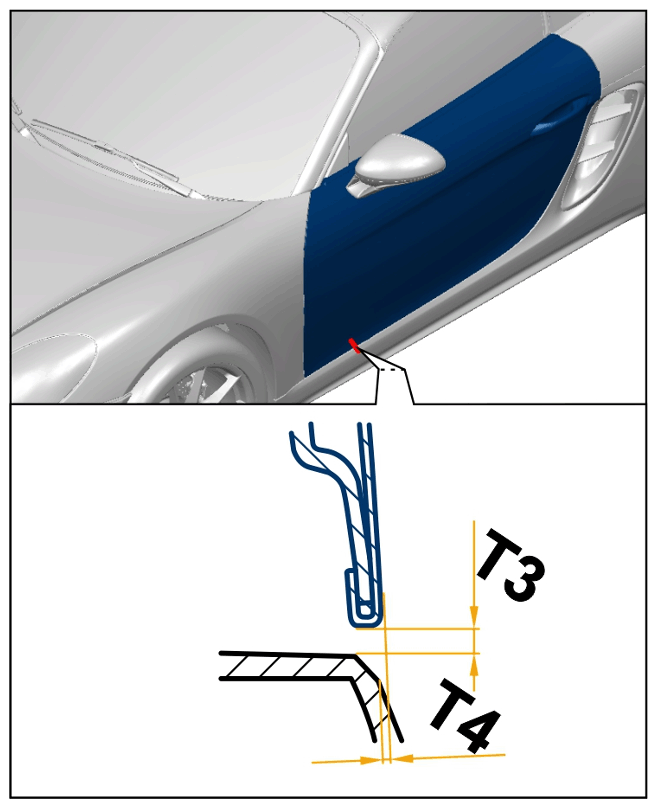

Front door to door entry guard (T3)	Gap dimension	3.5 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front door
Front door to door entry guard (T4)	Gap dimension	1.3 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front door
Front door to door entry guard (T5)	Gap dimension	3.5 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front door
Front door to door entry guard (T6)	Gap dimension	1 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front door

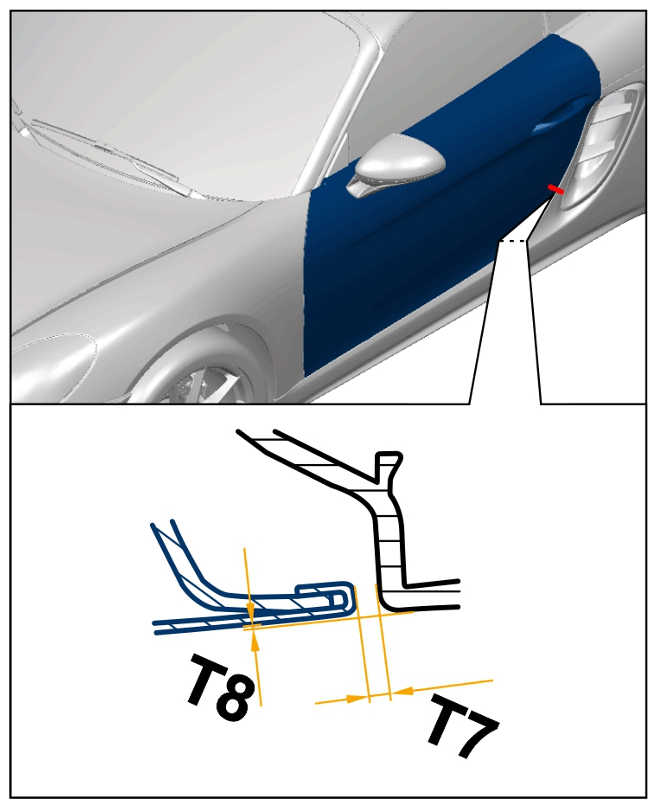

Front door to door entry guard (T7)	Gap dimension	3 mm	0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front door
Front door to door entry guard (T8)	Gap dimension	0.5 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front door

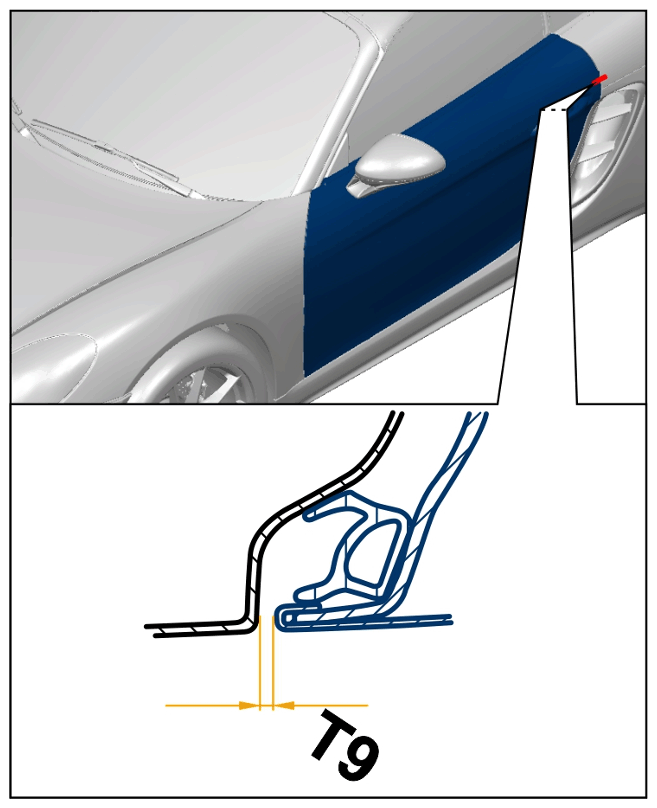

Front door to rear wing (T9)	Gap dimension	3 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front door
