Gap dimensions of rear lid

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2021 Porsche 718 Cayman, 2021 Porsche 718 Boxster, 2020 Porsche 718 Cayman, 2020 Porsche 718 Boxster, and 2019 Porsche 718 Cayman. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value	Tolerance

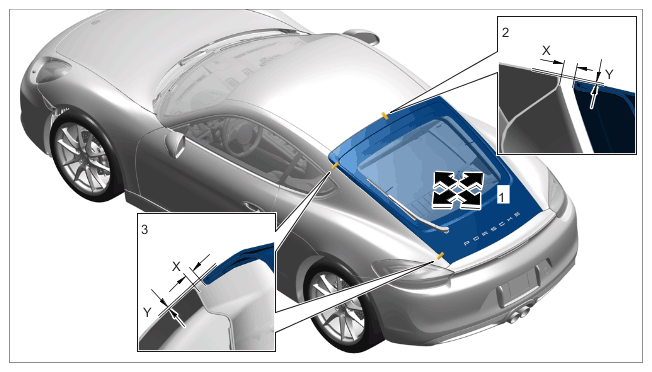

Gap between roof and rear lid	Illustration 2, pos. X	Gap dimension	5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Adjusting rear lid
Gap between roof and rear lid	Illustration 2, pos. Y	Gap dimension	0 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Adjusting rear lid
Gap between rear lid and side panel	Illustration 3, pos. X	Gap dimension	3.5 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Adjusting rear lid
Gap between rear lid and side panel	Illustration 3, pos. Y	Gap dimension	0 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Adjusting rear lid
