Subsequent Work

WARNING: This page is about a different variant/trim than selected.
  1. Install heat shield -1-  .

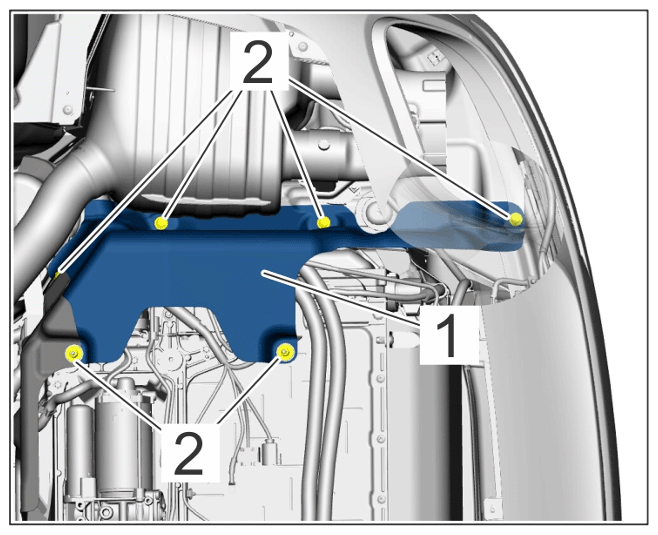

    G15823351Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Heat shield for high-voltage battery

    1. 1.1 Tighten screws -2-  .
  2. Install left tailpipe cover.

    > 263519 REMOVING AND INSTALLING TAILPIPE COVERS

  3. Install rear underbody cover.

    > WM, 519419 REMOVING AND INSTALLING COVER FOR REAR UNDERBODY

  4. Check coolant level of low-temperature circuit and correct it if necessary.
