Preliminary Work

WARNING: This page is about a different variant/trim than selected.
  1. Remove rear underbody cover.

    > WM, 519419 REMOVING AND INSTALLING COVER FOR REAR UNDERBODY

  2. Remove left tailpipe cover.

    > 263519 REMOVING AND INSTALLING TAILPIPE COVERS

  3. Remove heat shield -1-  .

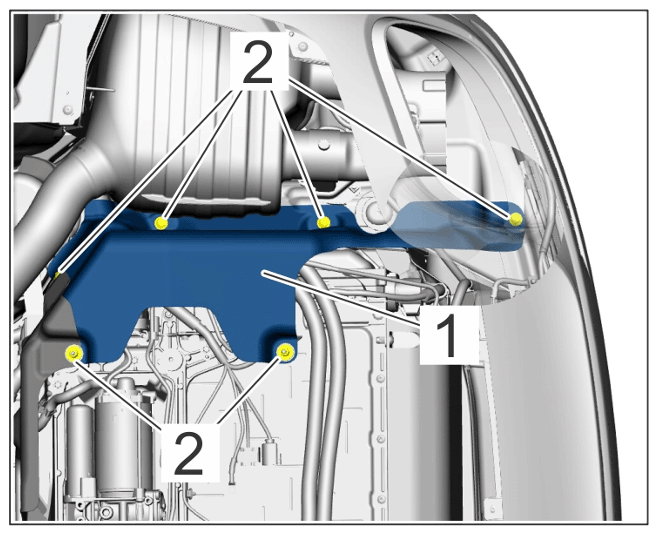

    G15823349Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Heat shield for high-voltage battery

    1. 3.1 Unscrew screws -2-  .
    2. 3.2 Remove heat shield -1-  by pulling it downwards.
