Removing Low-Temperature Circuit Temperature Sensor (TW 7)
WARNING: This page is about a different variant/trim than selected.
- Loosen holder -1-
.
- 1.1 Screw off nut -2-
.
- 1.2 Unscrew and remove screws -3-
.
- 1.3 Move holder -1-
so that the low-temperature circuit temperature sensor is accessible. Make sure not to damage any lines.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Bracket
- Remove low-temperature circuit temperature sensor -1-
.
- 2.1 Release and disconnect cable plug -2-
.
- 2.2 Pull off retaining clip -3-
.
- 2.3 Pull low-temperature circuit temperature sensor -1-
out of line connection -4-
.
- 2.4 Catch escaping coolant and close off line connection using a suitable stopper.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

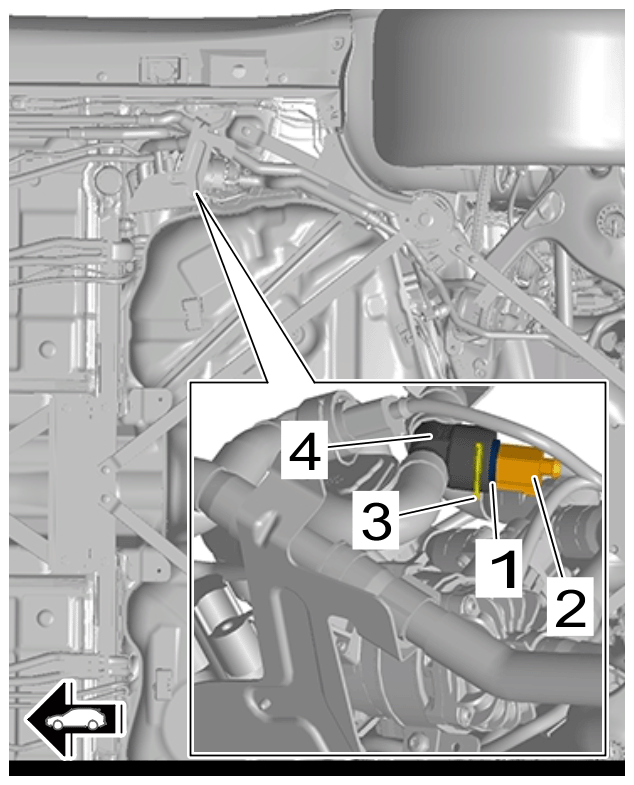

Low-temperature circuit temperature sensor (TW 7)
