Removing Low-Temperature Circuit Temperature Sensor

WARNING: This page is about a different variant/trim than selected.
WARNING: Hot fluid
  • Danger of scalding

    → Avoid contact with hot fluid.

    → Wear personal protective gear.

  1. Loosen holder -1-  .

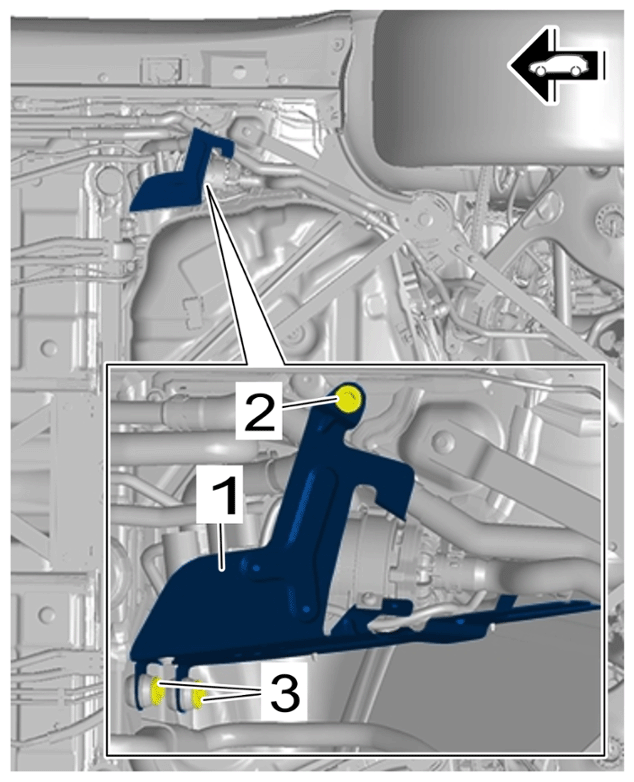

    G15823344Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Holder

    1. 1.1 Unscrew nut -2-  .
    2. 1.2 Unscrew screws -3-  .
    3. 1.3 Move holder -1-  so that the low-temperature circuit temperature sender is accessible. Make sure not to damage any lines.
  2. Remove low-temperature circuit temperature sender -1-  .

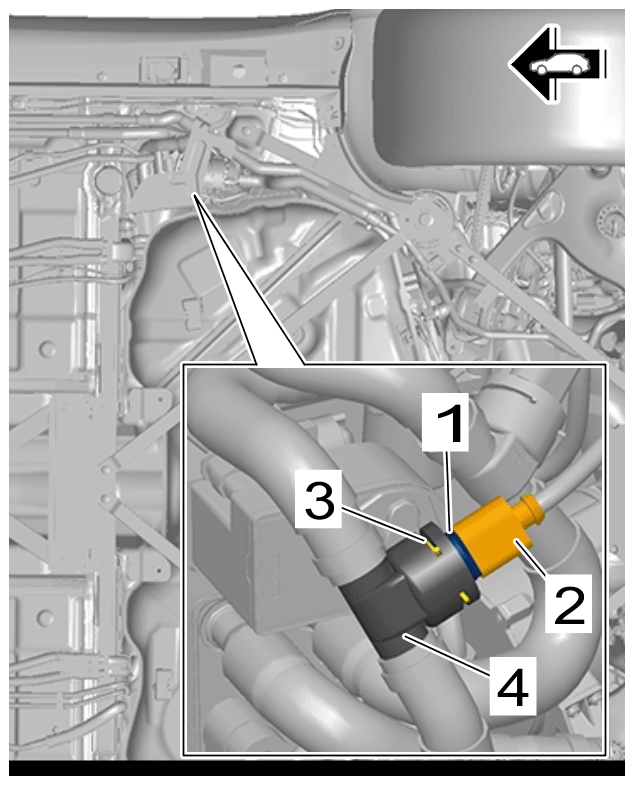

    G15823345Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Low-temperature system temperature sender (TW 10)

    1. 2.1 Release and disconnect cable plug -2-  .
    2. 2.2 Pull off retaining clip -3-  .
    3. 2.3 Pull low-temperature circuit temperature sender -1-  out of line connection -4-  .
    4. 2.4 Catch escaping coolant and close off line connection -4-  using a suitable stopper.
