Installing Low-Temperature Circuit Temperature Sensor

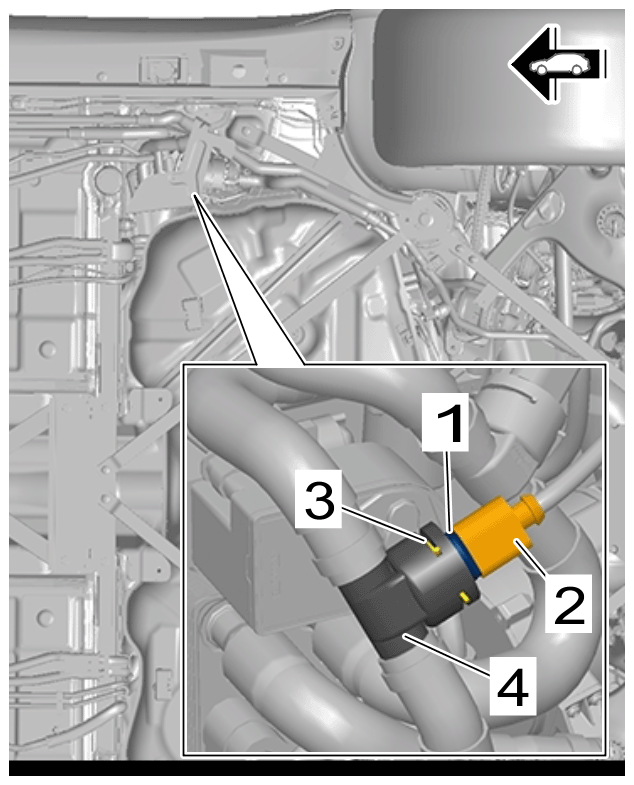

1. 1.1 Insert low-temperature circuit temperature sensor -1-  in line connection -4-  .
2. 1.2 Insert retaining clip -3-  and check that it is fitted correctly.
3. 1.3 Connect and lock cable plug -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Low-temperature circuit temperature sensor

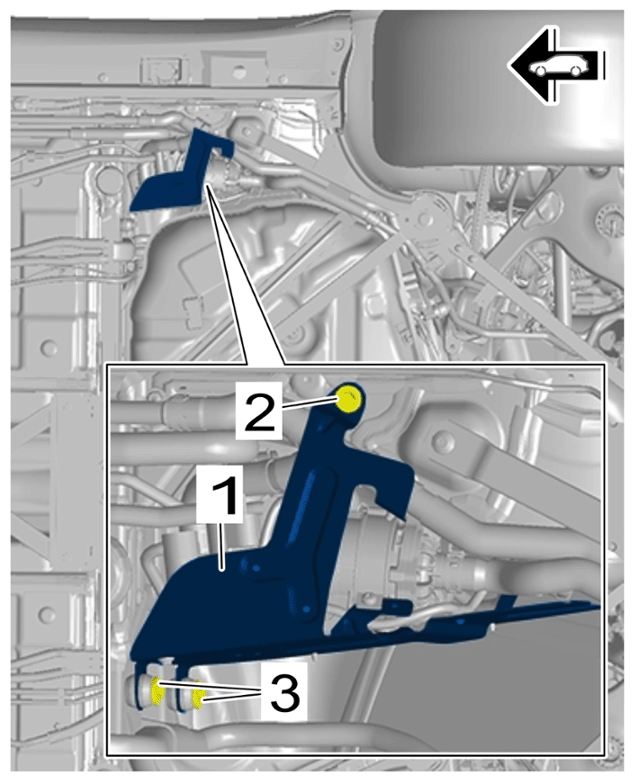

1. 2.1 Move holder -1-  into installation position.
2. 2.2 Fit nut -2-  and screws -3-  .
3. 2.3 Tighten screws -3-  .

   > Tightening torque 8 Nm (6 ftlb.)

4. 2.4 Tighten nut -2-  .

   > Tightening torque 6 Nm (4.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bracket
